SPECIFICATIONS
|

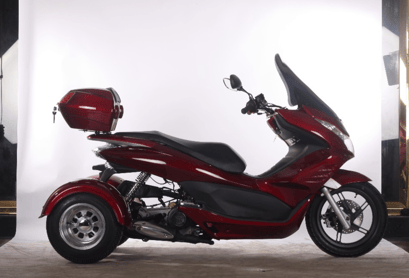

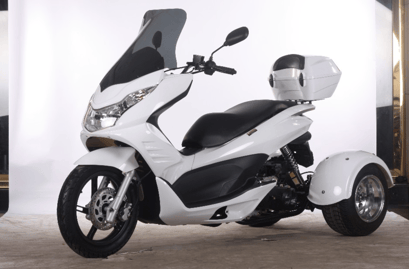

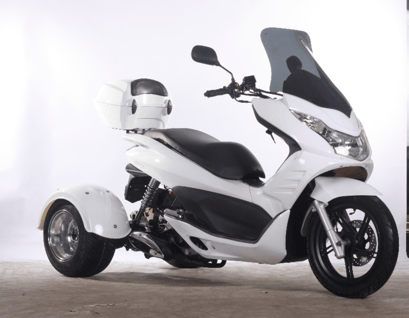

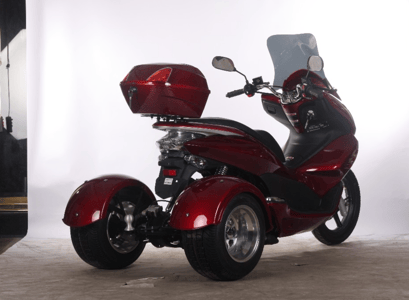

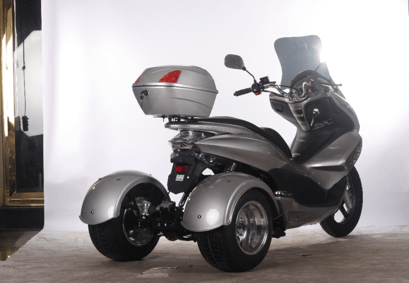

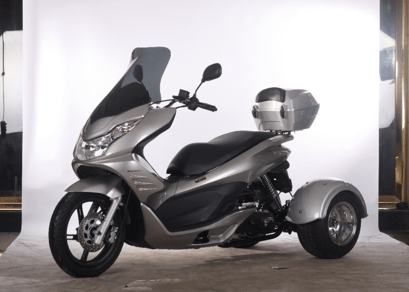

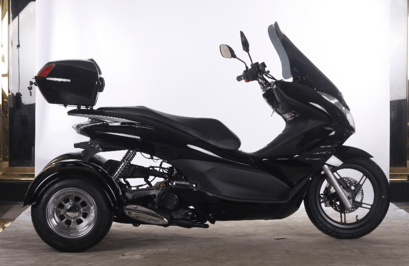

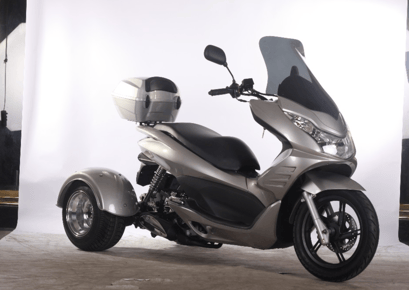

Model No: |
Q6 (PST50-17) |
| Engine Type | single cylinder, 4 stroke |
| Cooling | Air Cooled |
| Drive System | BELT/CHAIN |
| Piston Displacement | 49.5cc |
| Bore and Stroke | 1.51 inches x 1.63 inches |
| Compression Ratio | 10.5:1 |
| Maximum Power | 1.4/5500kw/r/min |
| Maximum Torque | 2.0/4500N.m./rpm |
| Starter | Electric / Kick |
| Length | 82.7 inches |
| Width | 40.1 inches |
| Height | 42.3 inches |
| Seat Height | 30.7 inches |
| Wheelbase | 61 inches |
| Ground Clearance | 5.1 inches |

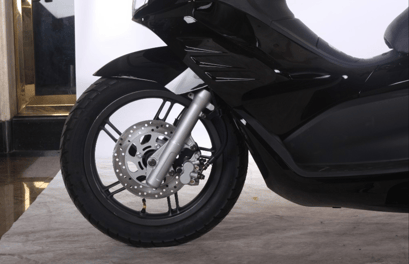

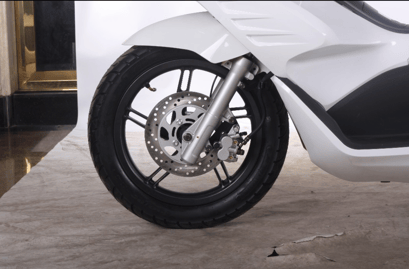

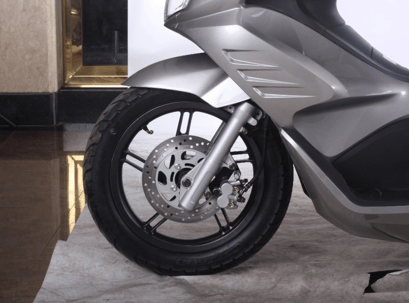

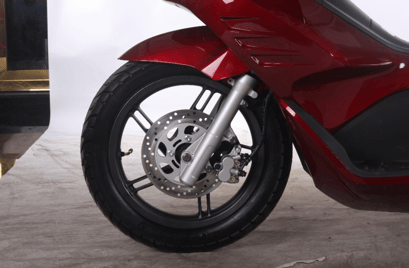

| Front Brake | Disc |
| Rear Brake | Disc |
| Front Tire | 90/90-14 |
| Rear Tire | 205 x 50-10 |
| Front Rim | 14 |
| Rear Rim | 10 |
| Ignition | CDI |
| Engine Oil Capacity | 0.75 Quarts |
| Maximum Speed | About 30mph (may vary depending on, road condition, rider weight etc. |
| Net Weight | 308.6 lbs |
| Gross Weight | 396.8 lbs |
| Weight Capacity | 441 lbs |
| Frame | Steel |
| Packing Size | 79.5 inches x 34.2 inches x 47.3 inches |
| Towing Capacity | 66 lbs |
| Fuel Capacity | 1.2 gal |

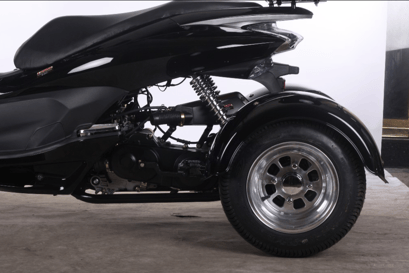

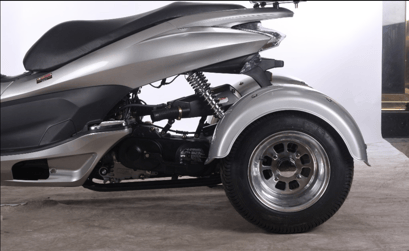

| Rear Suspension | Dual Shock |
| Accessories |
