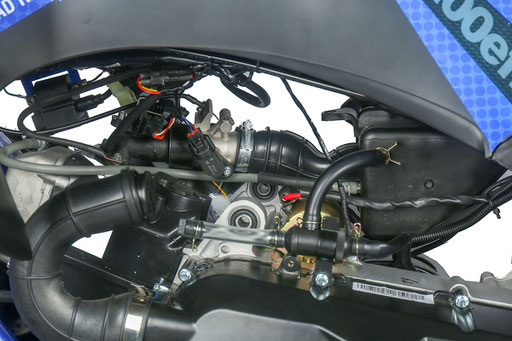

ENGINE
|
|
Engine Make / Type
|
Air-Cooled SOHC 4-Stroke 176cc
|
|
Top Speed
|
35MPH
|
|
Lubrication Type
|
Pressure and Hybrid Splash Lubrication
|
|
Max Torque
|
10N·m/6000r/min
|
|
Compression Ratio
|
9.5:1
|
|
Valve Configuration
|
2 Valve
|
|
TRANSMISSION & DRIVE
|
|
Drive Type
|
Fully Automatic
|
|
Gears
|
CVT – F,N,R
|
|
Clutching Type
|
Automatic Centrifugal Dry
|
|
Drive line Type
|
Chain
|
|
Starting System
|
Electric Start
|
|

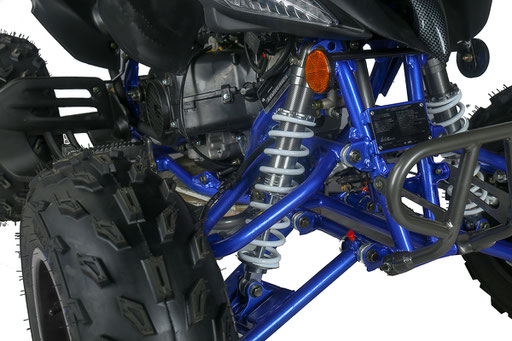

SUSPENSION
|
|

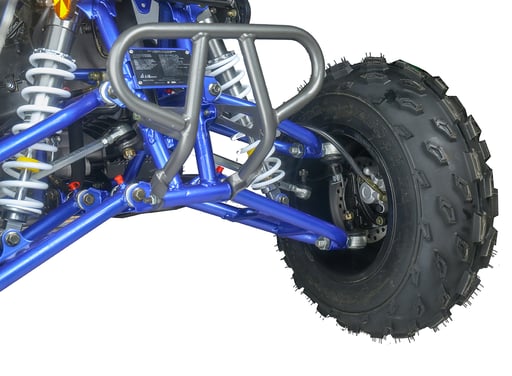

Front Suspension
|
Single A-Arm
|
|

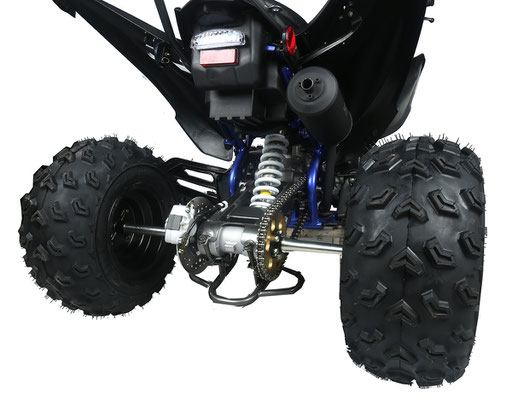

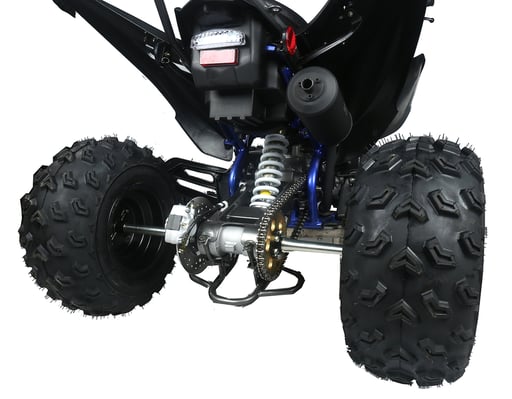

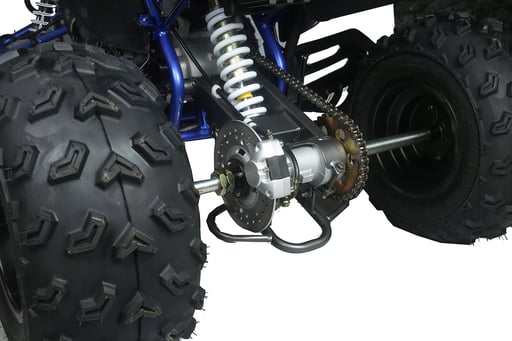

Rear Suspension
|
Rear Single Shaft Swing Arm
|
|
BRAKES, TIRES & WHEELS
|
|
Front/Rear Brakes
|
Disc Brakes
|
|
Front Tire
|
20×7-10
|
|
Rear Tire
|
19×10-9
|
|
Front/Rear Tread
|
820mm / 810mm
|
|
MEASUREMENTS & DIMENSIONS
|
|
ATV Dimensions
|
63'(L) x 41'(W) x 41'(H)
|
|
Ground Clearance
|
5.9in
|
|
Wheelbase
|
45in
|
