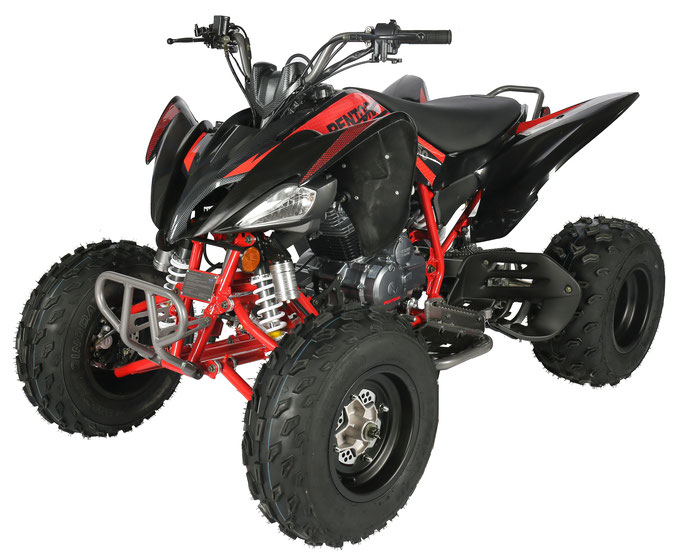

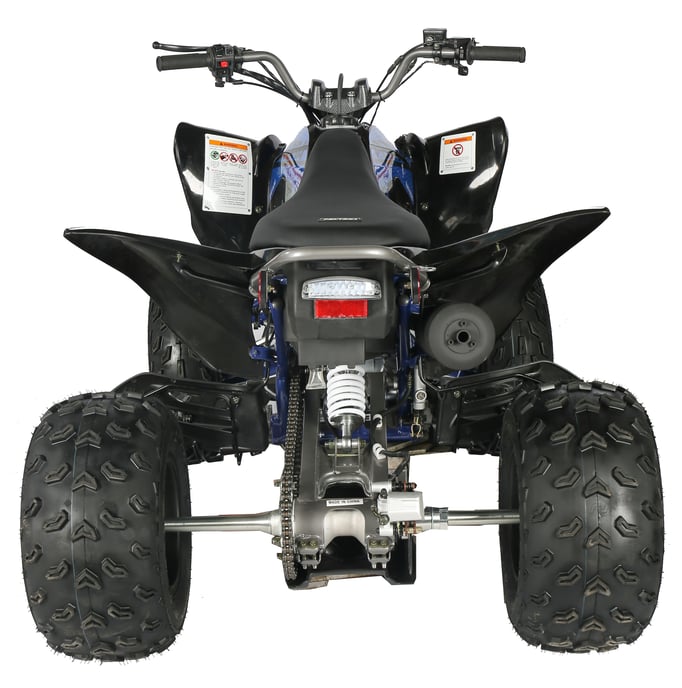

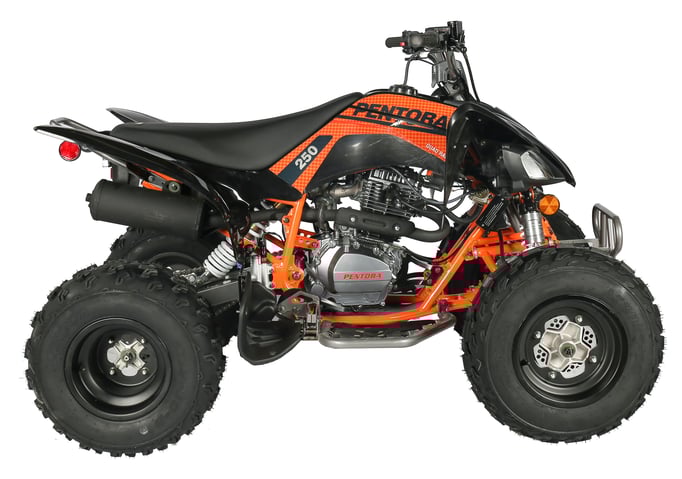

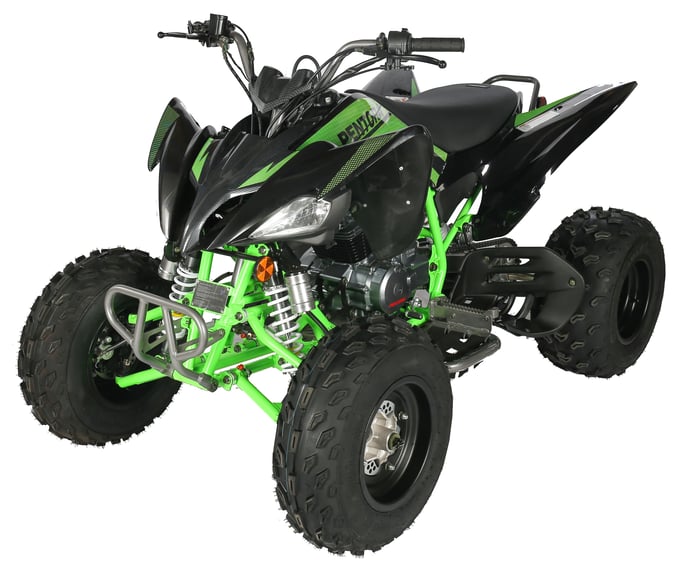

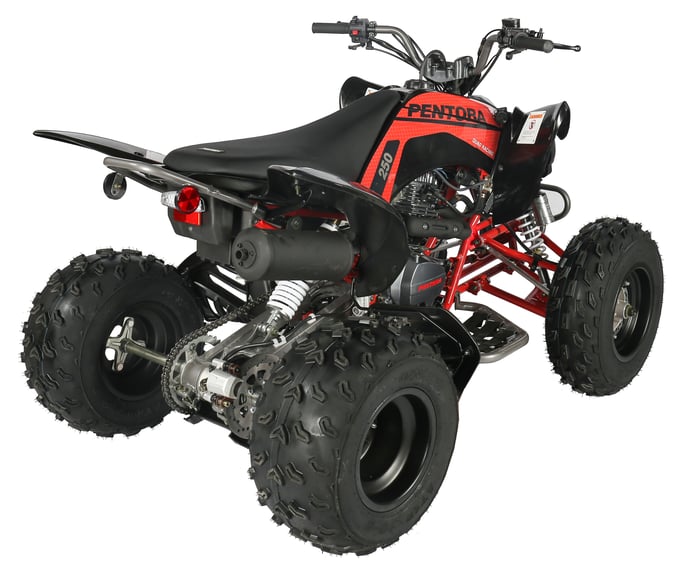

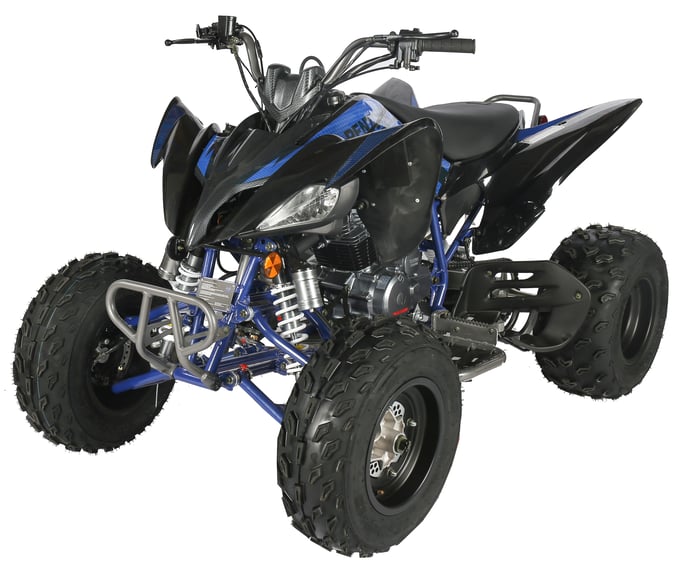

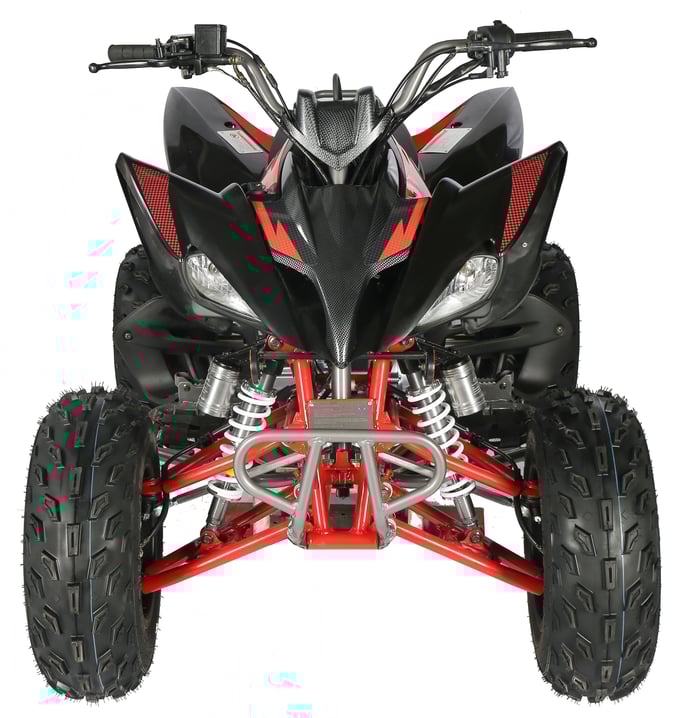

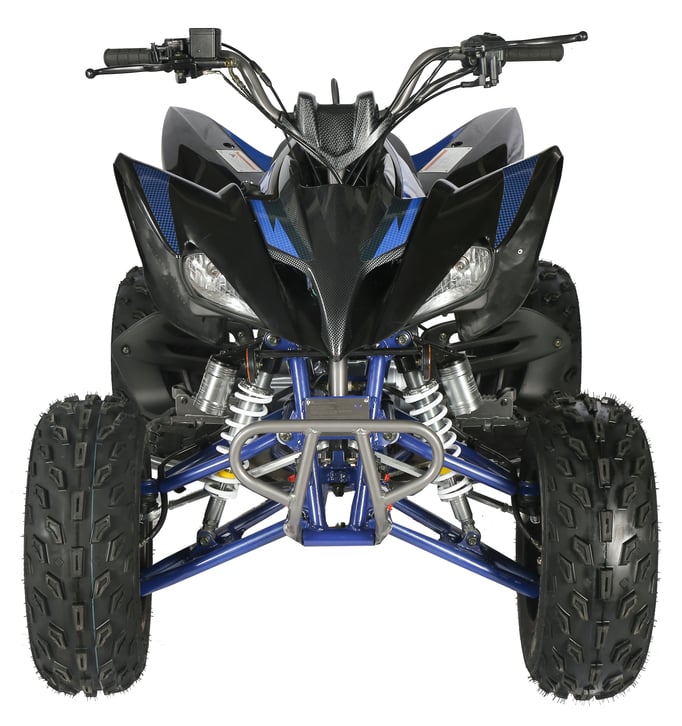

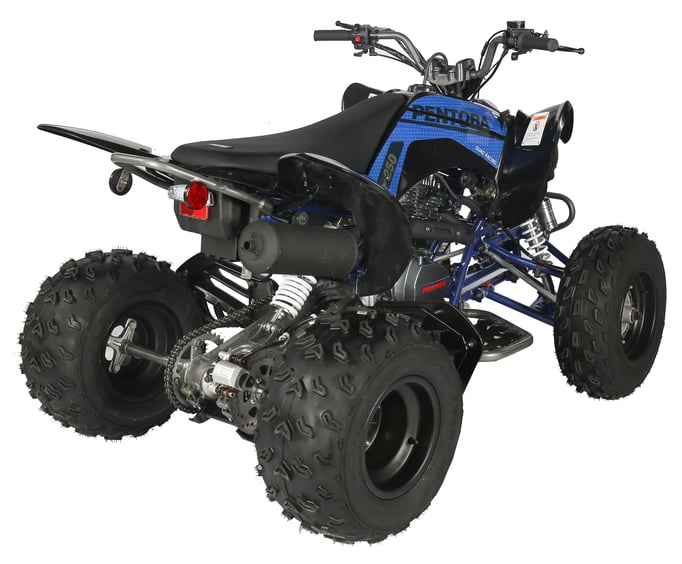

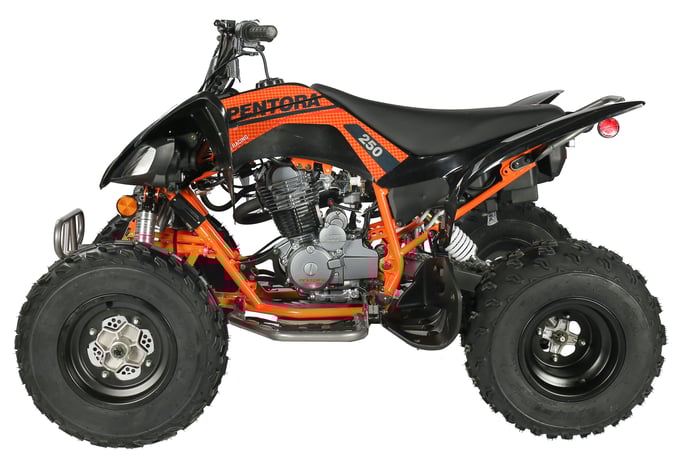

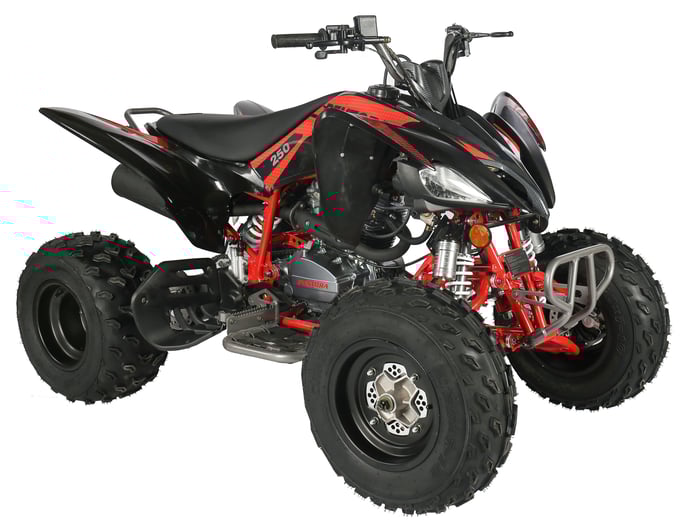

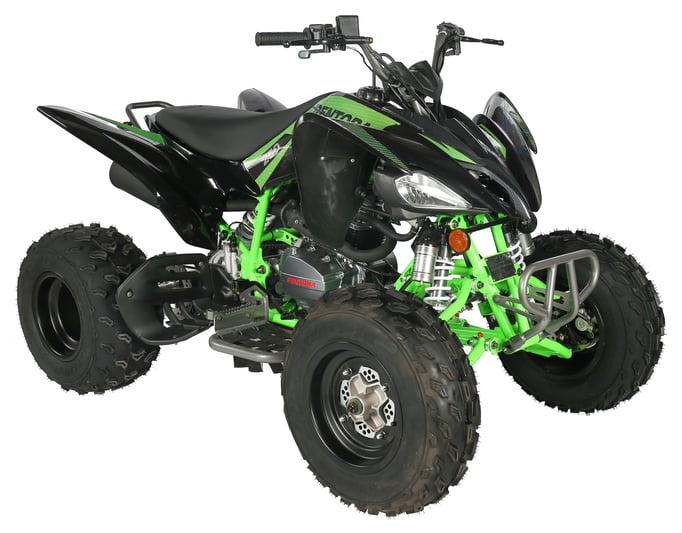

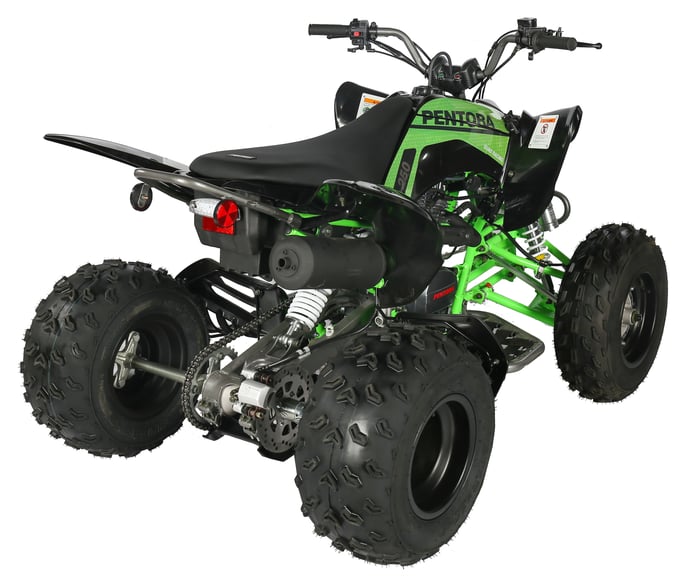

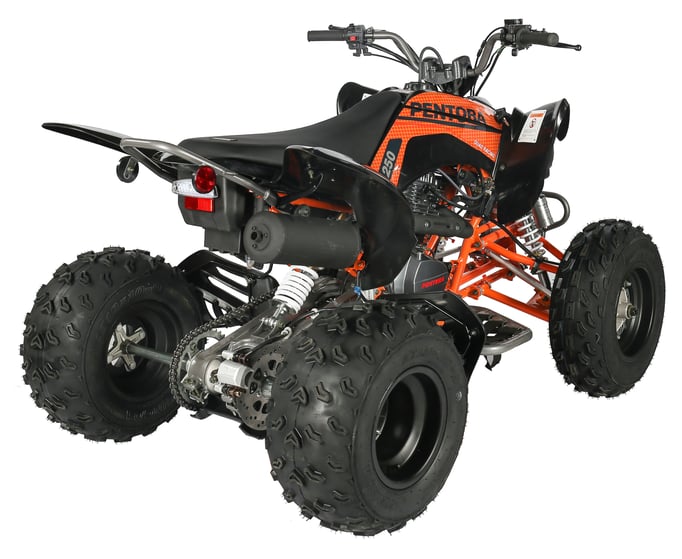

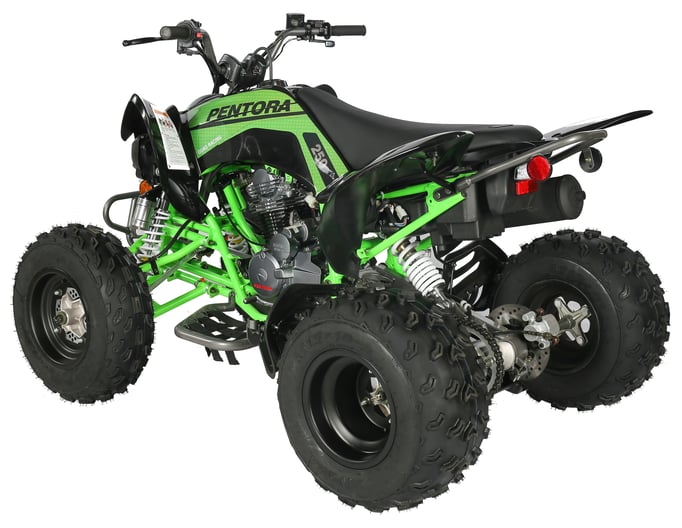

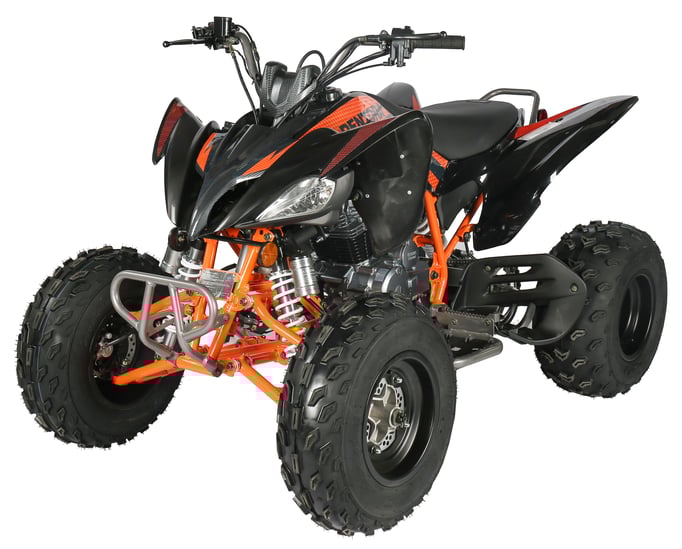

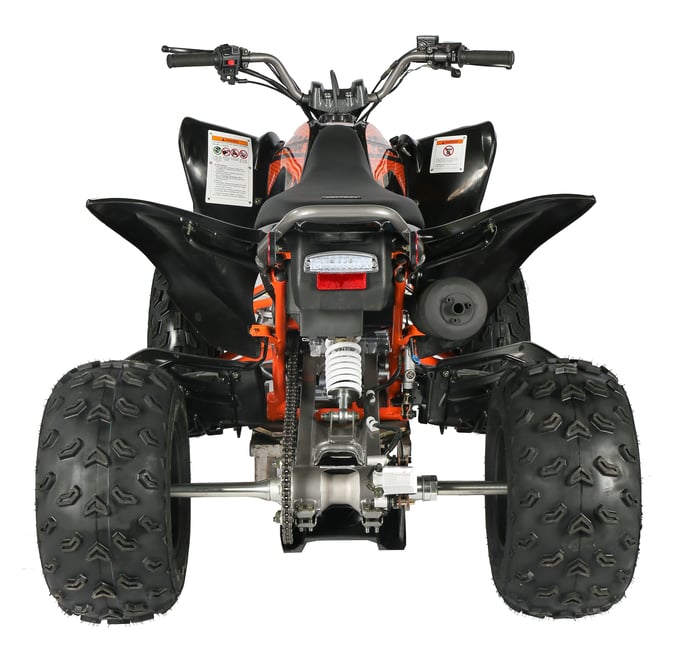

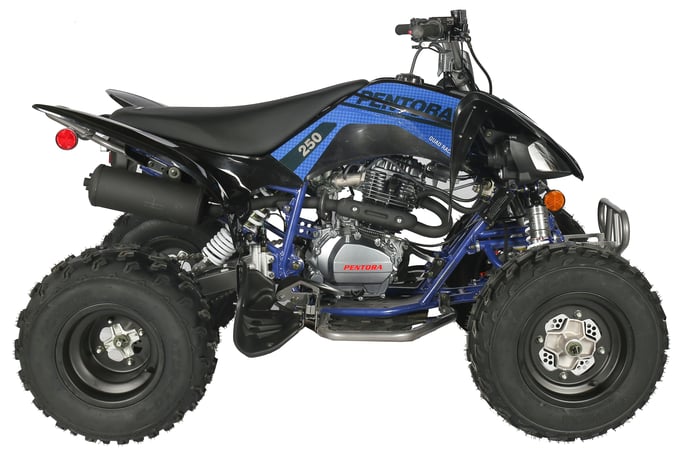

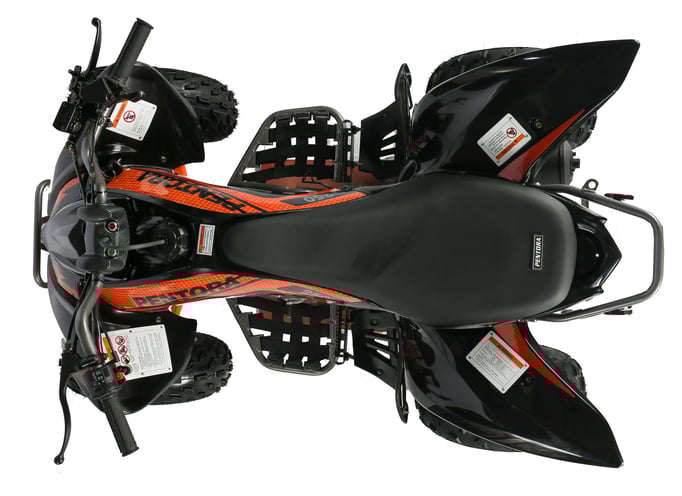

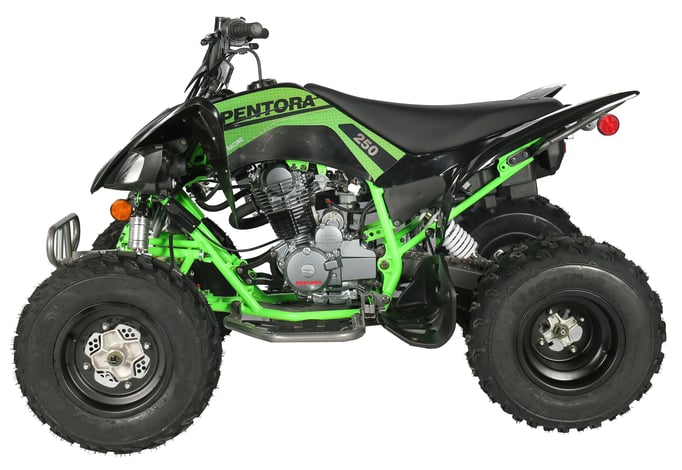

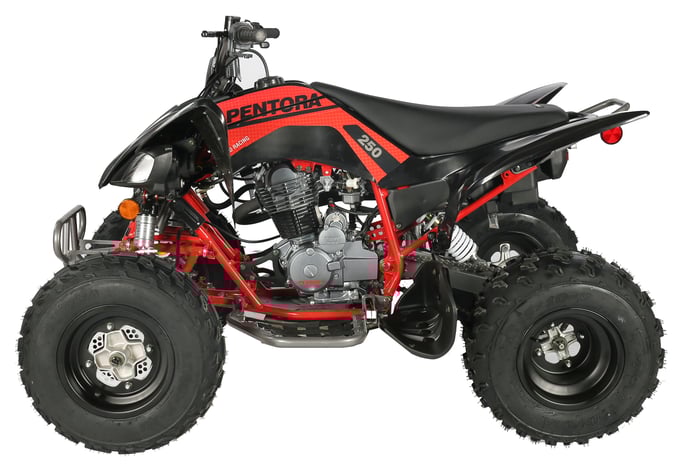

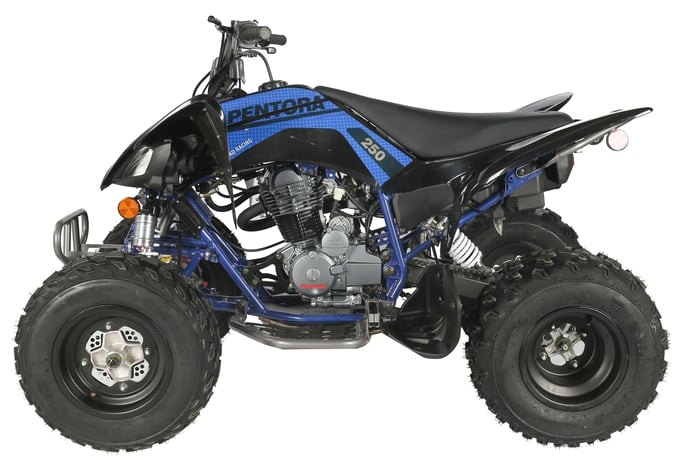

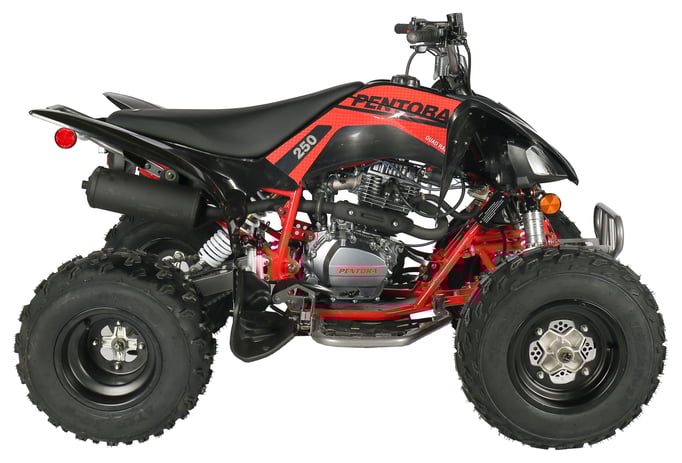

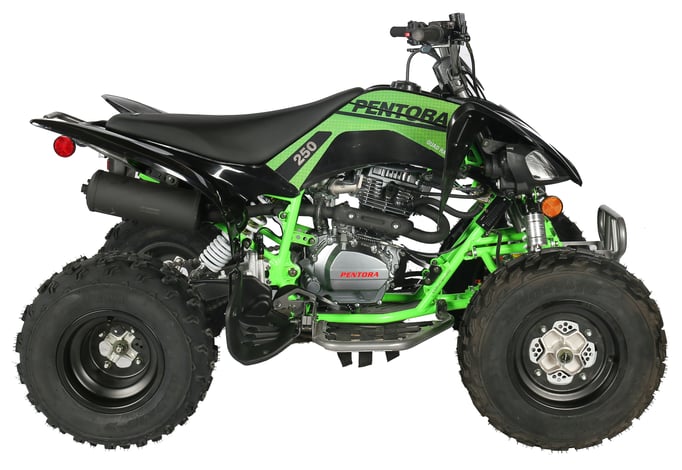

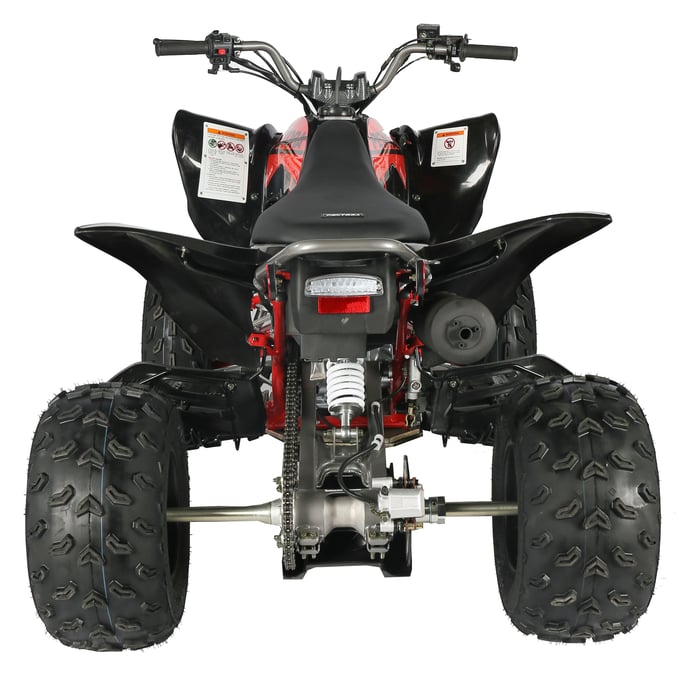

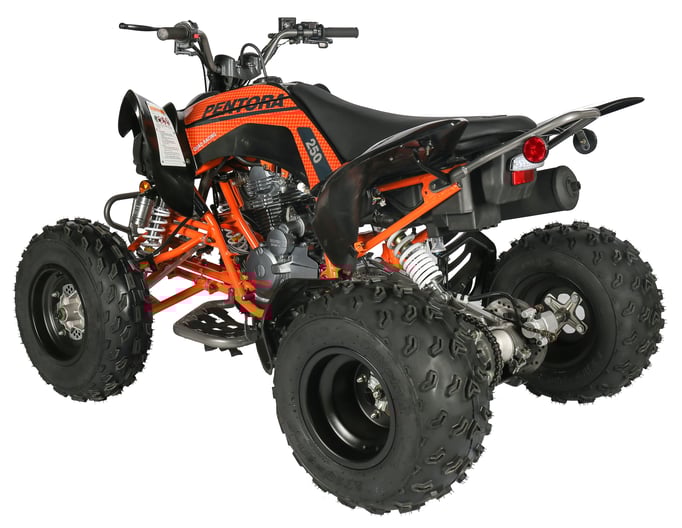

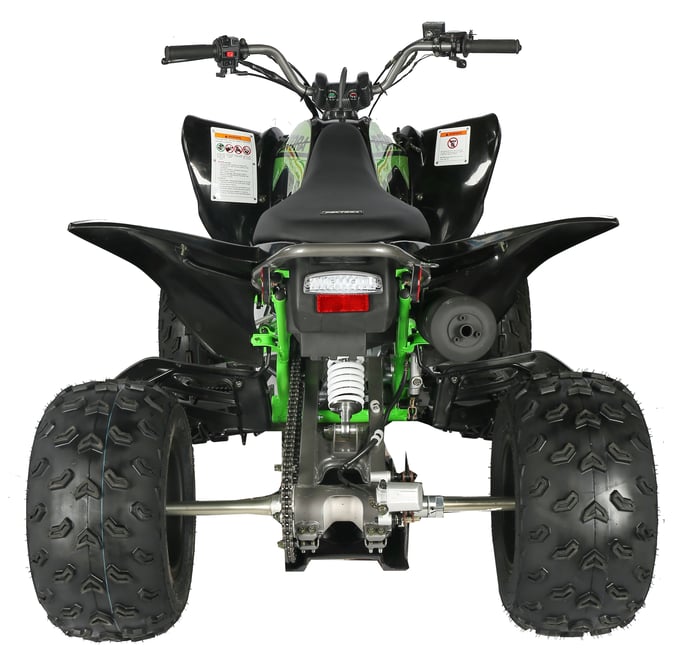

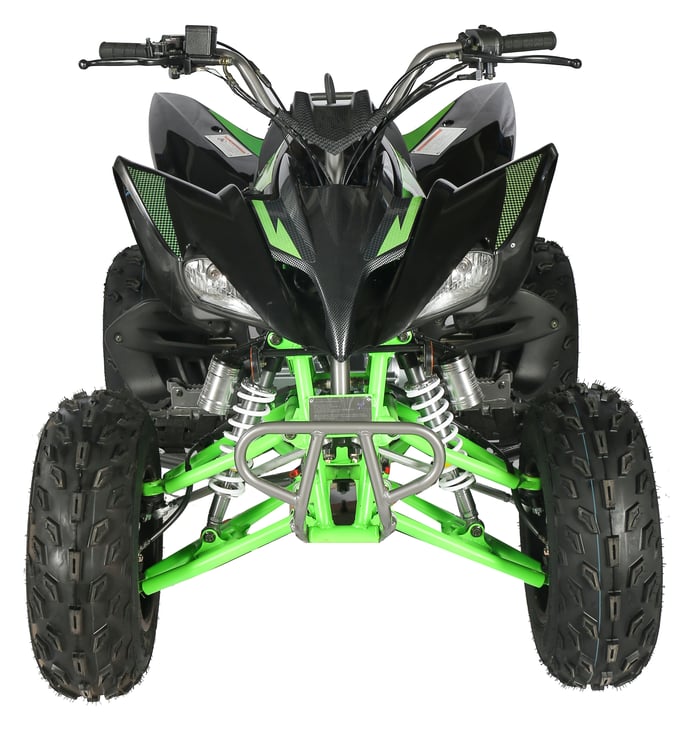

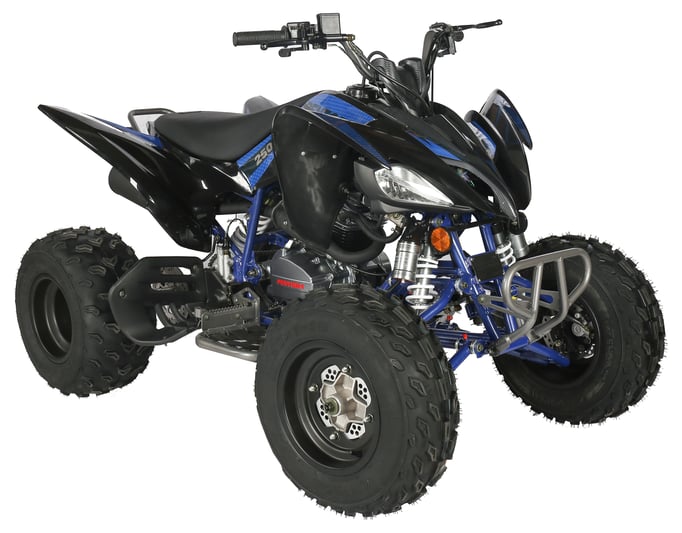

PENTORA 250cc MANUAL CLUTCH






Y65-Y250



NO.

ITEM

TECHNICAL SPECIFICATION



1.

SPECIFICATION

PARTS SPECIFICATION

L×W×H

1625*1060*1065

2.

WHEELBASE

1090±20mm

3.

FRONT WHEELBASE

820mm

4.

REAR WHEELBASE

830mm

5.

MINIMUM GROUND CLEARANCE

135±15mm

6.

SEAT HEIGHT

790±15 mm

7.

RIDE HEIGHT

225mm

8.

HANDLE HEIGHT

1000mm

9.

PACKING SIZE

1460*880*860mm 62pcs/40HQ

10.

MINIMUM TURNING CIRCLE DIAMETER

5900±500mm

11.

TURNING ANGLE

<45°

12.

RATED LOAD

100kg

13.

NET WEIGHT

149kg

14.

GROSS WEIGHT (WITH PACKING)

177kg

15.

F&R BRAKE

F&R HYDRAULIC DISC

16.

F&R BRAKE OPERATION TYPE

FRONT HAND BRAKE, REAR FOOT BRAKE

17.

F&R RIM

10*5.5AT/9*8.0AT

18.

F&R TYRE

AT20*7.0-10/AT19*10-9

19.

TRANSMISSION

CHAIN

20.













TECHNICAL SPECIFICATION



FUEL TANK

9L`

21.

22.

BATTRY

12V/7HA `

23.

MAXIMUM SPEED

70km/h

24.



SPECIFICATION

STARTING PERFORMANCE

15S

25.

CLIMBING PERFORMANCE

21°

26.

PARKING PERFORMANCE

18°

27.

EMISSION INDEX



CO (%)

3.8

HC(PPm)

800

28.

         db.(A)

82 dB(A)

29.

ENGINE SPECIFICATION



MODEL

LC166FMM

30.

TYPE

SINGLE CYLINDER250cc air cooler 2 valves4-STROKE

31.

BRAND

LONCIN

32.

BRORE×STROKE

65.5x66.2mm

33.

capacity

223mL

34.

COMPRESSION RATIO

9.0:1

35.

MAX.POWER

121±5%kW /75001±5%rpm

36.

MAX.TORQUE

171±5%N · m /60001±5%rpm

37.

Min  no load speed

15001±10% r /min

38.

 min fuel consumption rate

354g / kw.h

39.

Fuel no.

RQ90

40.

CLUTCH METHOD

Manual

41.

Start

Electrical start

42.

cdi

C.D.I

43.

PARTS SPECIFICATION

carb

PZ30

44.

Spark plug

D8TC

45.

Front light

12V18-18W

46.











TECHNICAL SPECIFICATION

Max speed

70km/h

47.

Start time

15S

48.

break



前轮力和

60%

前轮力差

55%

后轮力和

20%

后轮力差

24%

49.

CLIMBING PERFORMANCE

21°°

50.

PARKING PERFORMANCE

18%

51.

EMISSION INDEX

CO (%)

≤3.8

HC(PPm)

≤800

52.

db(A)

82 dB(A)

53.

Starting accelerationS

≤8

54.

Speed accelerationS

≤8

55.

Parts spec

Tank capacity

9L

56.

Fr. & re suspension

Oil dumper

57.

Fr. &re suspension

L=350 m m /L=390 m m






Download
Service manual for Pentora 250.pdf
Adobe Acrobat Document 27.0 MB

AGE REQUIREMENT:  (G16) 16 year old and up
