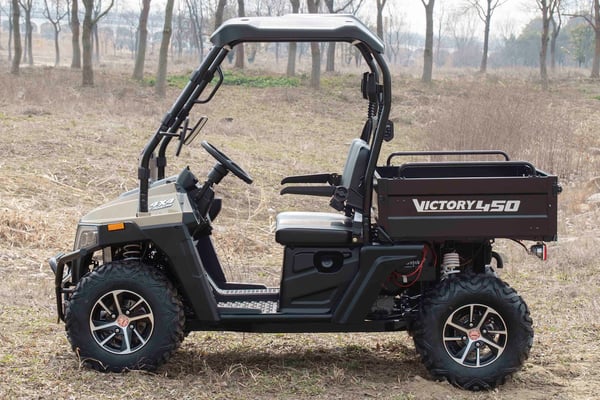

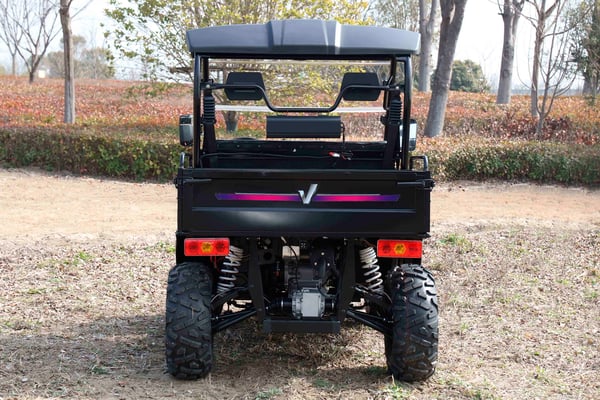

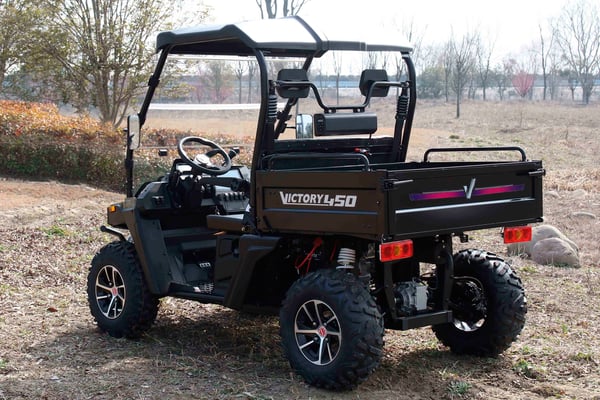

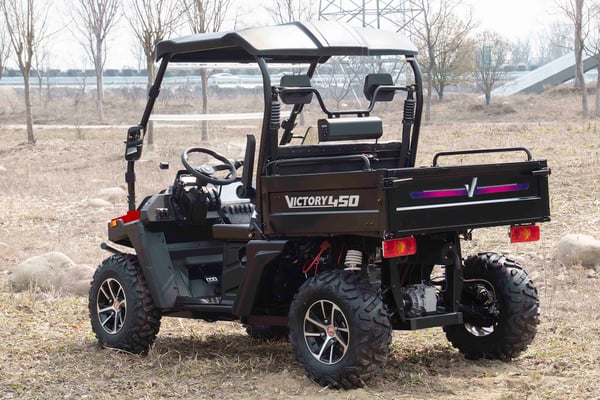

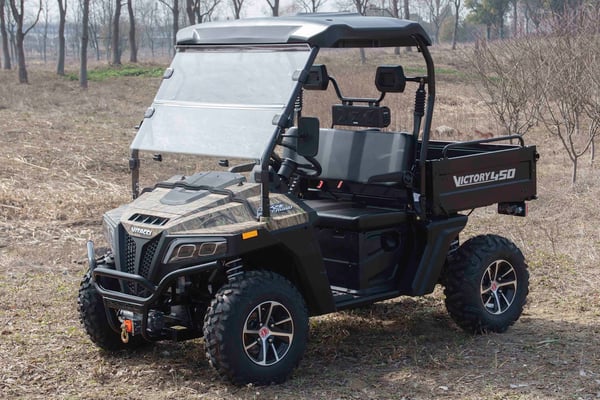

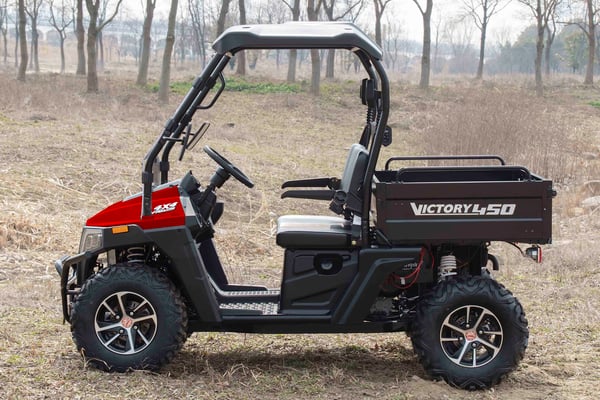

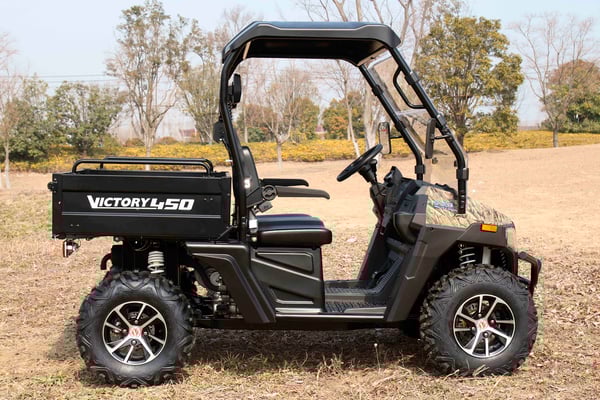

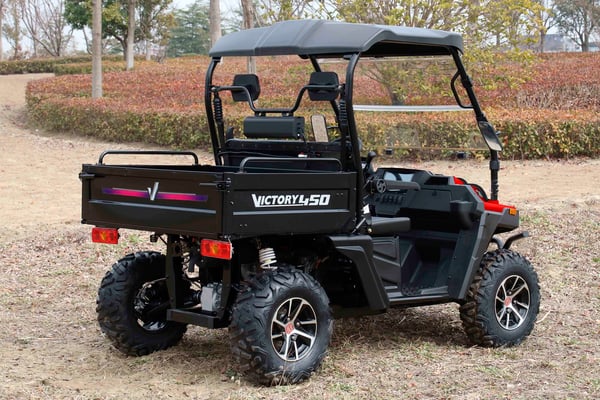

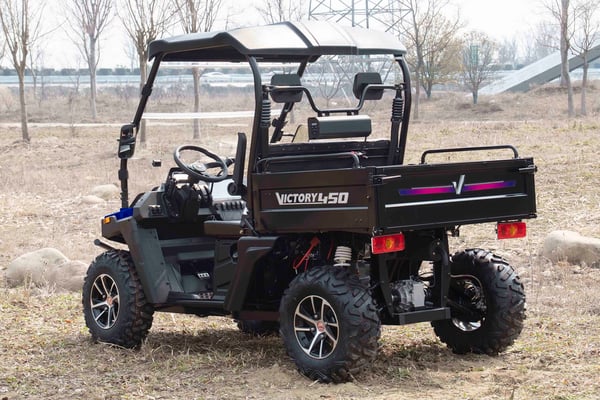

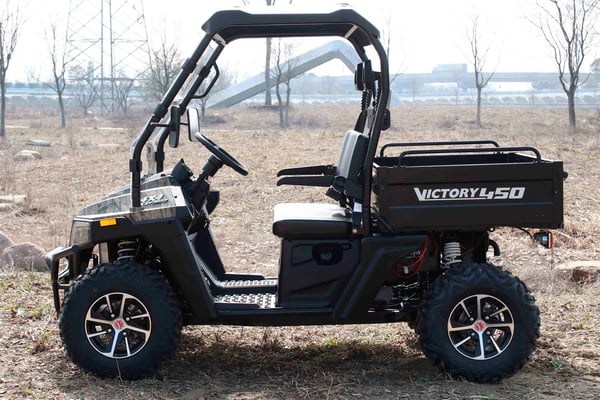

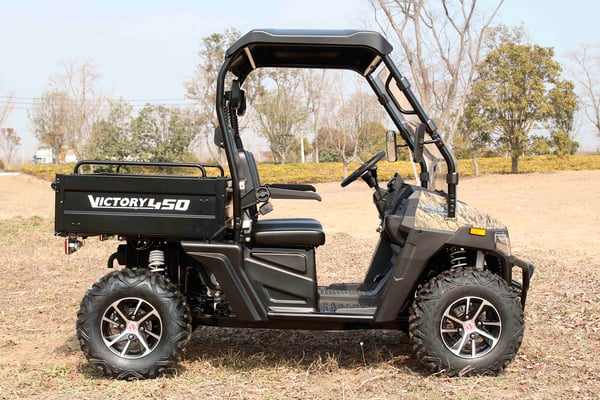

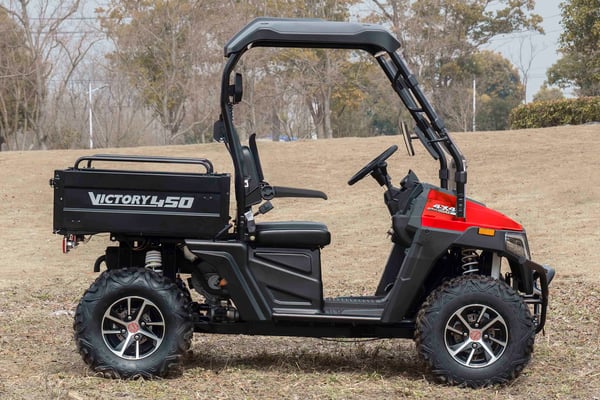

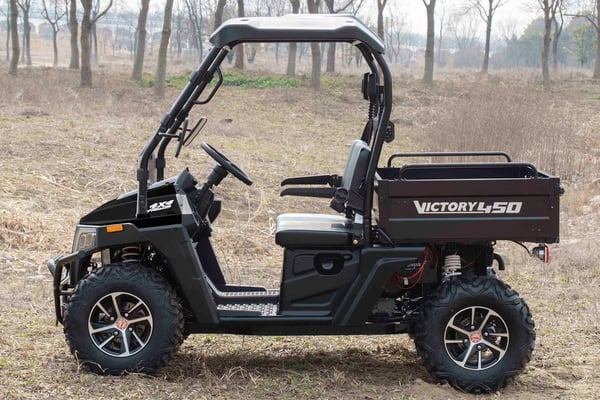

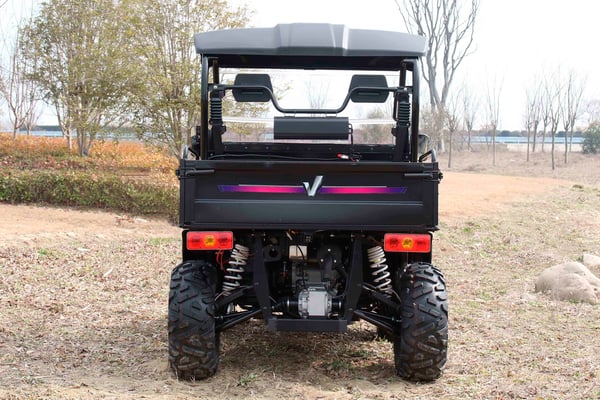

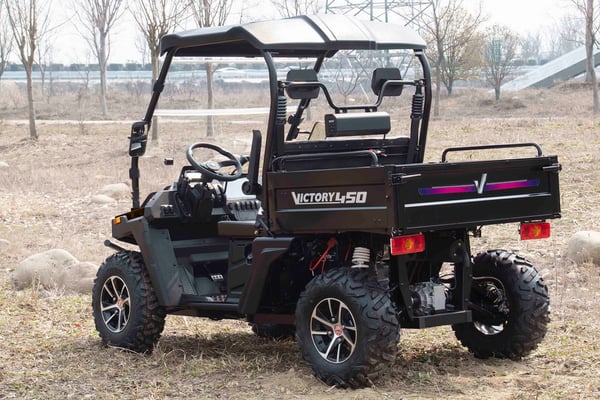

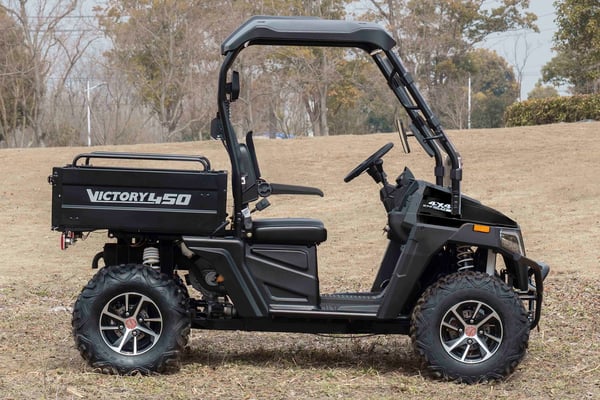

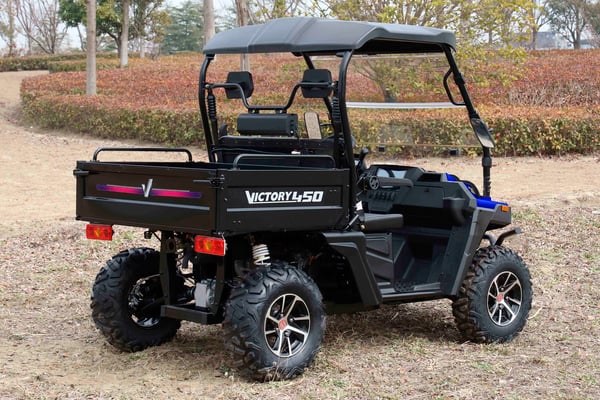

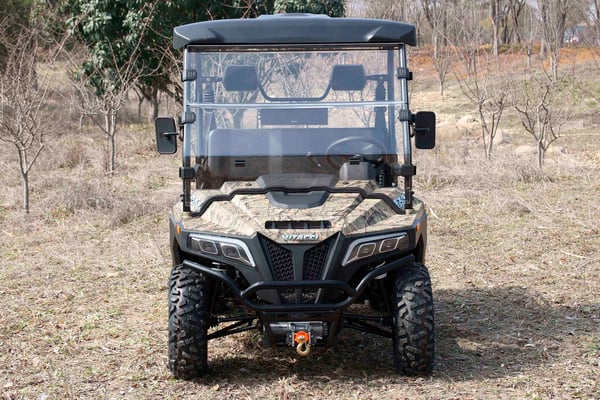

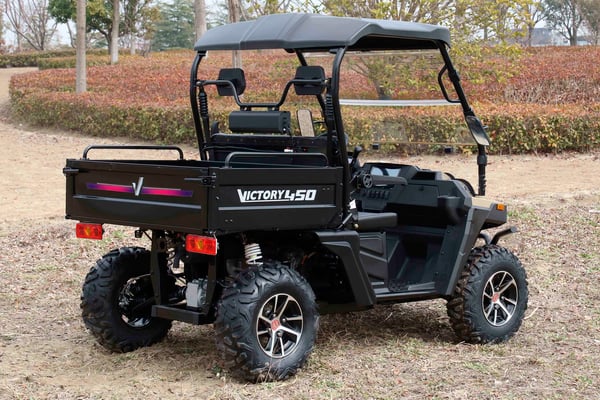

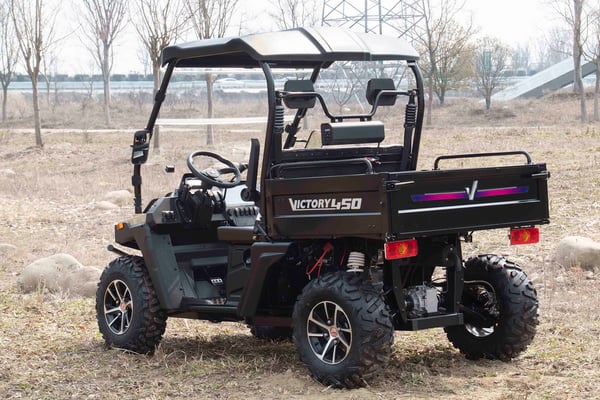

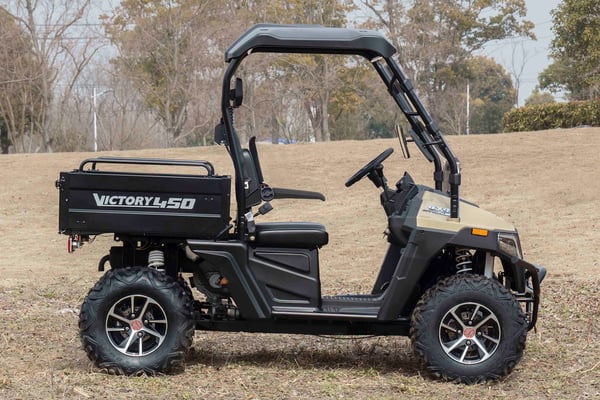

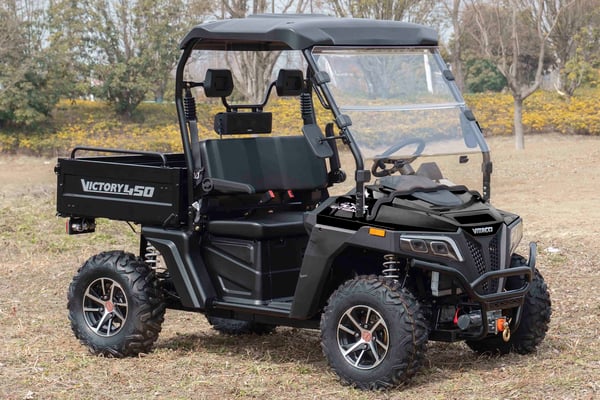

Victory 450 Pro Specification:



Vehicle Specification:

Length × Width ×Height                                                                                    2620×1440×1930mm

Wheelbase                                                                                                                  1840mm

Minimum Ground Clearance                                                                          235mm

Seat High                                                                                                                     830mm

Weight With Full Equipment                                                                         1135 Lbs

Rear Cargo Box Load Capacity                                                                       330 Lbs

Top Speed                                                                                                                   70km/h

Front Brake Type                                                                                                     Hydraulic Disc Brake

Rear Brake Type                                                                                                      Hydraulic Disc Brake

Parking Type                                                                                                             Hand Brake

Drive Mode                                                                                                               4WD, Front and Rear Differential With Lock, Engine Balance Shaft

Control Way                                                                                                              Steering Wheel

Front Suspension Type                                                                                      McPherson Independent Suspension

Rear Suspension Type                                                                                        Dual A-ARM Independent Suspension

Tire Type                                                                                                                     Front AT25×8-12 / Rear AT25×10-12

Dump Bed Size                                                                                                      930×1270×380mm Dump 35°





Engine Specification:

Engine Type                                                                                                              Single cylinder, four stroke, water cool, overhead camshaft, EFI

Cylinder Volume                                                                                                    391ml

Compression Ratio                                                                                               10:01

Fuel System                                                                                                              Electronic Fuel Injection

Ignition Way                                                                                                            Electric Start

Transmission Way                                                                                               CVT, Belt

Max Power and Crankshaft Speed kW/(RPM)                                   20kW/ 6500—7000 r/min

Max Torque and Crankshaft Speed  N.m/(RPM)                              30N.m/5000 r/min

Lubrication Oil                                                                                                        SAE 15W-40

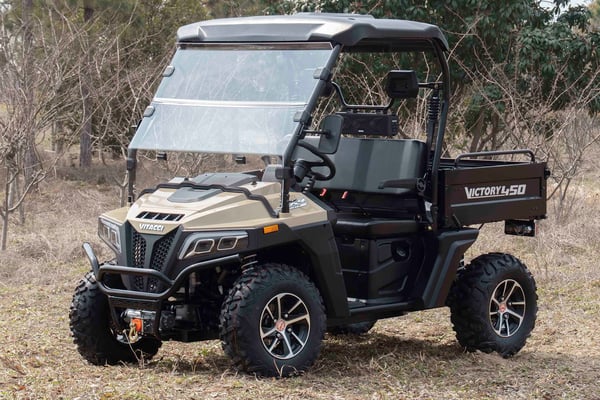

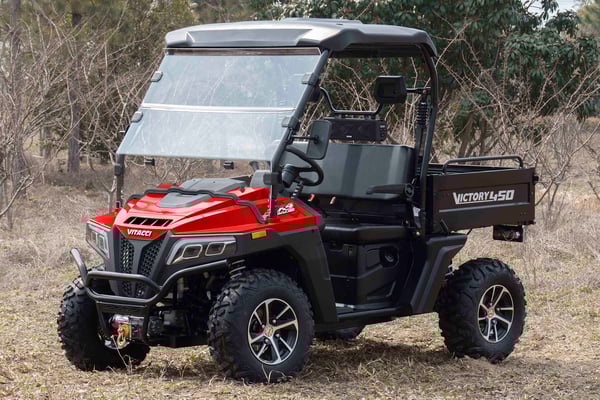

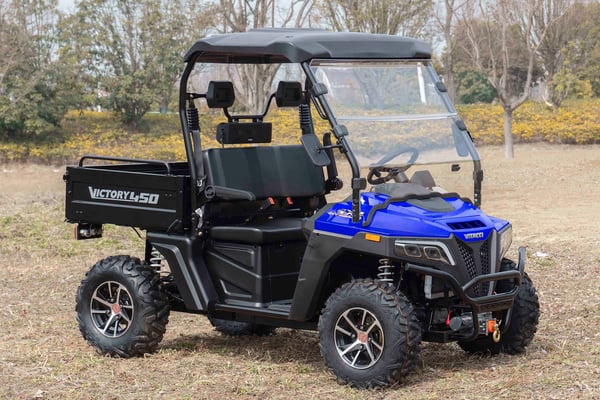

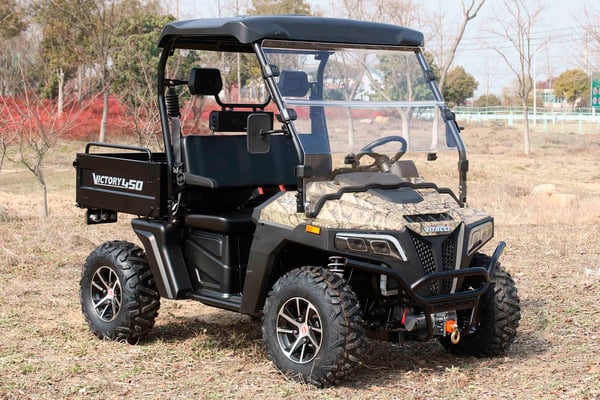

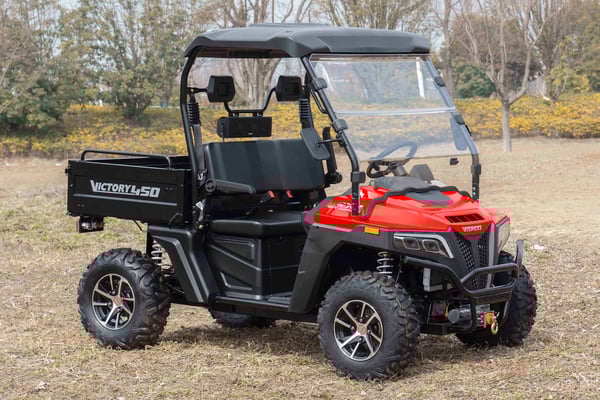

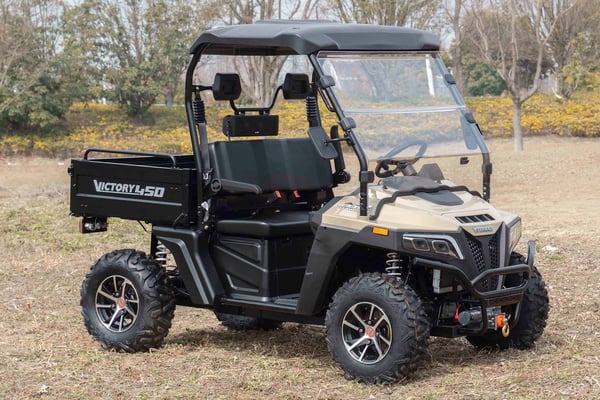

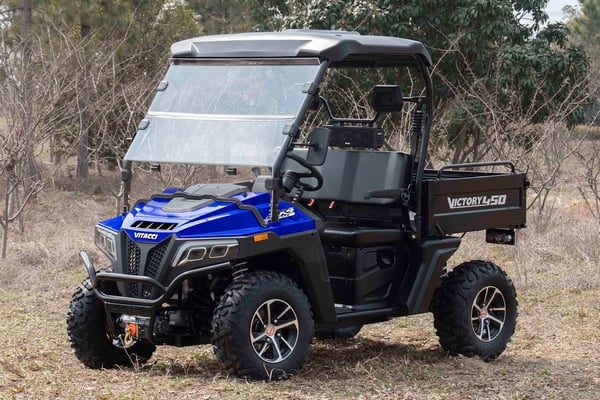

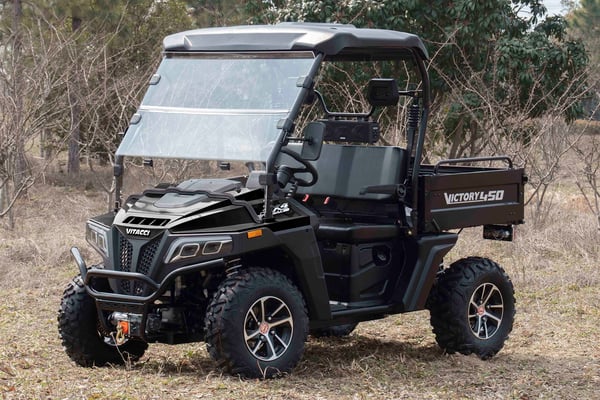

Color Option                                                                                                             Camouflage, Red, Blue, Black, Quick Sand

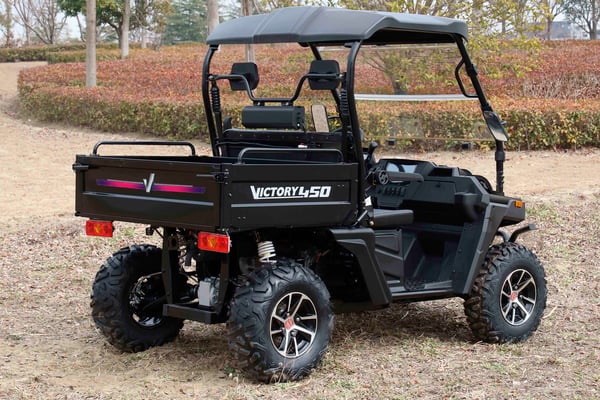

VICTORY 450 PRO (DUMP BED)-Assembly


Download
Victory 450 PRO_SPARE PARTS MANUAL.pdf
Adobe Acrobat Document 551.6 KB
Download
Victory 450 WEARING SPARE PARTS LIST.xls
Microsoft Excel Table 22.2 KB

Download
Radio Manual
DX_manual-20221102.pdf
Adobe Acrobat Document 19.3 MB

Download
Victory 450 Maintenance Manual.pdf
Adobe Acrobat Document 17.4 MB
