Engine and transmission
|
Displacement（cc）
|
168.9ml
|
|
Engine type
|
1P61QMK
|
|
Engine mode
|
1-cylinder/4-stroke/2-valve
|
|
Bore x stroke(mm)
|
61*57.8mm
|
|
Max.power
|
8.3kW/7500rpm
|
|
Max.torque
|
11.5N.m/6000rpm
|
|
Compression ratio
|
9.5:1
|
|
Fuel system
|
Carburetor
|
|
Valve train
|
SOHC
|
|
Ignition
|
C.D.I.
|
|
Starter
|
Electric & Kick
|
|
Lubrication system
|
Pressure splash lubrication
|
|
Cooling system
|
Forced-air-cooled
|
|
Gear shifting type
|
Automatic CVT
|
Transmission type
final drive
|
V-Belt
|
|
Clutch type
|
Automatic
|
|
Physical measures
|
Dry weight（kg）
|
90
|
|
Seat height（mm）
|
775
|
|
Overall length (mm)
|
1765
|
|
Overall width (mm)
|
686
|
|
Overall height (mm)
|
1045
|
|
Ground clearance (mm)
|
140
|
|
Wheelbase (mm)
|
1215
|
|
Chassis and dimensions
|
Frame type
|
Flat scooter
|
|
Front suspension
|
Telescopic forks
|
|
Front suspension travel (mm)
|
68
|
|
Rear suspension
|
Mono-shock-absorber
|
|
Rear suspension travel (mm)
|
40
|
|
Fr. tyre
|
3.50-10
|
|
Rr. tyre
|
3.50-10
|
|
Fr. Brakes
|
Disc
|
|
Fr. brakes diameter (mm)
|
180
|
|
Rr. brakes
|
Drum
|
|
Rear brakes diameter (mm)
|
110
|
|
Other specifications
|
Top speed（MPH）
|
60.89
|
|
Max.loadage (kg)
|
75*2=150kg
|
|
Fuel capacity(L)
|
4.5
|
|
Battery
|
12V6Ah(YTX7A-BS)
|
|
|

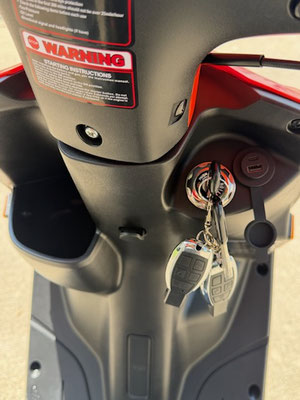

USB， ALARM ,REAR BOX
|
HAVE
|
