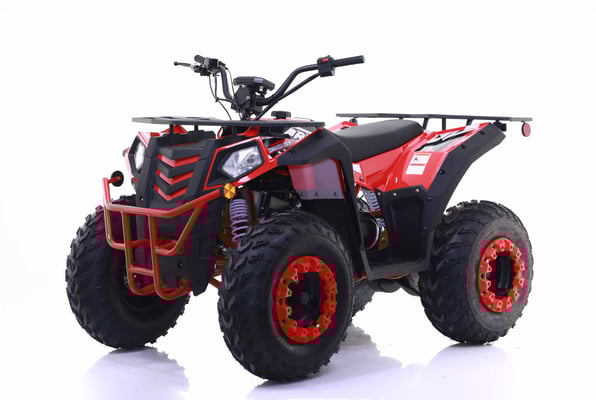

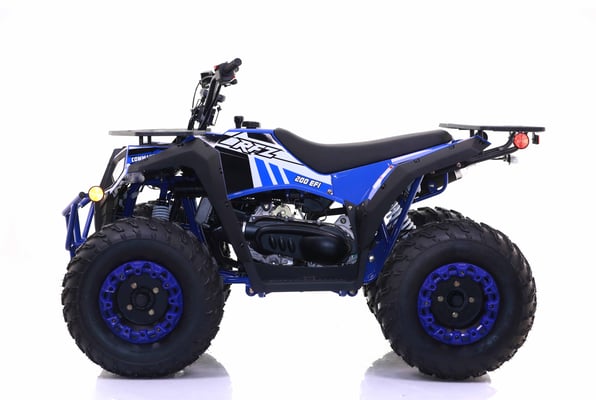

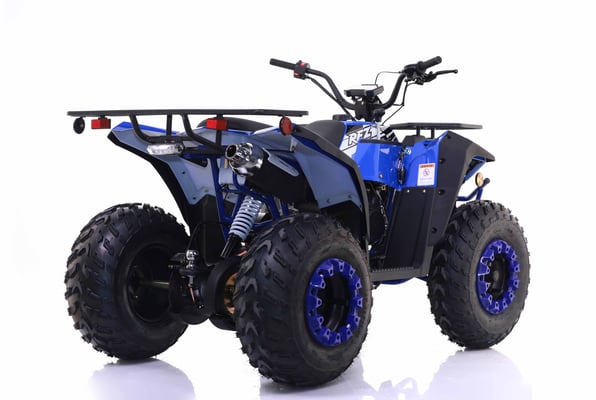

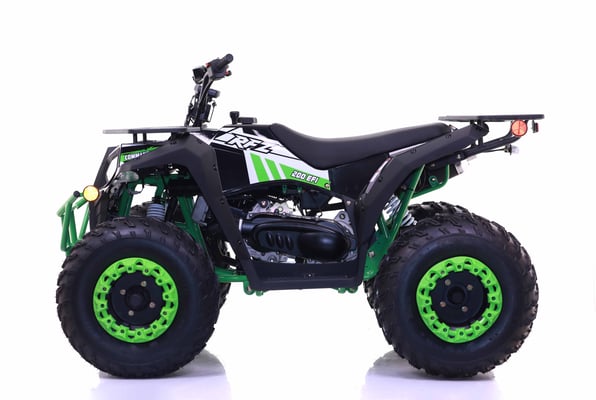

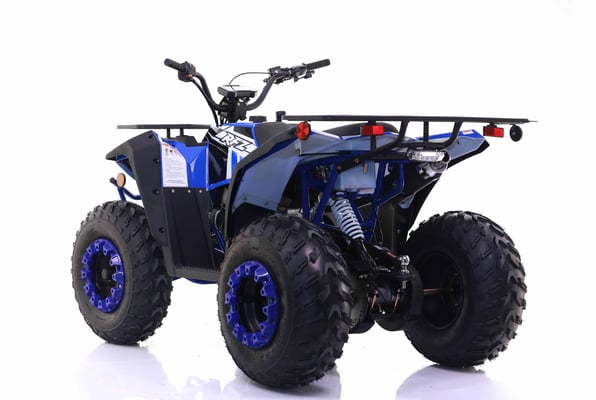

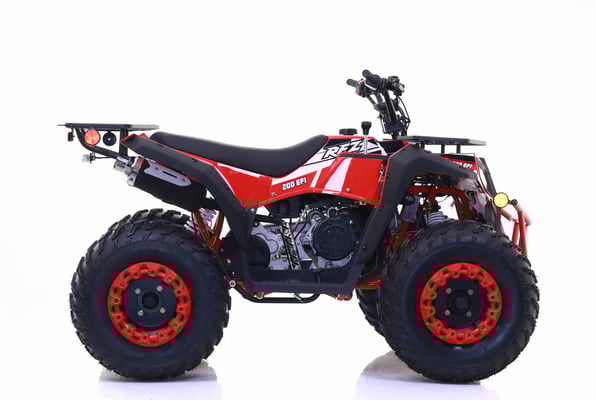

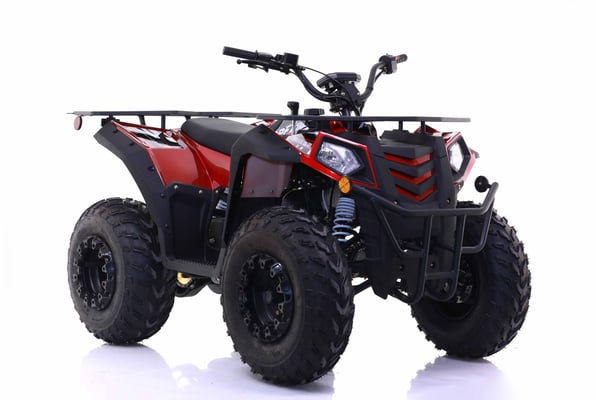

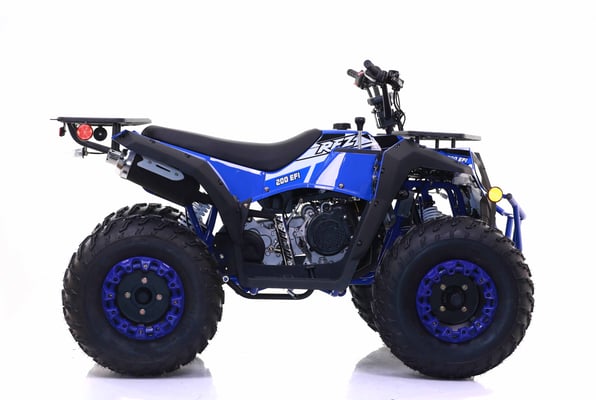

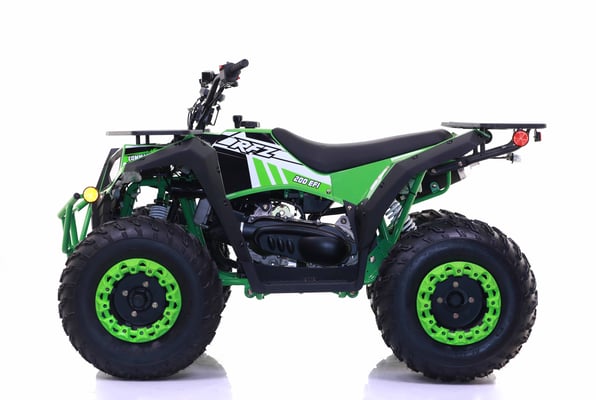

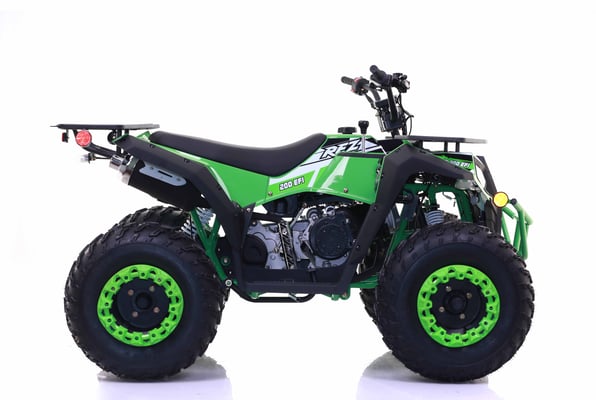

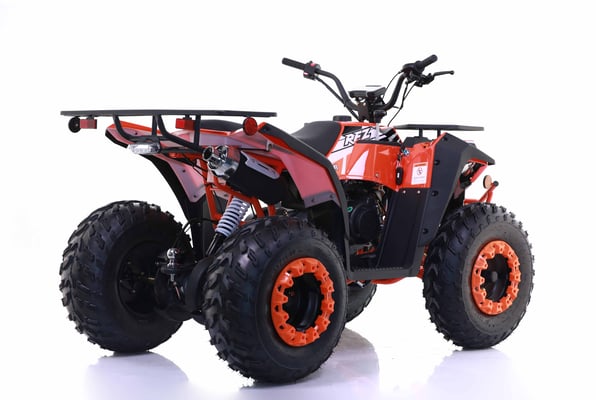

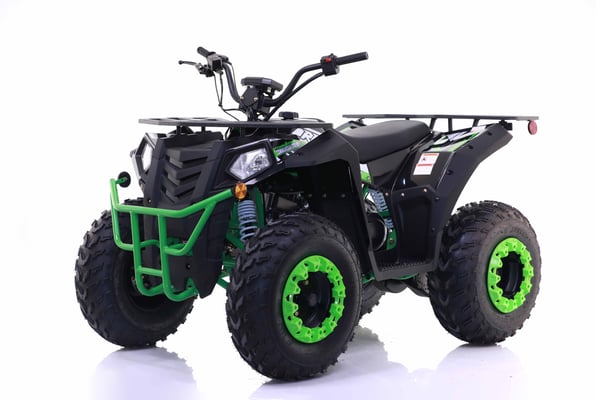

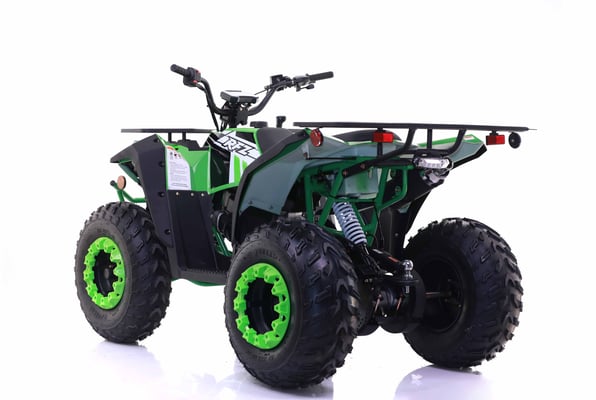

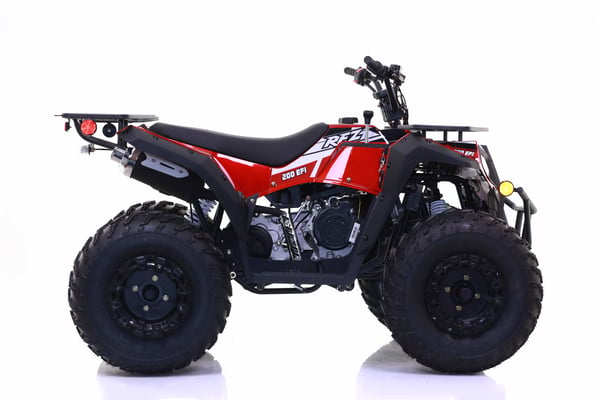

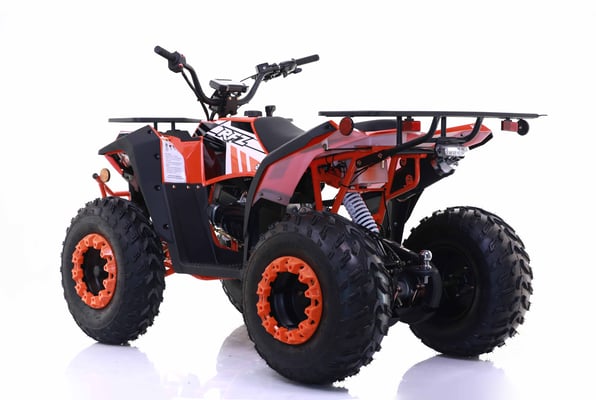

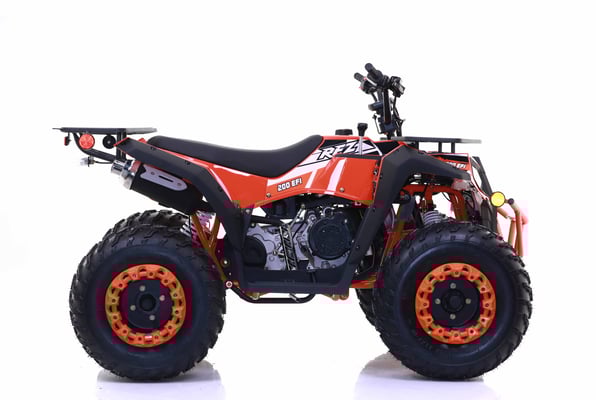

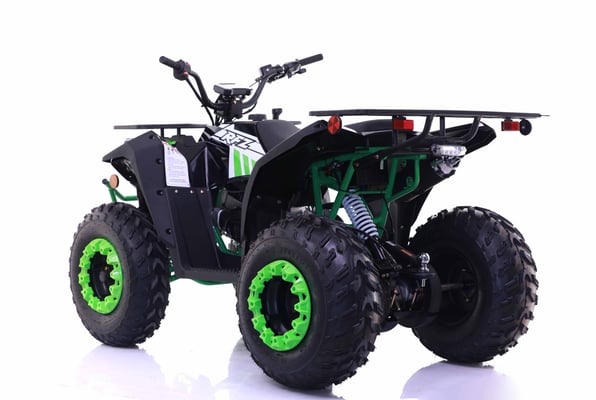

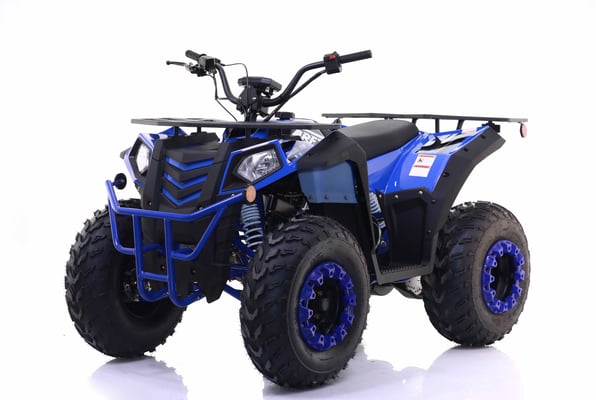

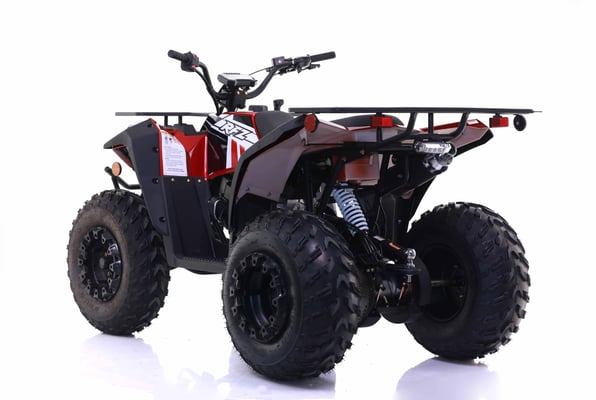

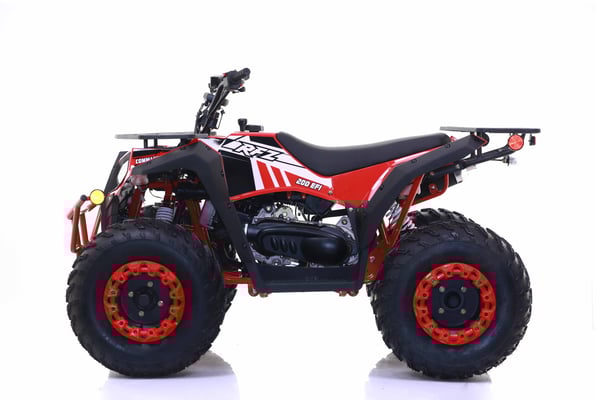

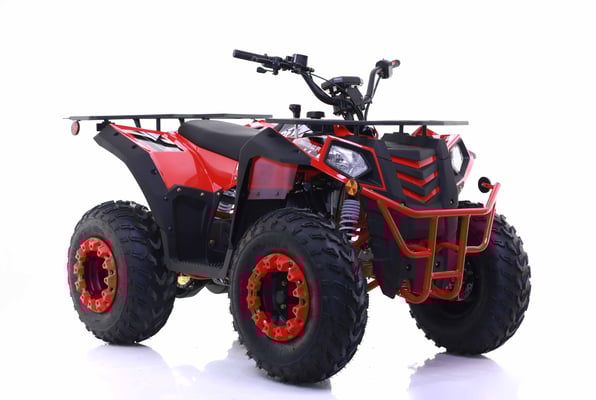

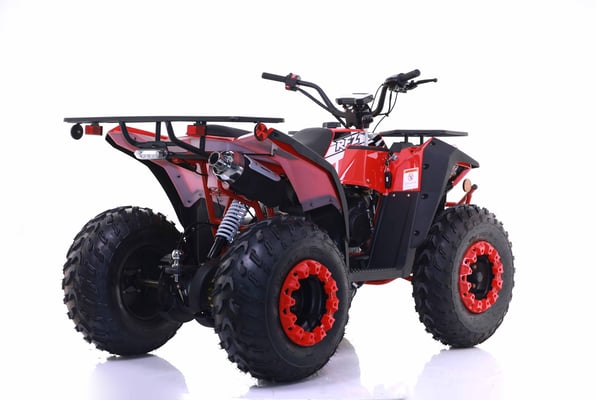

COMMANDER 200CC EFI



Model name COMMANDER 200 EFI
EPA Model AGA-16
Vichel Class G16+ class
Overall dimensions L×W×H 1670mm×1020mm×1100mm
Wheel base 1110mm
front wheel distance 815mm
rear wheel distance 790mm
ground clearance 135mm
Seat height 760mm
Curb weight 165kg
rated load mass 150kg
Max speed 60km/h
minimum turning radius 3000mm
maximum gradability 10°
front brake type front  hydraulic brake
rear brake type rear hydraulic brake
brake operation Front hydraulic brake by hand , rear hydraulic brake by foot pedal
front rim steel
rear rim steel
front tire size 23×7-10
rear tire size 22×10-10
front tire air pressure 10P.S.I.
rear tire air pressure 10P.S.I.
transmission Chain
Spark plug type A7RTC

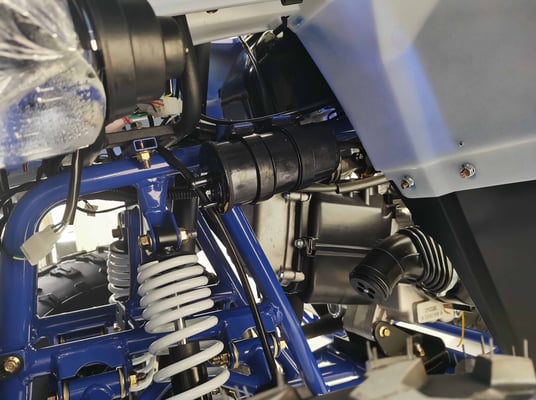

Fuel injector model type  MEV1-080-B
Battery type 12V9Ah
Tank volume 6L
packing size 1465mm×870mm×860mm
Net weight 160kg
Gross weight 188kg
Loadign quantity 57pcs/40'HQ
Transmission type CVTF- N-R

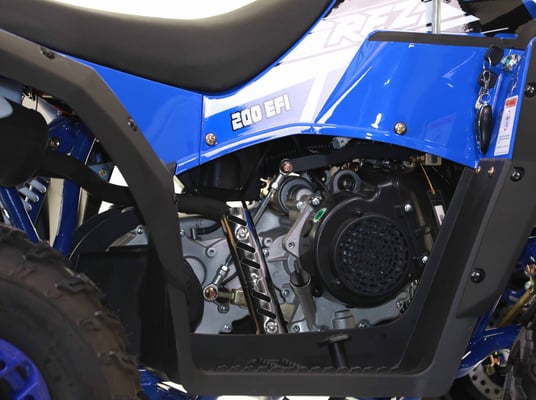

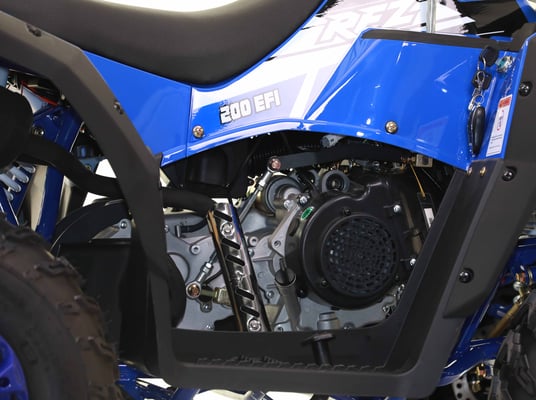

Engine type 4 stroke,Single cylinder , air cooling
displacement 174.4cc
Bore×Stroke 62mm×57.8mm
Max power 7.3kW/7500rpm
Max torque 10N.m/6000rpm
ignition CDI
start electric start
fuel grade RQ-93
Lubrication Pressure and splash lubrication
Engine oil grade SAE15W/40




AGE REQUIREMENT:  (G16) 16 year old and up


Download
PARTS DIFFERENTIATION SHEET
9471 difference parts for commander 200
Microsoft Excel Table 17.0 KB
