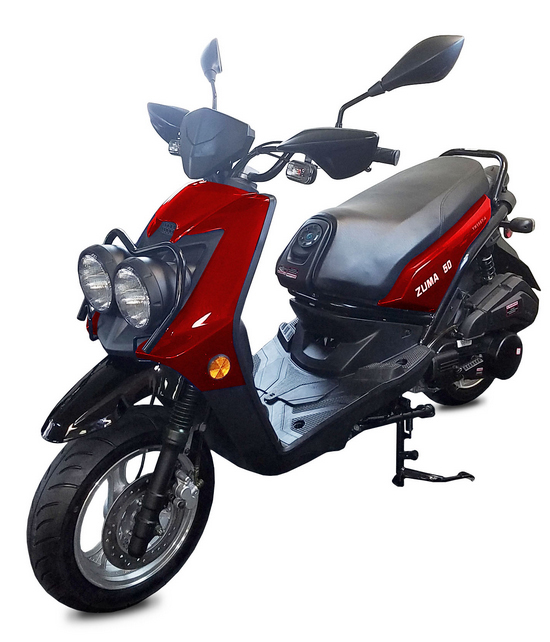

ZOMA 49cc SPECIFICATIONS





ENGINE INFO



Engine type                  CVT

Engine brand                157QMJ

Displacement                49cc

Cooling                         Air cooled

Max horsepower            2.2hp/2500rpm

Max torque                   2.7n.m/1700rpm

Bore*stroke                  2.26*2.28inches

Max speed 25 MPH

Climbing ability             30degree

Ignition                        CDI

Starting system            Electric/Kick

Battery                        12v/7AH

Carburetor brand          PD24J

Engine oil                     SAE15W/40SF

Gear oil                            *



CHASSIS ETC.



Clutch                        Automatic

Transmission                  *

Driveline                        *

Driving wheel            Rear wheel drive

Suspension, front/rear    *

Brakes, front/rear       Disc/drum

Brake operation          Hand + foot

Tires, front/rear          120/70-12

Fuel capacity/type       1.5 gal

Weight ,G.W./N.W.     298 LBS/243 LBS

Max load                    220.5 lbs



DIMENSIONS



Wheelbase                43.63 inches 1330 MM

OA L*W*H                63.32*23.29*36.74 inches 1930X710X1120

Height to seat           32.2 inches

Min ground clearance 5.9 inches 150 MM
