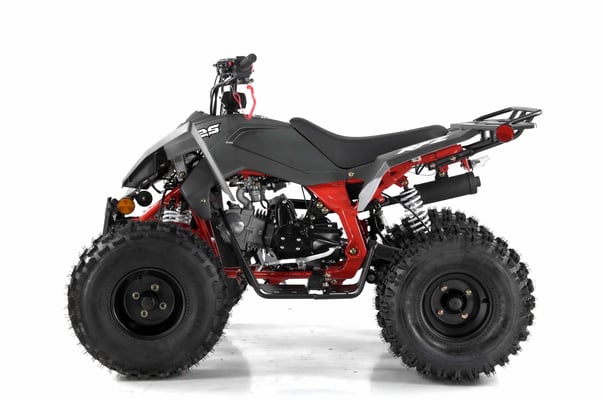

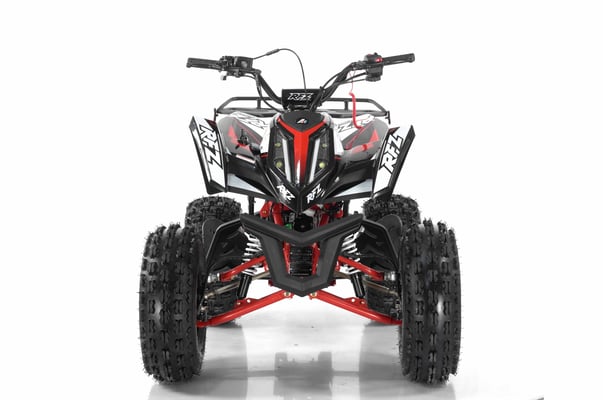

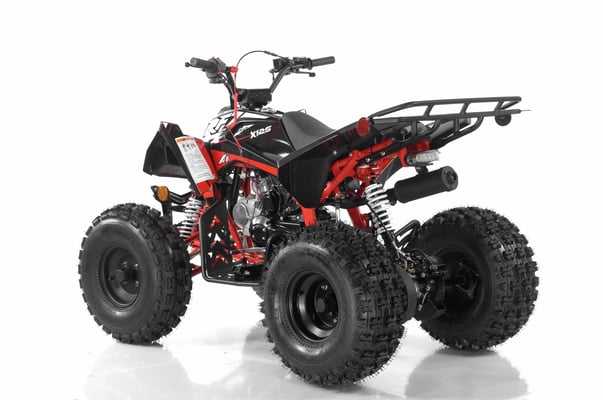

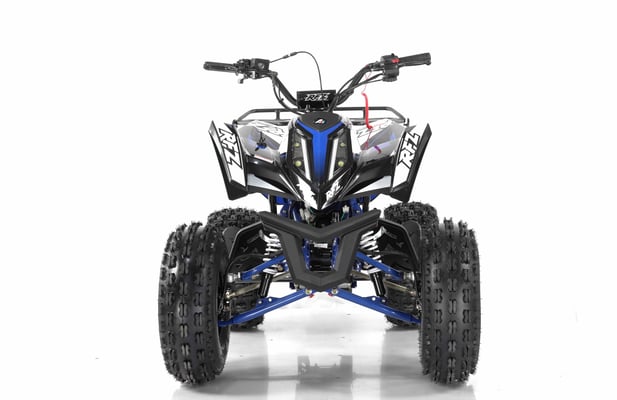

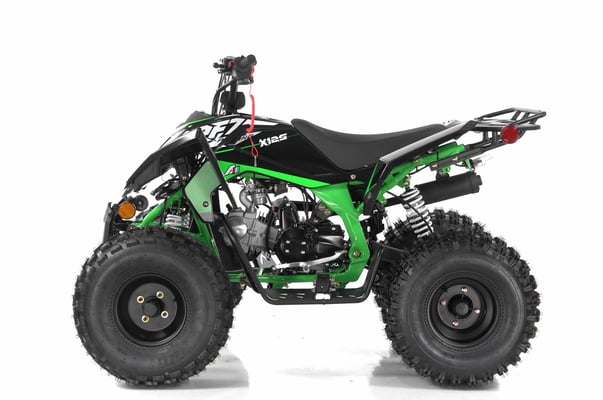

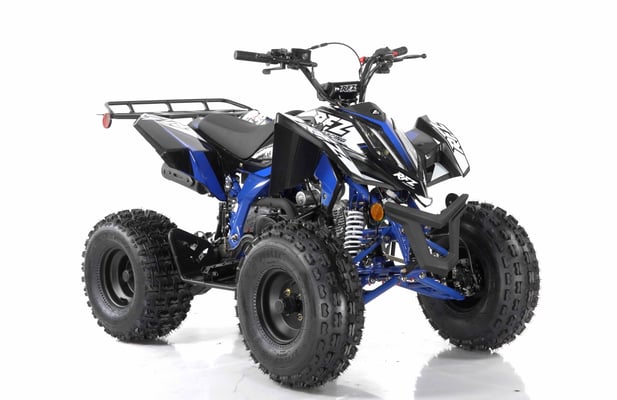

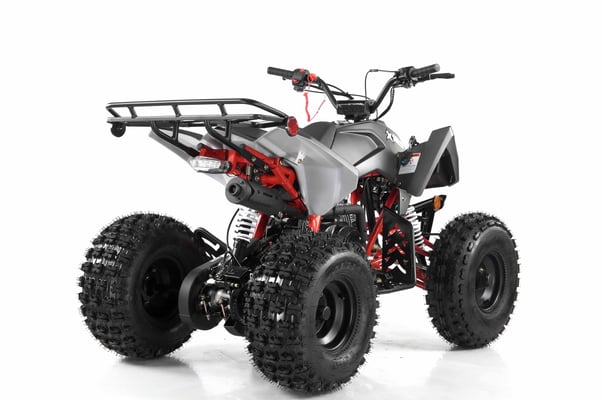

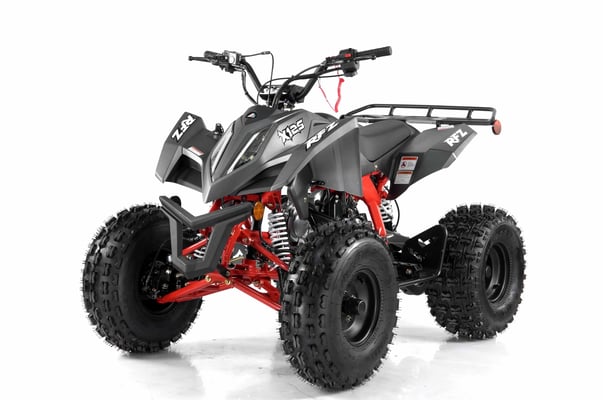

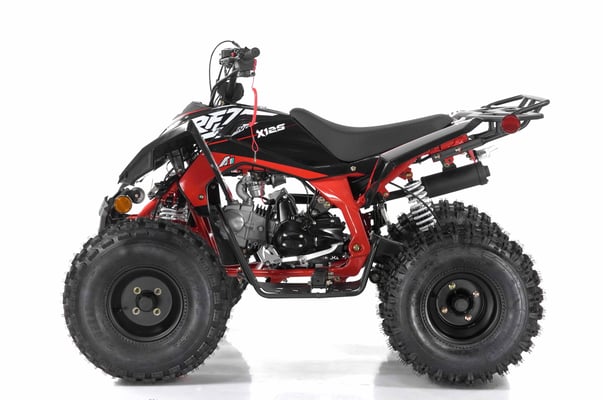

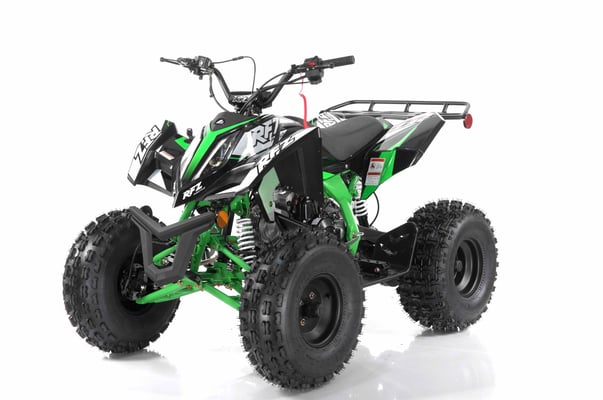

Model name AGA-12A
Vehicle Class Y12+ class
Overall dimensions L×W×H 1495mm×970mm×1000mm
Wheel base 965mm
front wheel distance 795mm
rear wheel distance 680mm
ground clearance 125mm
Seat height 760mm
Curb weight 123kg
rated load mass 100kg
Max speed 55km/h
minimum turning radius 2500mm
maximum gradability 10°
front brake type front  hydraulic brake

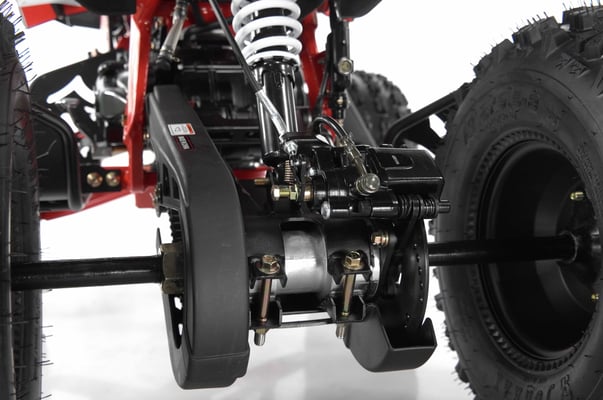

rear brake type rear hydraulic brake

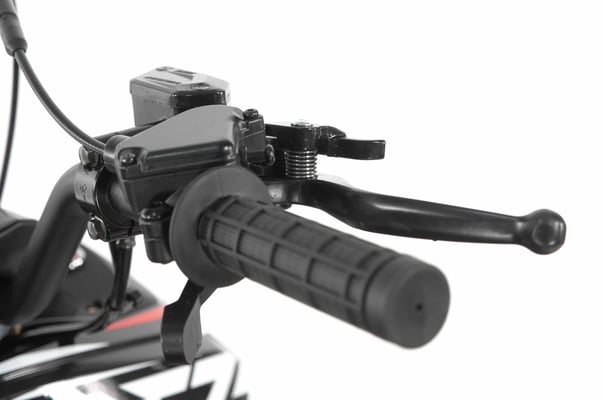

brake operation Front hydraulic brake by hand , rear hydraulic brake by foot pedal
front rim steel
rear rim steel
front tire size 19×7-8
rear tire size 18×9.5-8
front tire air pressure 10P.S.I.
rear tire air pressure 10P.S.I.
transmission Chain
packing size 1310mm×760mm×660mm
Net weight 121kg
Gross weight 135.5kg

Transmission type Semi-automatic 1+R

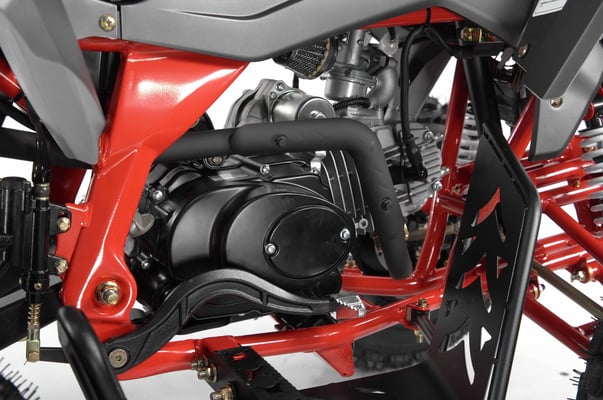

Engine type 4 stroke,Single cylinder , air cooling
displacement 119.7cc
Bore×Stroke 52.4mmX55.5mm
Max power 5.5kW/7500rpm
Max torque 8.5N.m/5000rpm
ignition CDI
start electric start
fuel grade RQ-93
Lubrication Pressure and splash lubrication
Engine oil grade SAE15W/40

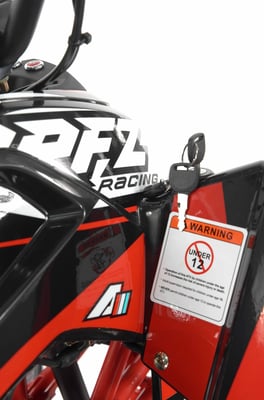

AGE REQUIREMENT:  (Y12)12 and up
