General information |
Model |

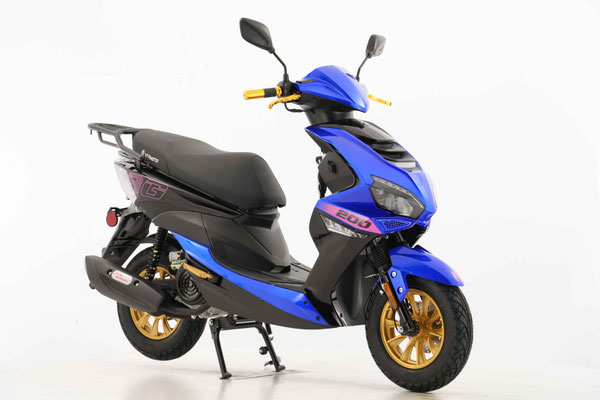

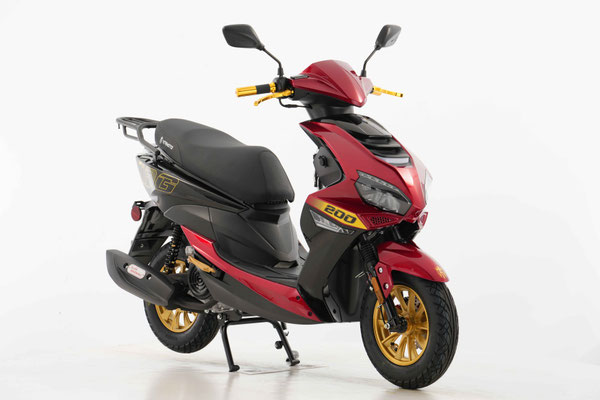

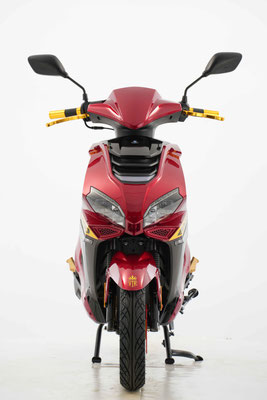

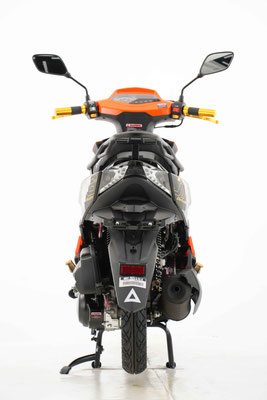

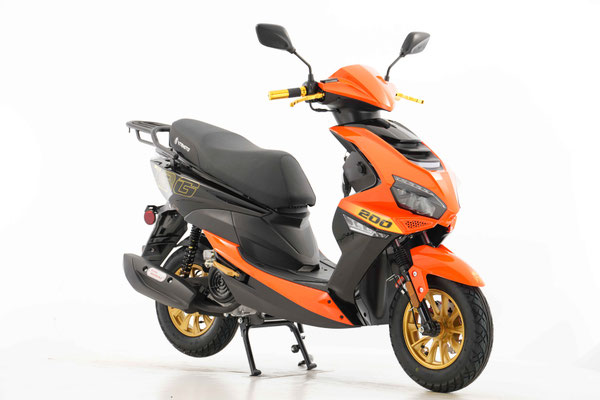

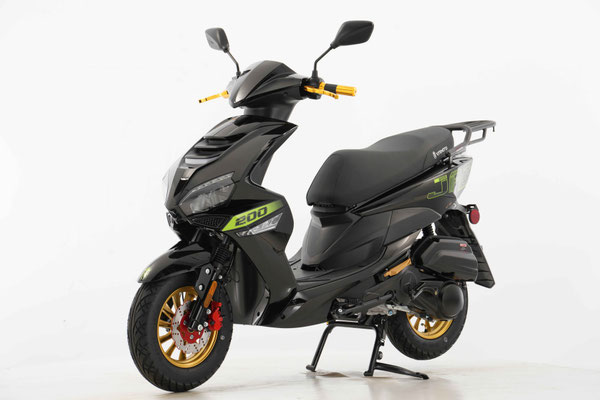

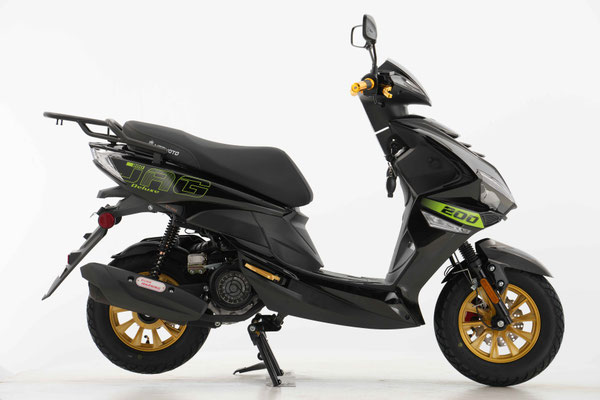

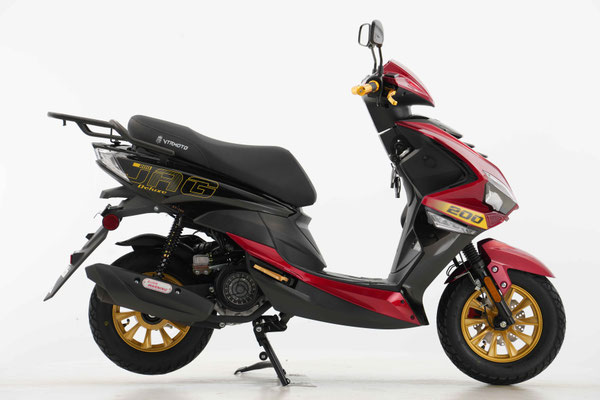

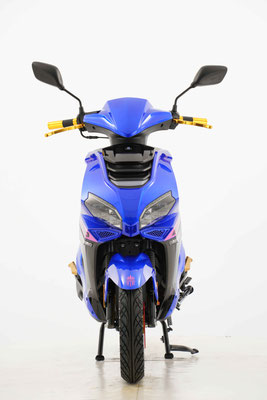

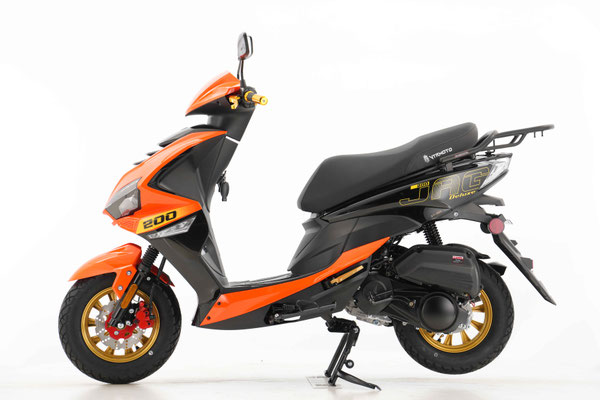

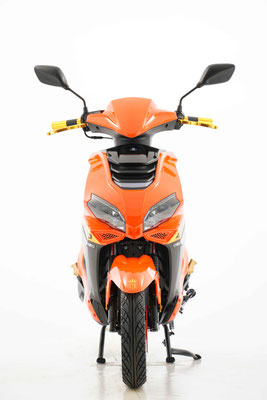

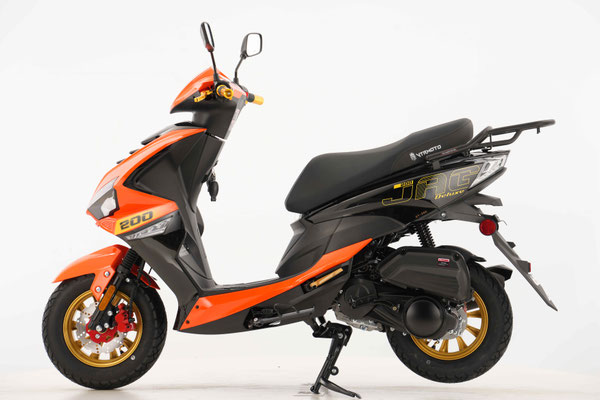

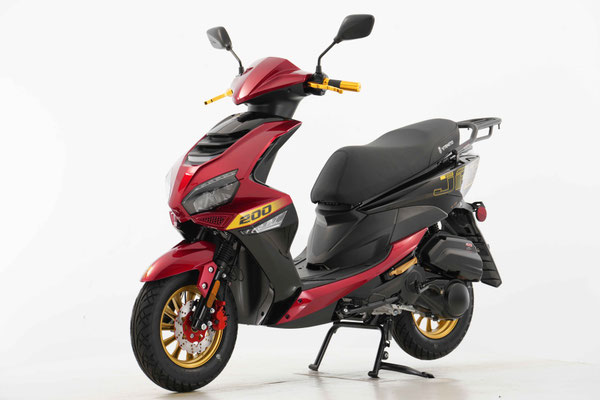

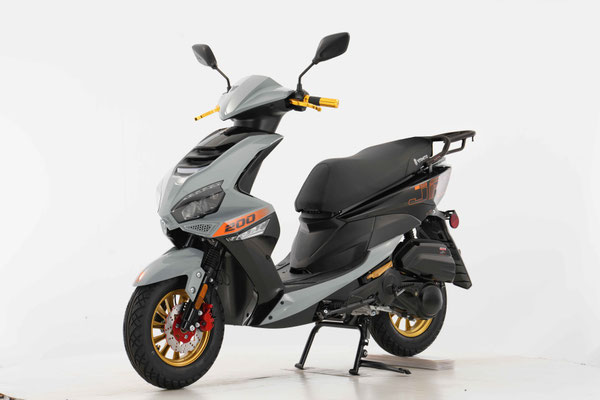

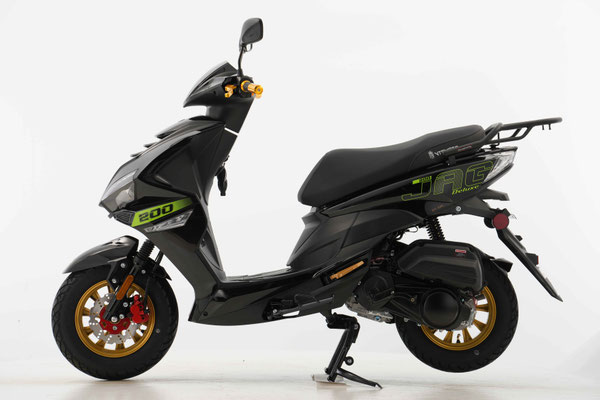

JAG 200 |
|
|
||
|
|
||
|
Engine and transmission |
Displacement（cc） |
168.9 |
|
Engine type |
1P61QMK-A |
|
|
Engine mode |
1-cylinder/4-stroke/2-valve |
|
|
Bore x stroke(mm) |
ø61*57.8 |
|
|
Max.power |
7.4kW/7000 r/min |
|
|
Max.torque |
11N·m/6000 r/min |
|
|
Compression ratio |
9.5:1 |
|
|
Fuel system |
Carburetor |
|
|
Valve train |
SOHC |
|
|
Ignition |
C.D.I. |
|
|
Starter |
Electric & Kick |
|
|
Lubrication system |
Pressure splash lubrication |
|
|
Cooling system |
Forced-air-cooled |
|
|
Gear shifting type |
Automatic CVT |
|
|
Transmission type |
V-Belt |
|
|
|
|
|
|
final drive |
|
|
|
Clutch type |
Automatic |
|
|
Physical measures |
Dry weight（kg） |
90 |
|
Seat height（mm） |
800 |
|
|
Overall length (mm) |
1775 |
|
|
Overall width (mm) |
675 |
|
|
Overall height (mm) |
1140 |
|
|
Ground clearance (mm) |
125 |
|
|
Wheelbase (mm) |
1210 |
|
|
Chassis and dimensions |
Frame type |
Flat scooter |
|
Front suspension |
Telescopic forks |
|
|
Front suspension travel (mm) |
60 |
|
|

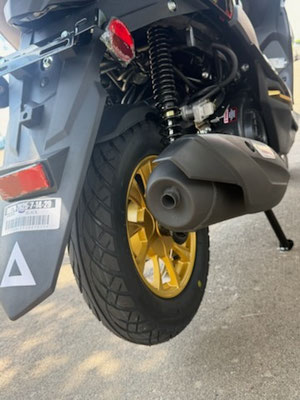

Rear suspension |
Mono-shock-absorber |
|
|
Rear suspension travel (mm) |
65 |
|
|
Fr. tyre |
3.50-10 |
|
|
Rr. tyre |
3.50-10 |
|
|
Fr. Brakes |
Disc |
|
|
Fr. brakes diameter (mm) |
180 |
|
|
Rr. brakes |
Drum |
|
|
Rear brakes diameter (mm) |
110 |
|
|
Other specifications |
Top speed（km/h） |
93 |
|
Max.loadage (kg) |
75*2=150kg |
|
|
Fuel capacity(L) |
4.5 |
|
|
Battery |
12V6Ah(YTX7A-BS) |
|
|
|

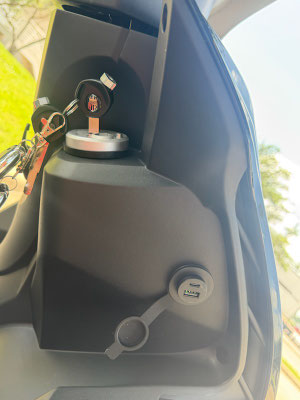

USB， ALARM ,REAR BOX |
HAVE |
