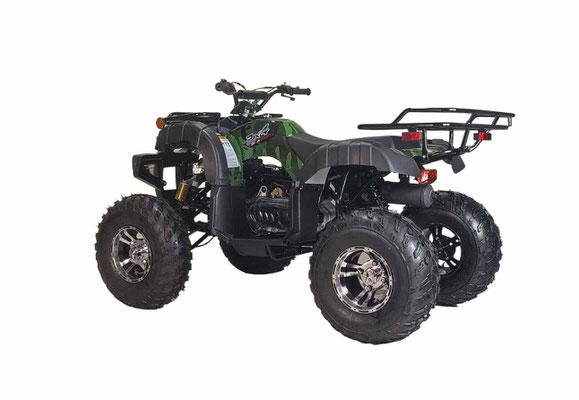

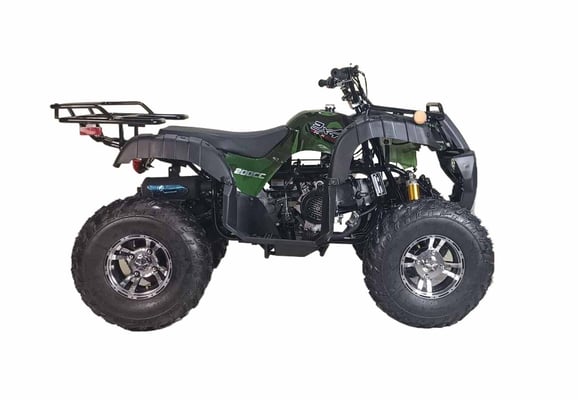

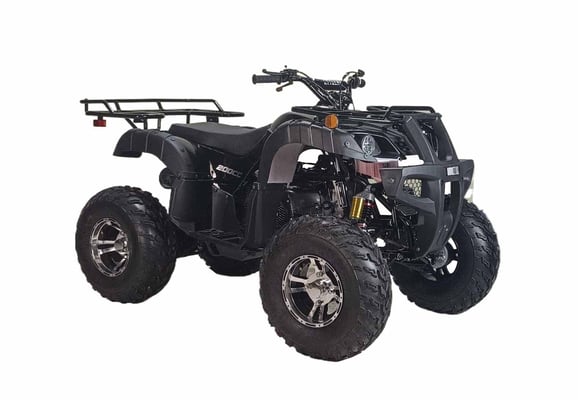

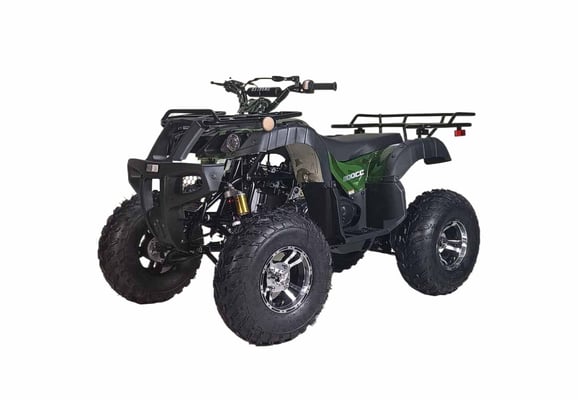

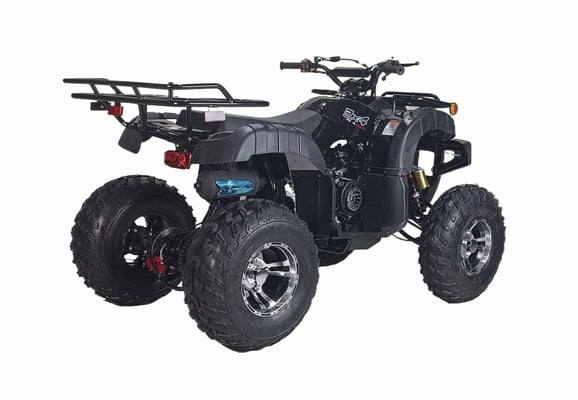

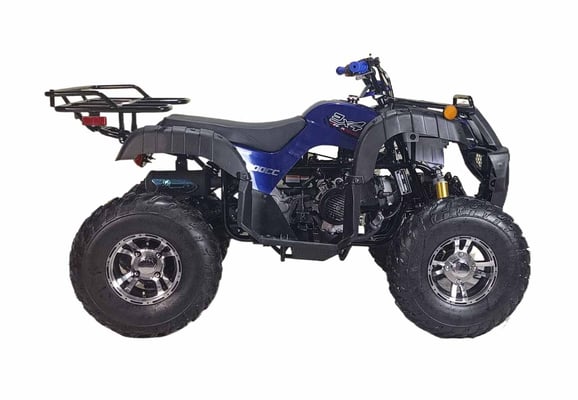

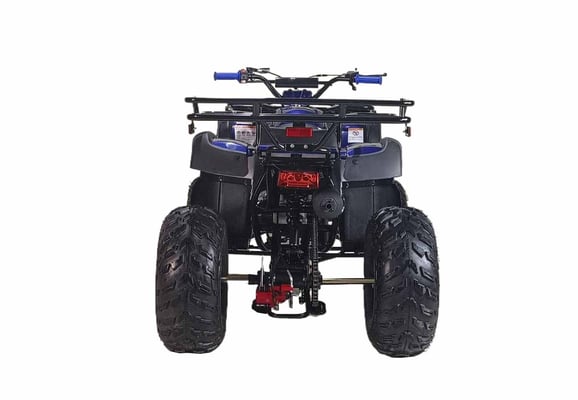

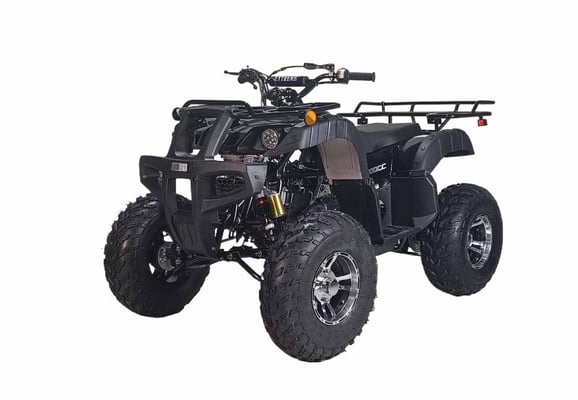

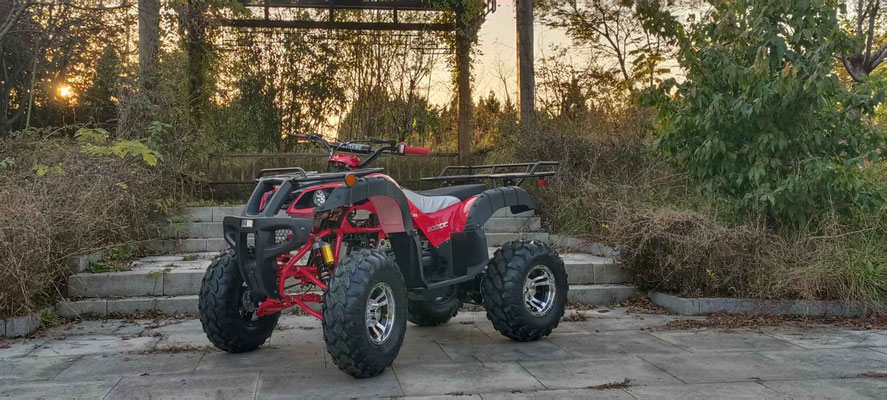

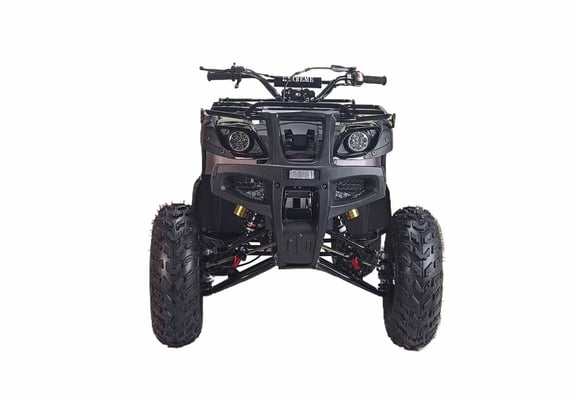

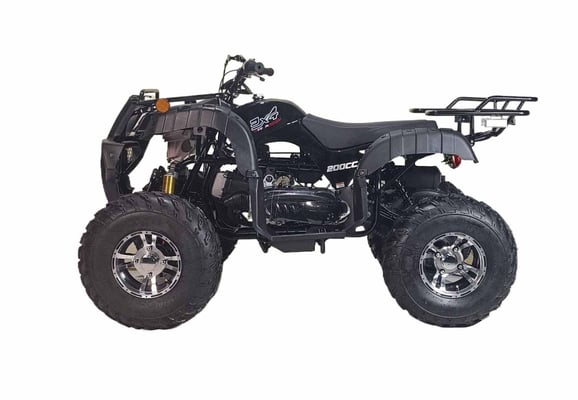

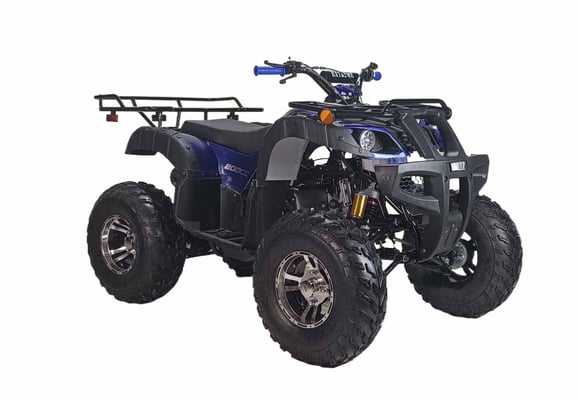

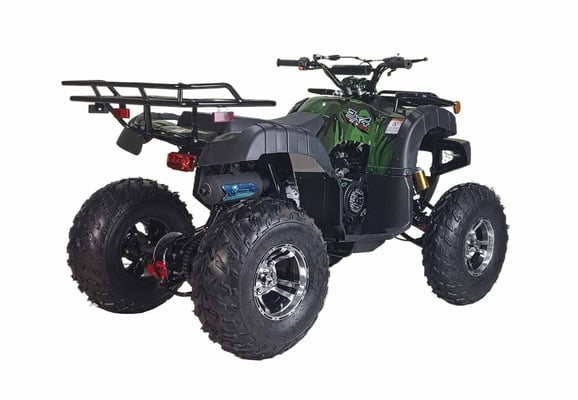

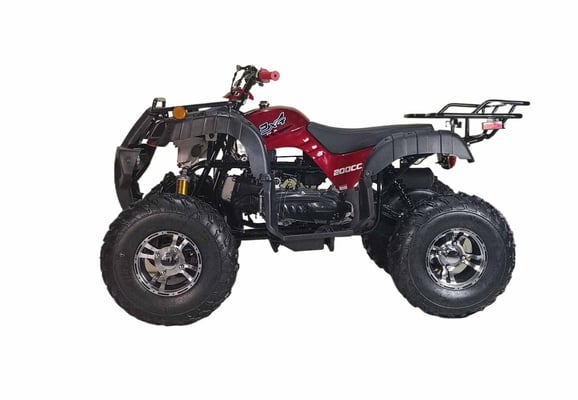

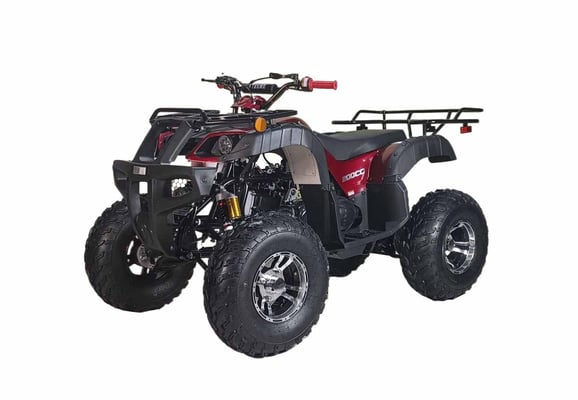

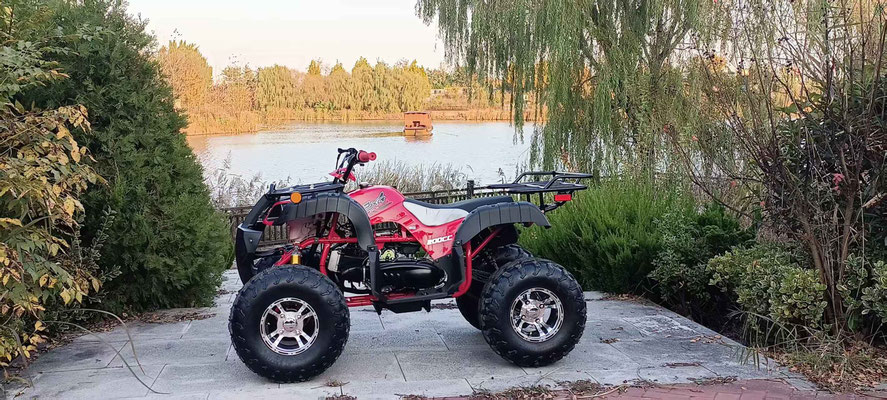

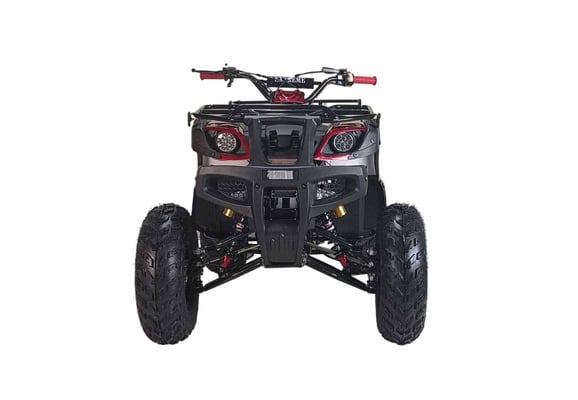

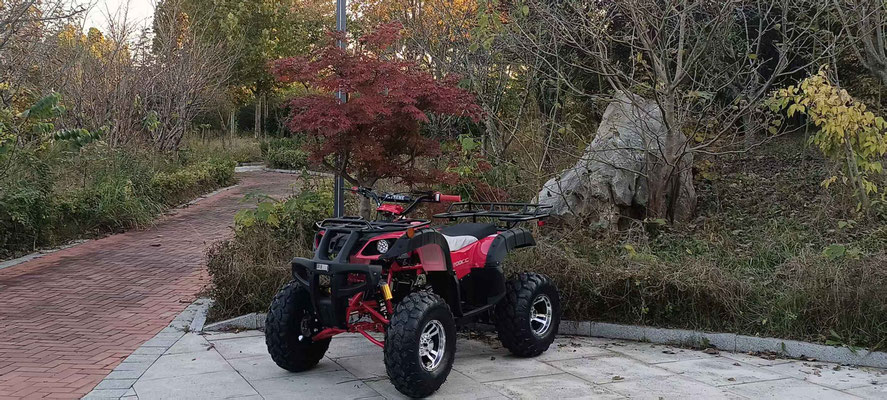

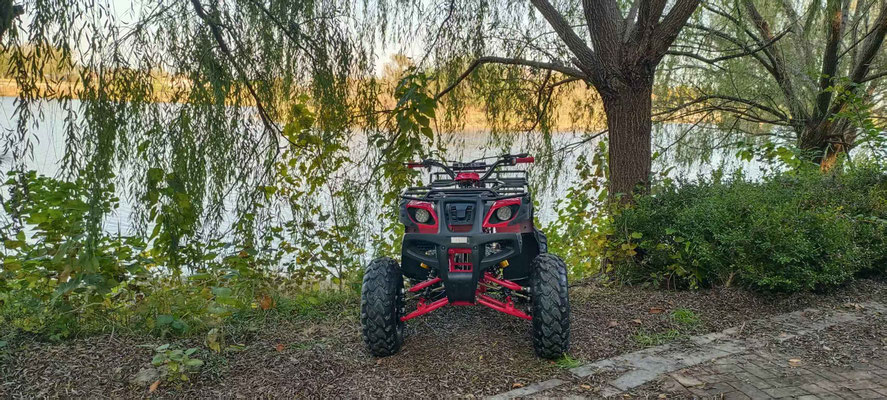

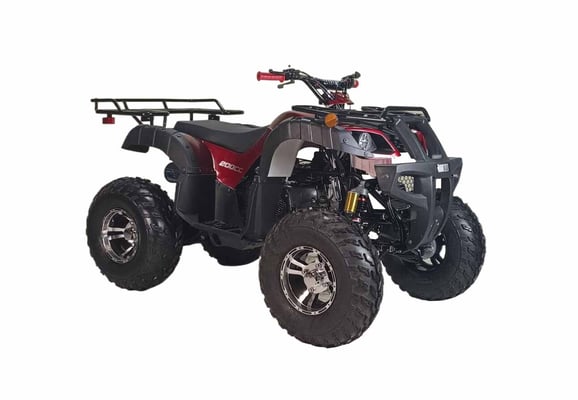

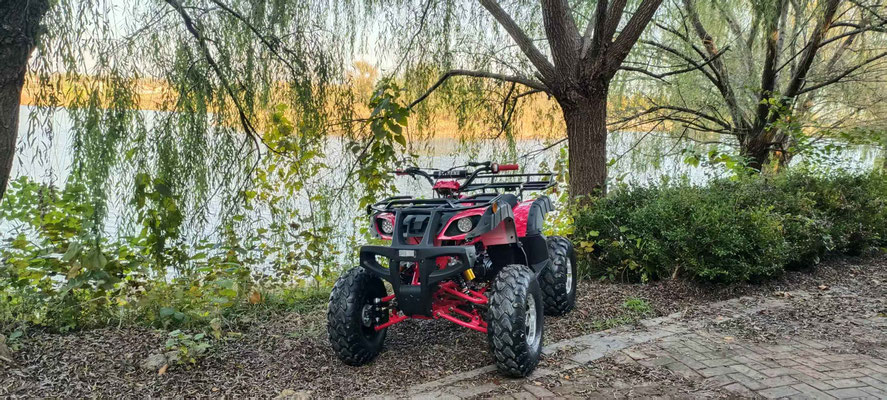

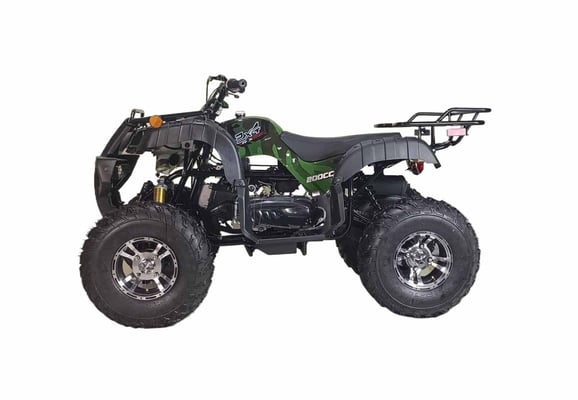

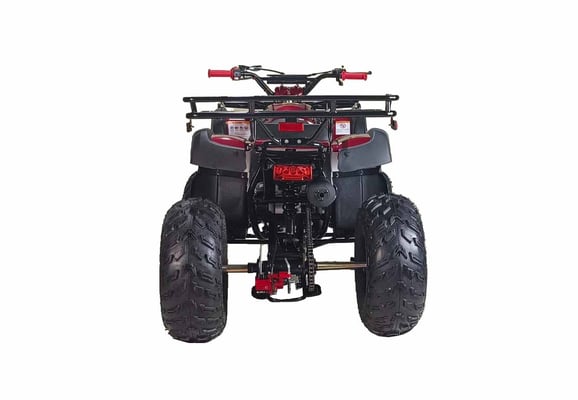

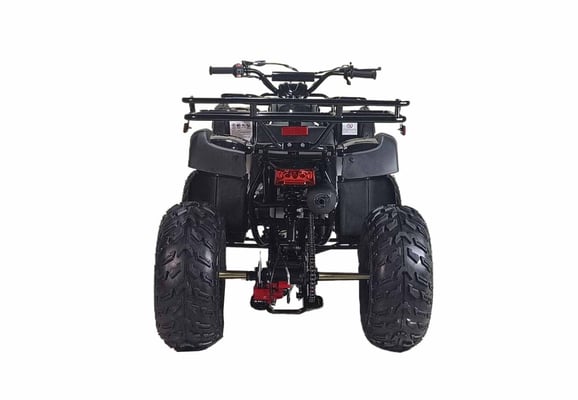

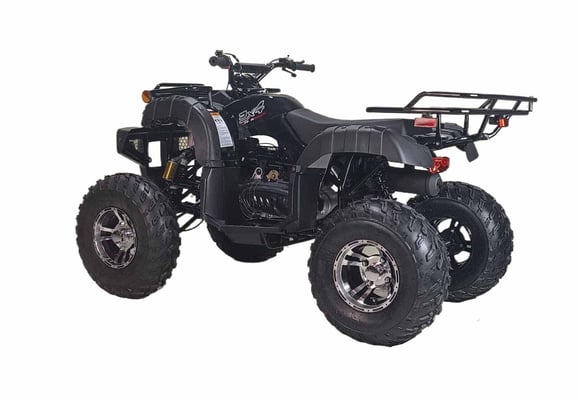

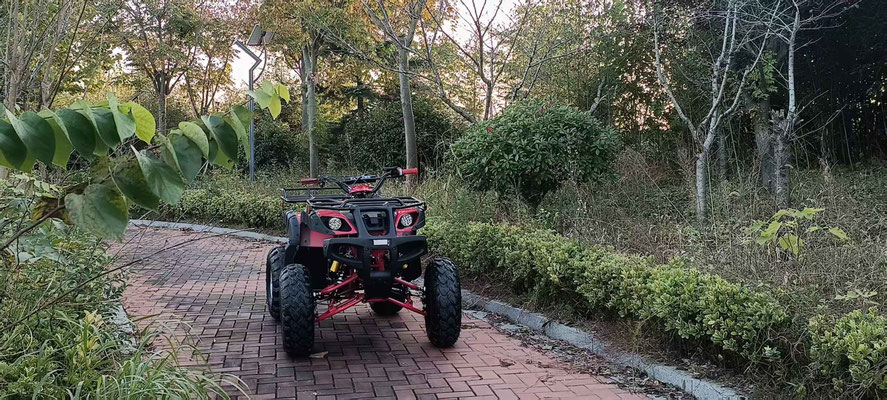

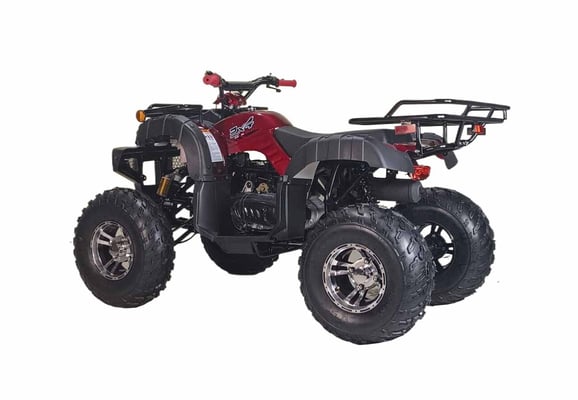

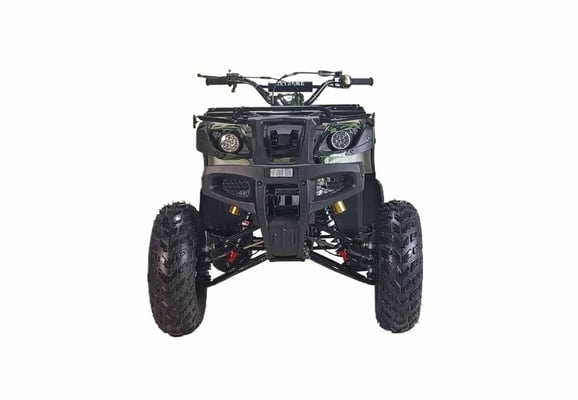

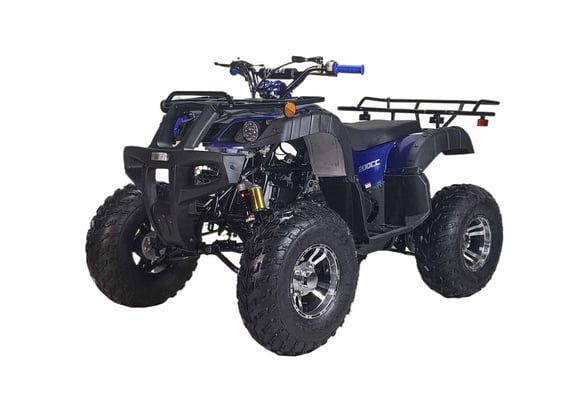

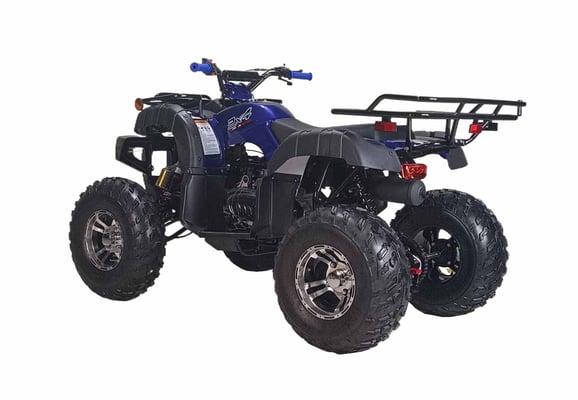

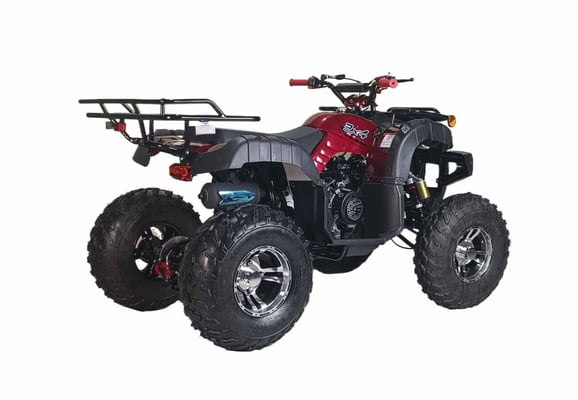

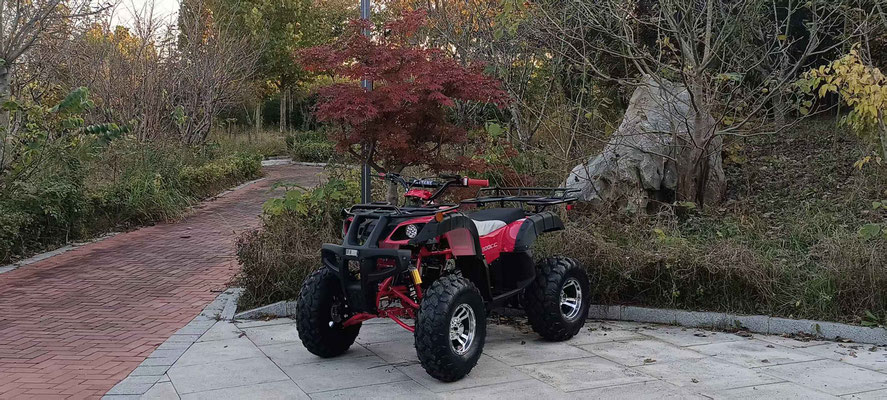

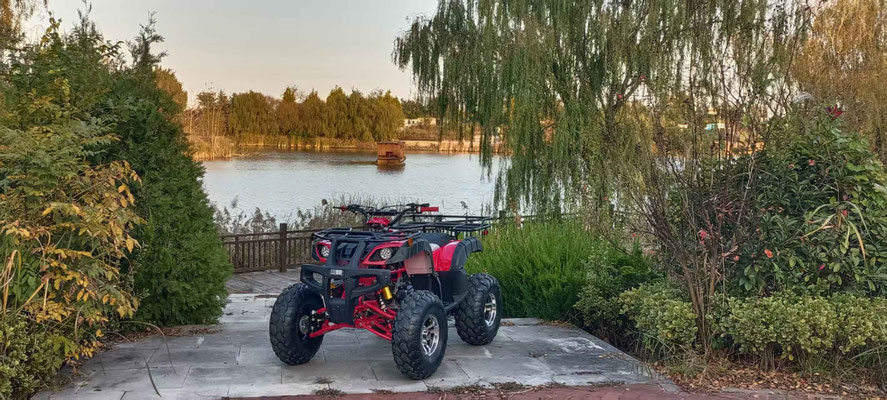

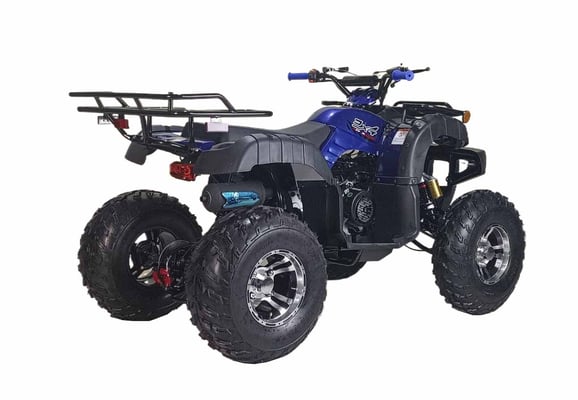

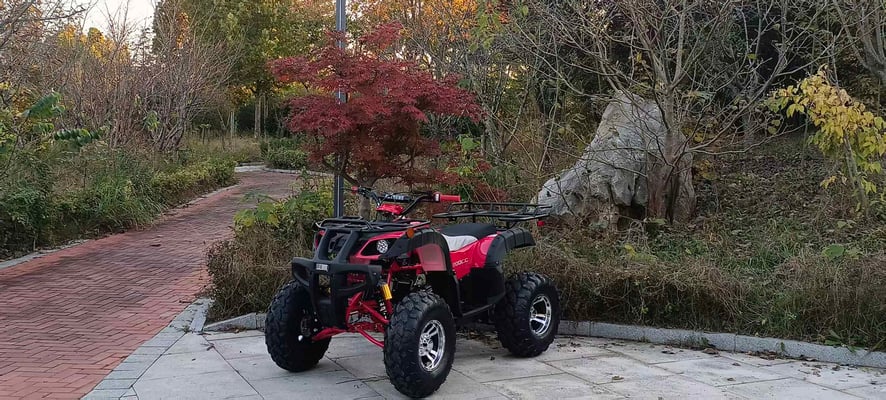

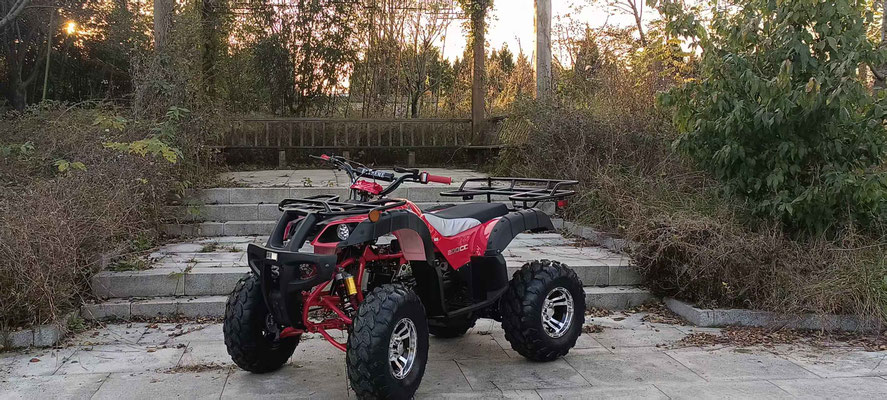

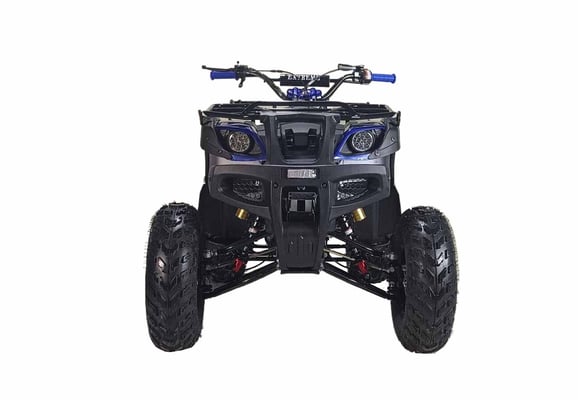

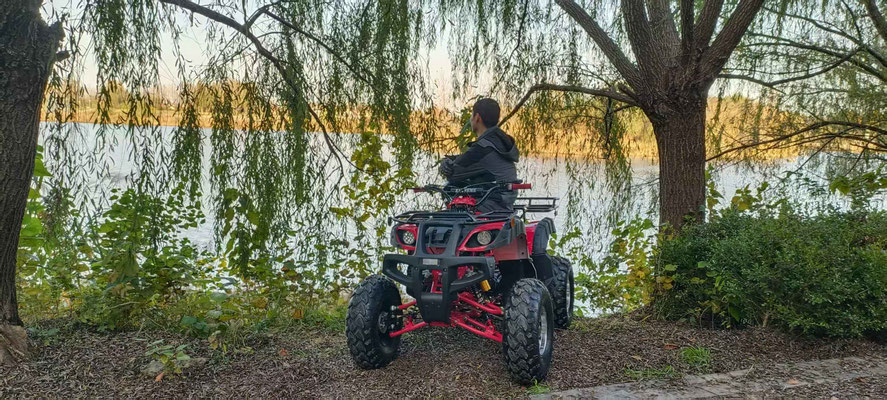

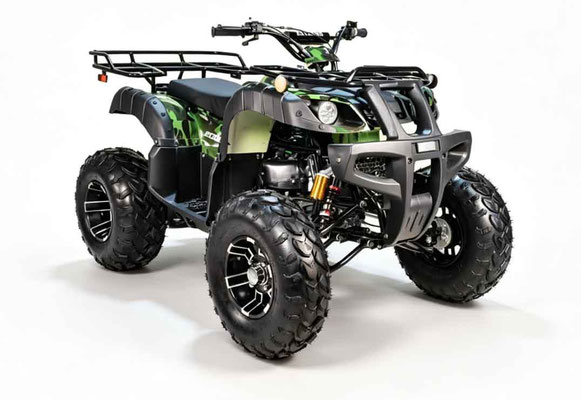

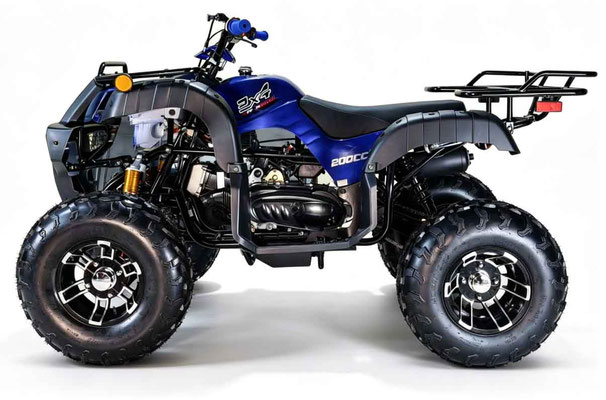

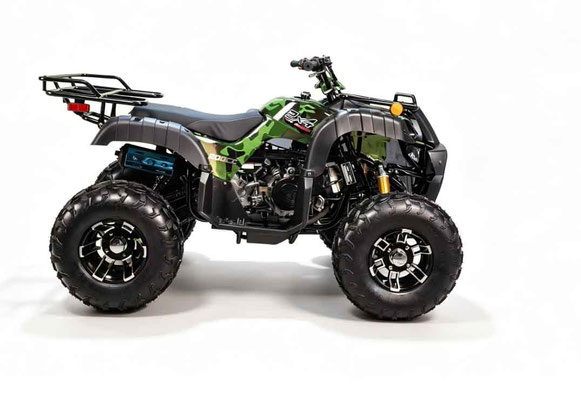

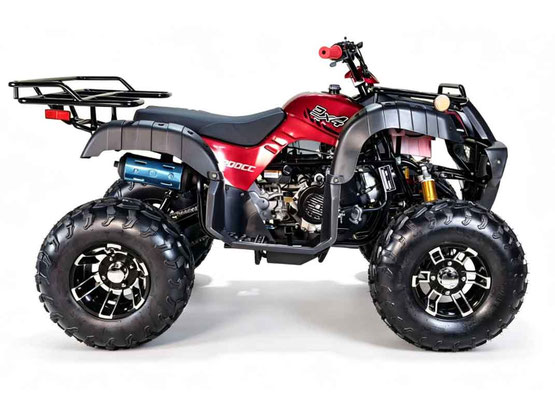

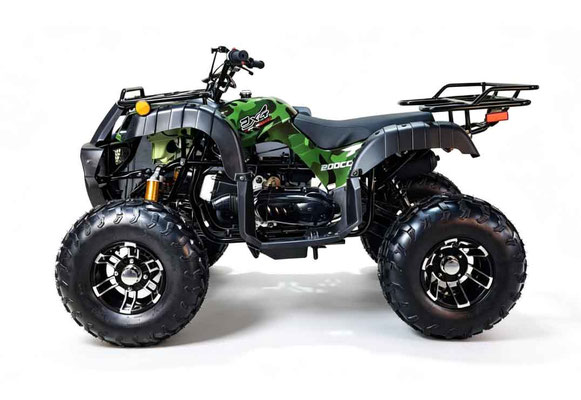

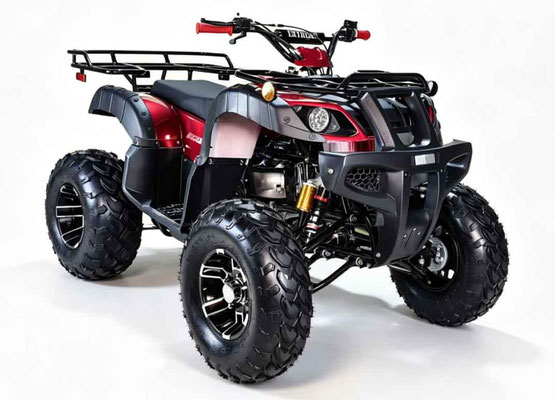

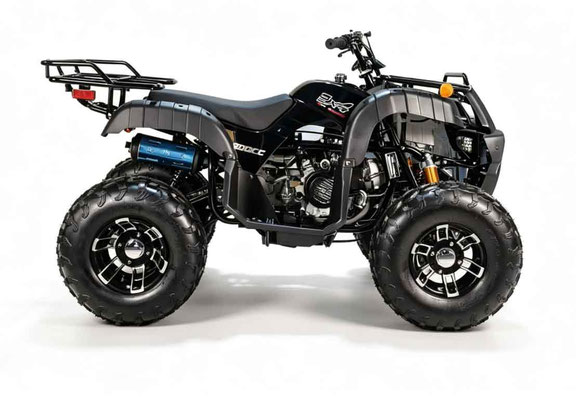

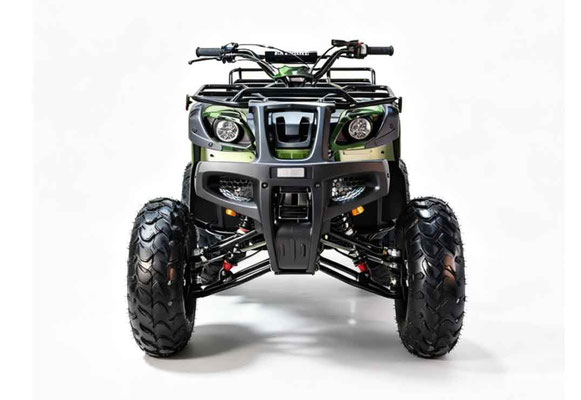

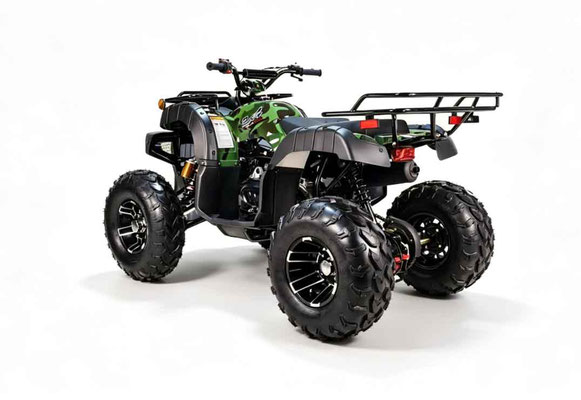

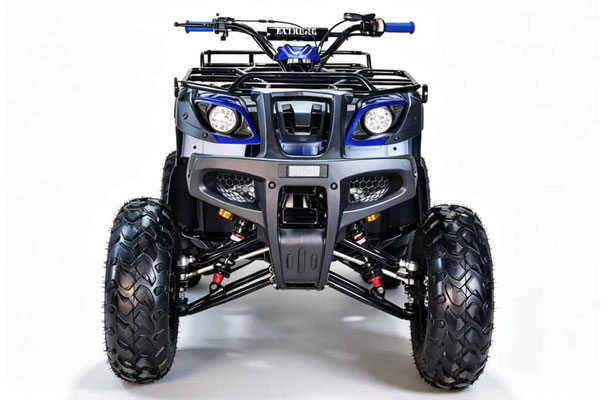

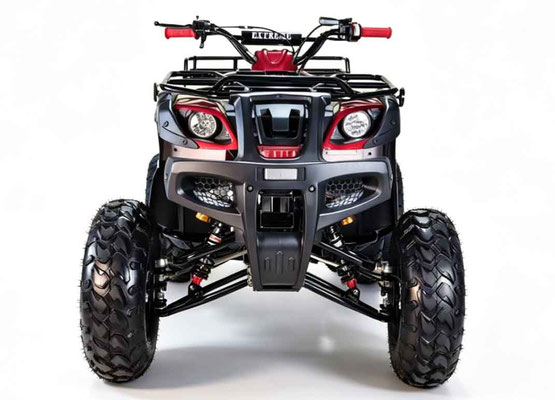

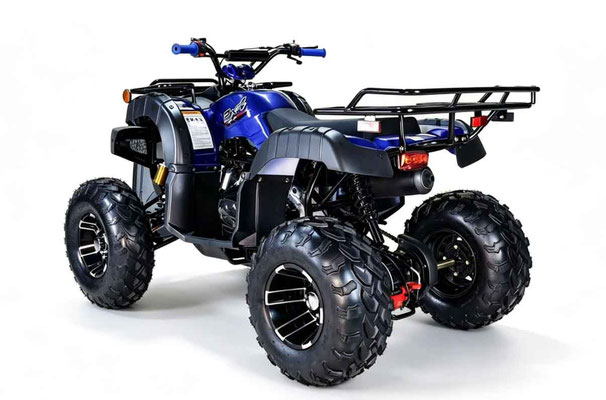

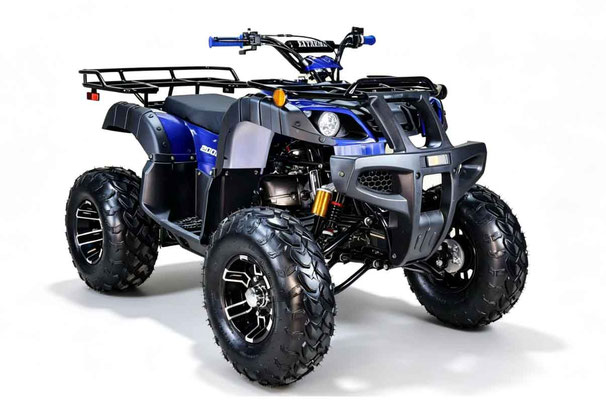

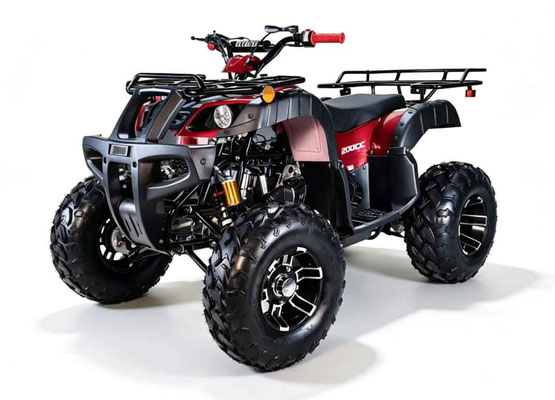

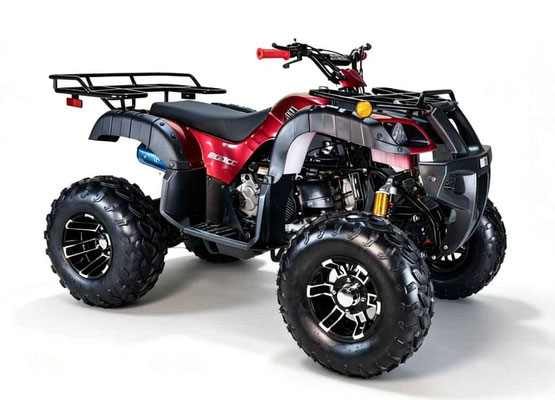

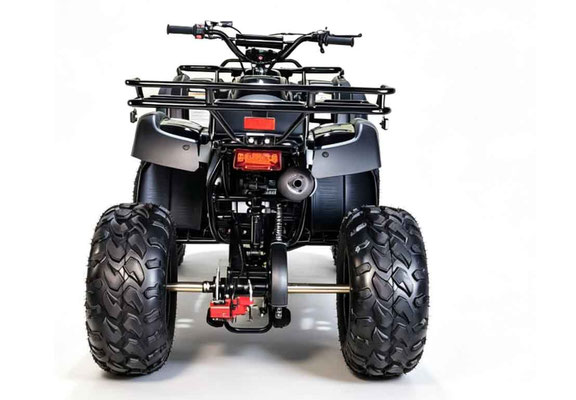

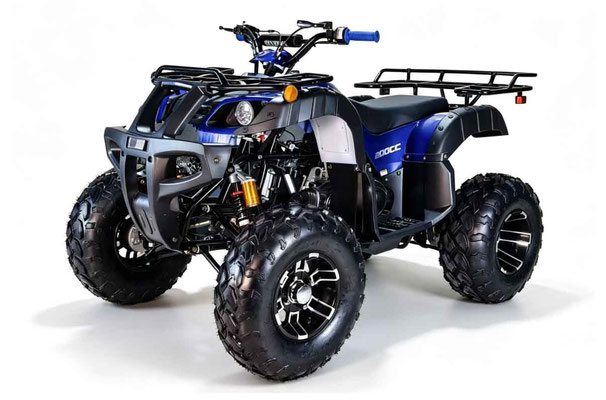

Cougar UT 200cc



ENGINE
Type 200cc,(Air cooled),4(4-stroke),(1-cylinder)
Bore x Stroke 62.5mmX57.8mm
Compression Ratio 10:01
Carburetor PD24J
Ignition CDI
Starting Time (Electric start)
Transmission (F-N-R)
Drive Train (Chain Drive)
Max. Torque 10N.m/6500r/min
Max. Power 9.1Kw/7500r/min



CHASSIS

Suspension/Front (Independent double swing arm)
Suspension/Rear (Single swing arm)
Brakes/Front (Ventilated Hydraulic disc)
Brakes/Rear (Ventilated Hydraulic disc)
Tires/Front 23 x 7-10(23x 7-10 radial)
Tires/Rear 22x 10-10(22x10-10radial)



DIMENSIONS

L x W x H 1700mmX1040mmX1100mm
Seat Height 810mm
Wheelbase 1115mm
Ground Clearance 135mm
Battery 12V/9Ah
Fuel Capacity 4.2L
Dry Weight 164KG
Max. Load 150KG
Package Size 1420mmX840mmX870mm
Loading Quantity 63/40 (63pcs/40HQ)

MAIN PERFORMANCE
Max. Speed 65km/h
Fuel Consumption 3.3L/100Km
Starting Time 15s
Brake distance 30km/h7m

Download
Parts List_(Cougar 200) CT200-1.xls
Microsoft Excel Table 428.0 KB
