SPECIFICATIONS



Model No

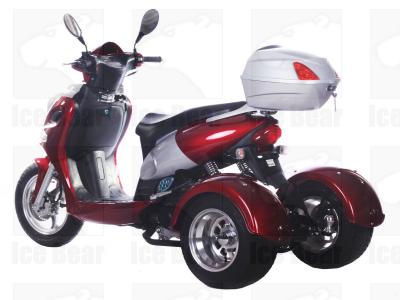

ACE (PST50-12)

Engine Type Single Cylinder, 4-strokes
Cooling Air Cooled
Drive System Chain
Piston Displacement 49.5cc
Bore and Stroke 1.51 inches x 1.63 inches
Compression Ratio 10.5:1
Maximum Power 2.1/8000kw/r/min
Maximum Torque 3.1/6500N.m./rpm
Starter Electric / Kick
Length 76.7 inches
Width 39.7 inches
Height 44.1 inches
Seat Height 31.1 inches
Wheelbase 59 inches
Ground Clearance 2.8 inches
Front Brake Disc
Rear Brake Disc
Front Tire 120/70-12
Rear Tire 205 x 50-10
Front Rim 2.5 x 12
Rear Rim 10 x 8
Ignition CDI
Engine Oil Capacity 0.75 Quarts
Maximum Speed About 30mph (may vary with rider weight, road condition and/or other factors)
Net Weight 264 lbs
Gross Weight 330 lbs
Weight Capacity 220 lbs
Frame Steel
Packing Size 75.6 inches x 34.2 inches x 47.2 inches
Towing Capacity 66 lbs
Fuel Capacity 1.2 gal
Rear Suspension Dual Shock
Accessories Instruction, Tool Box, Long Wire Clip, Reflection Mirror, Wheel Cover
