SPEC | STATUS |
发动机型号Engine Mode | ZONGSHEN -ZS154FMI-2 |
发动机型式Engine Type | SINGLE CYLINDER,AIR COOLER |
排量Displacement(ml) | 124 |
最大功率Max.Power(kw/r/min) | 6.3(1±10%)/7500(1±5%) |
最大扭矩 Max.Torque (N.m/r/min) |
8.8(1±10%)/5500(1±5%) |
压缩比Compression Ratio | 9.0:1 |
缸径与行程 Bore and Stroke(mm×mm) |
54×54 |
点火方式Ignition method | CDI |
润滑方式Lubrication method | Pressure spray |
润滑油牌号 | 10W/40 |
启动方式Starting method | KICK START |
离合方式Clutch method | Manual wet multi piece type |
变速方式 Gearshift Method |
Normally engaged two-stage transmission with four gears |
传动方式 transmission | Chain |
火花塞型号 spark | A7TC |
size :长×宽×高mm | 1820*750*1130 |
轴距mm / 轮距mm wheelbase | 1250 |
座高mm seat height | 850 |
离地间隙mm ground clearance | 280 |
前倾角。top rake | 21 |
最小转弯圆半径mm Minimum turning radius | 2300 |
齿轮型号/齿轮比 gear ratio | 428H/14:41 |
制动器型式(前/后) break | fr. & re.: disc fr: φ210; re:φ190 |
制动操纵方式(前/后) break type | front hand break, rear foot break |
轮辋型式(前/后) wheel | steel wheel, 1.6*17 & 1.85*14 |
轮胎规格(前/后)tyre | fr:70/100-17 re:90/100-14 |
前减震器型式/规格 Fr. suspension | up side downφ45×φ48×735 |
后减震器型式/规格Re. suspension | φ12×350 |
脚蹬至座垫的距离mm foot pedal to seat | 530 |
化油器型号 carb | PE19 |
油箱容积L tank capacity | 4 |

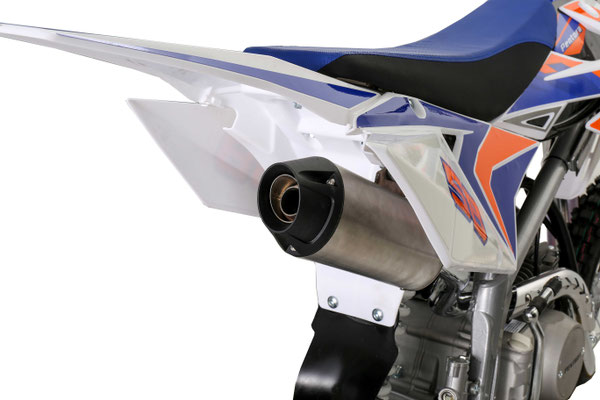

排气型式 muffler | aluminum muffler |
车架型式 frame | φ35 material |
后平叉型式 rear swing arm | Sheet metal forming in one |
额定载质量kg Max load | 100 |
空车净重kg NW | 75 |
装箱毛重kg Gw | 95 |
包装方式 packing way | take off fr. suspension, packed by steel frame and carton |
装箱尺寸 packing size | 1400*650*380 |
