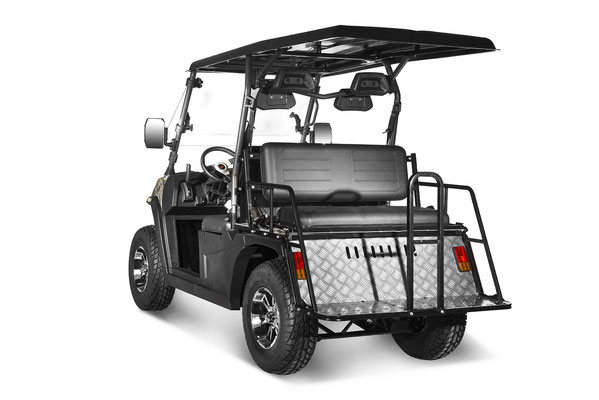

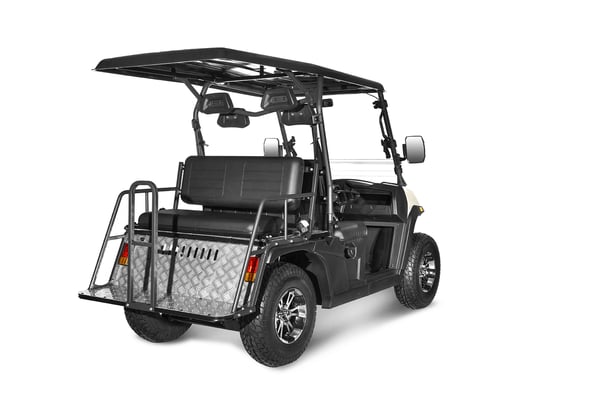

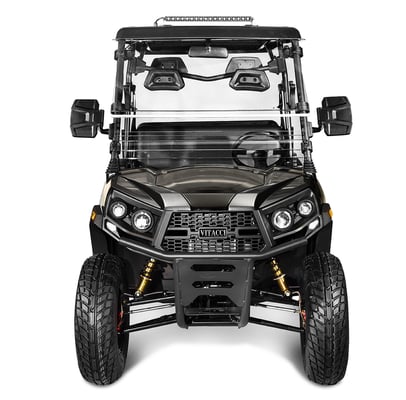

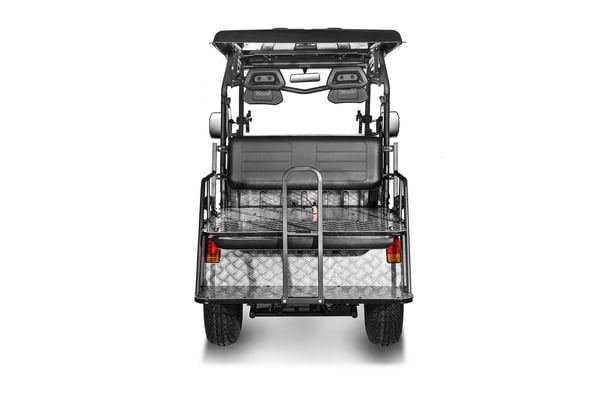

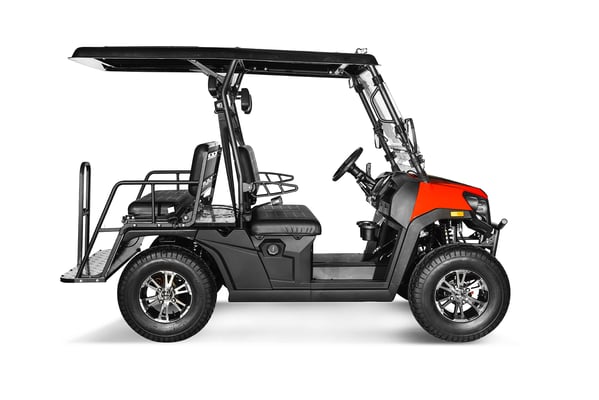

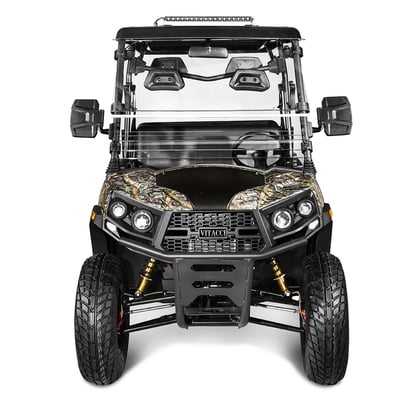

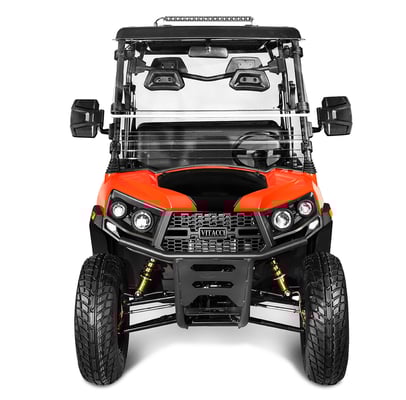

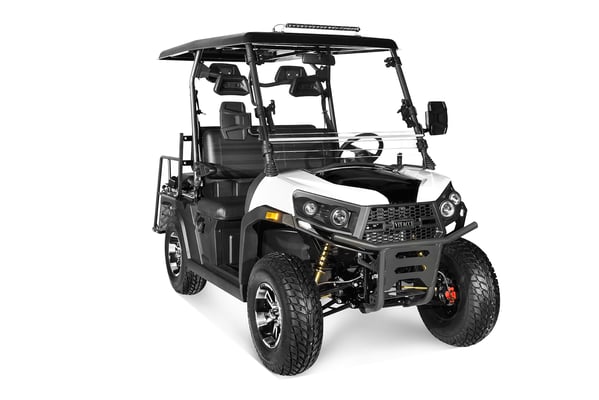

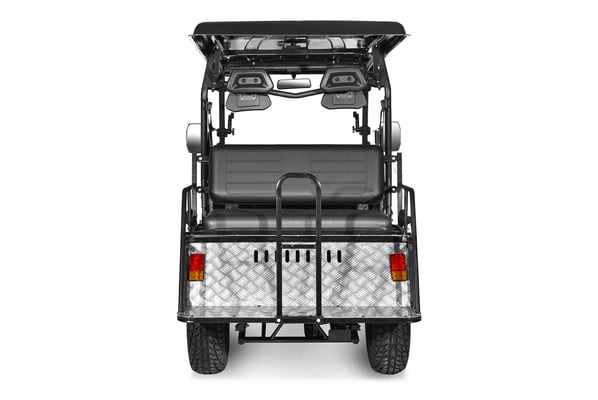

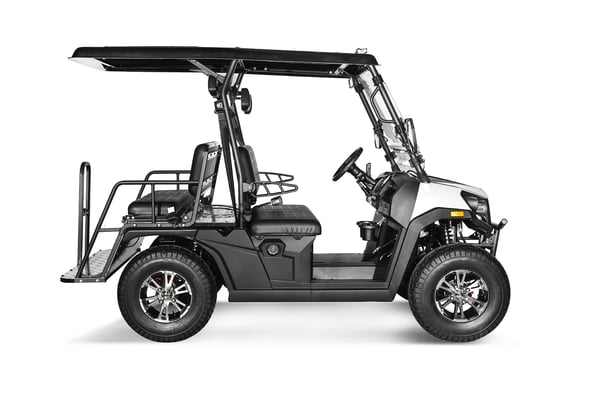

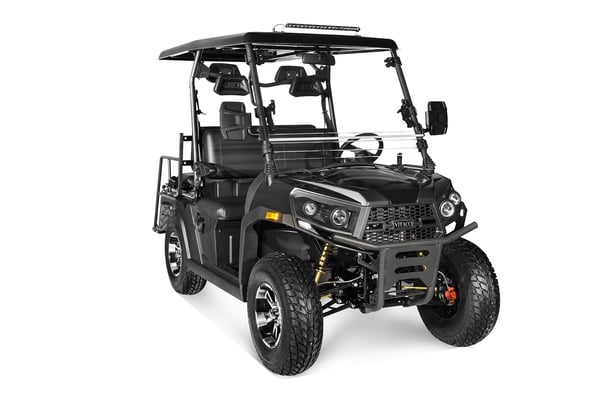

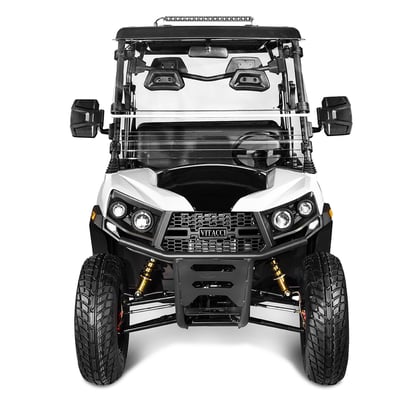

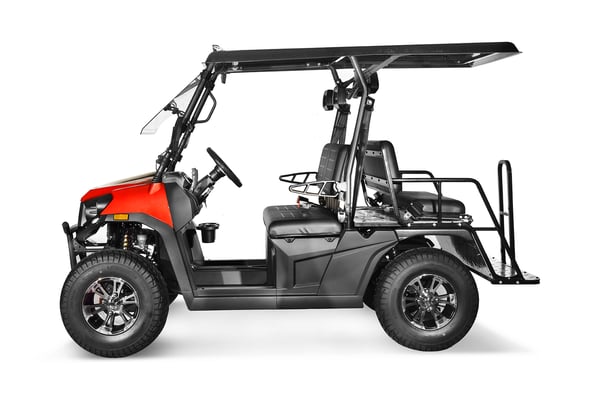

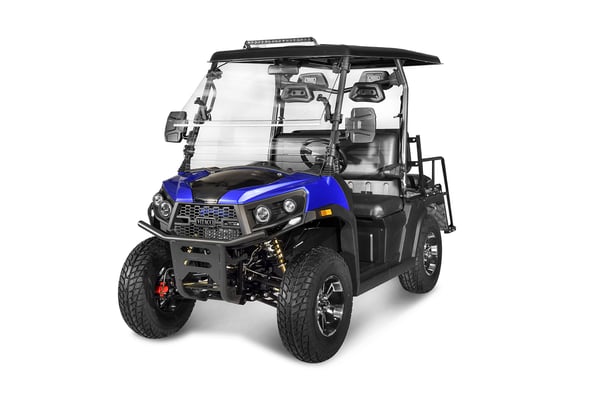

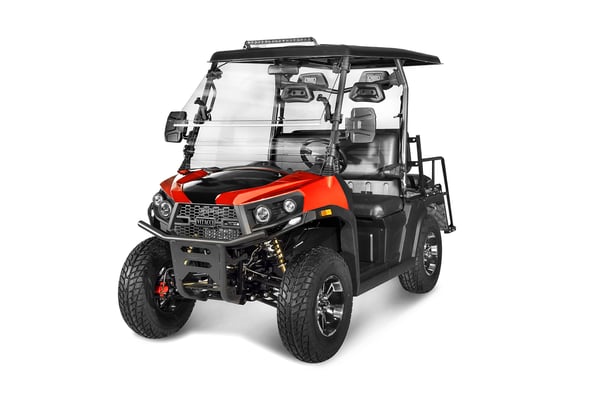

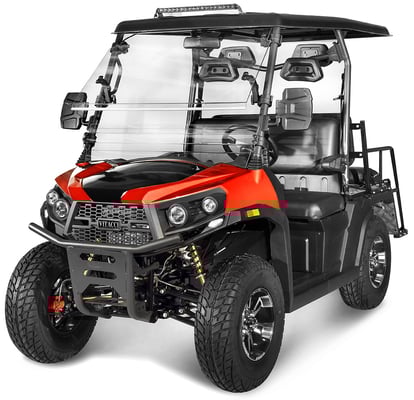

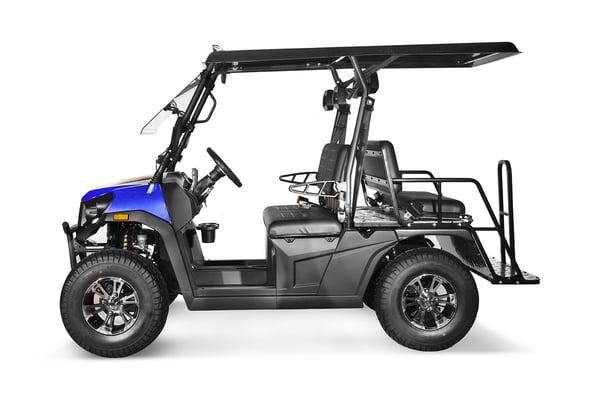

ROVER 200 EFI

Items

Specification

Vehicle dimension (L×W×H)

2843*1340*1870/ 112*52.8*73.6Inch

Dry weight

357KG/785.4LBS

Wheelbase

1840mm/72.4 Inch

Front Tread

1120mm/44 Inch

Rear Tread

975mm/38.4 Inch

Front axle loading

135KG/297Lbs

Rear axle loading

222KG/488.4Lbs

Top speed

41KM/H or 25miles /H

Maxi Climbing angles

15°

Steering radius

3.6m/141.7 Inch

Loading capacity

23units/40HQ

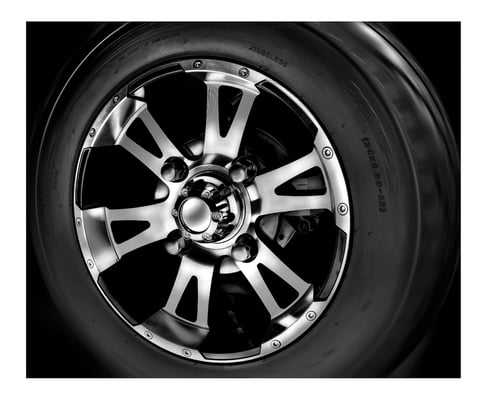

Front & Rear tire size

24 x 8-12 Inch



Ground clearance

155mm/6.1 Inch

Steering angel

Inner 29°, Outer 26.6°

Fuel capacity

23L/5.06 Gallon



Suspension Front

Double A-Arm Independent Shock

Suspension Rear

Single shock swing arm

Front suspension travel

110mm/4.3 Inch

Rear suspension travel

100mm/3.9 Inch









Brake system

Hydraulic Disk

Parking system

Mechanical parking

Final Drive

Chain-drive

Battery information

12V 9Ah



Ignition system

C.D.I

Engine type

4-stroke, Single-Cylinder, Oil-cooled

Displacement

169cc

Max power

7.2kw(7500r/min) /9.65HP (7500r/min)

Max torque

11.4N.m/4500 RPM







ASSEMBLY VIDEO

Download
Rove Assemble Procedure List.pdf
Adobe Acrobat Document 5.6 MB
Download
Rove service manual.pdf
Adobe Acrobat Document 6.2 MB
Download
Parts diagram and list for ROVER 200 EFI
Microsoft Excel Table 16.9 MB
