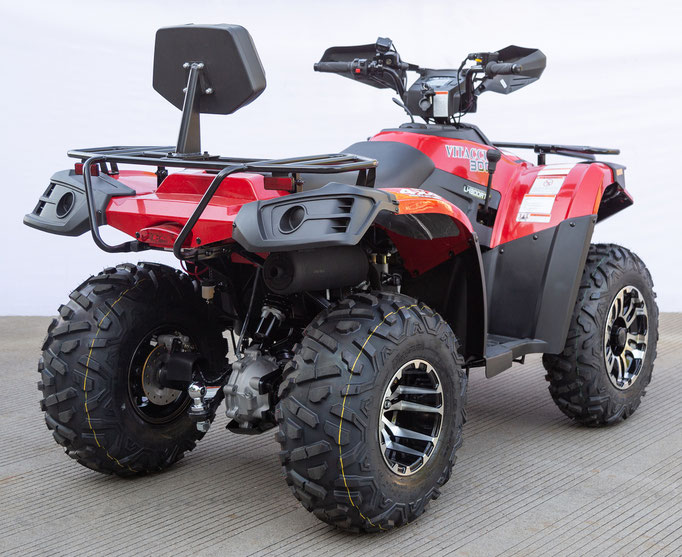

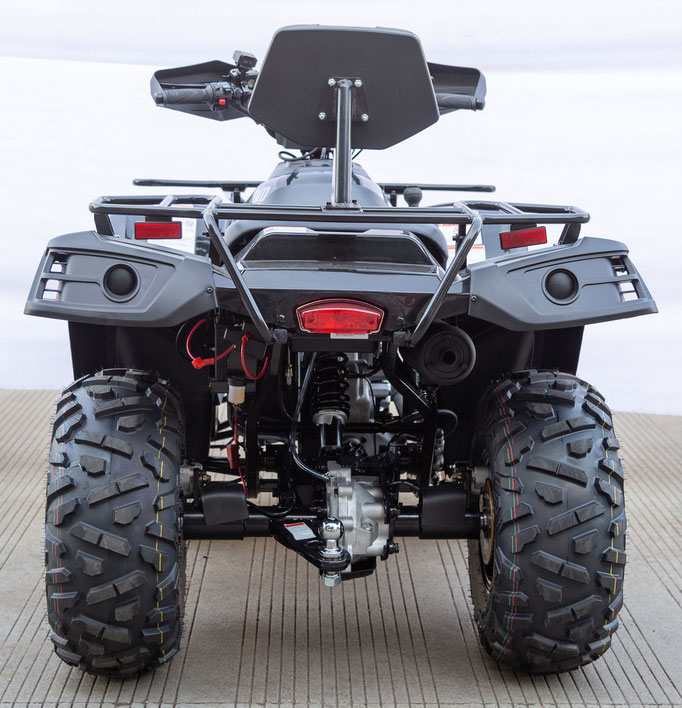

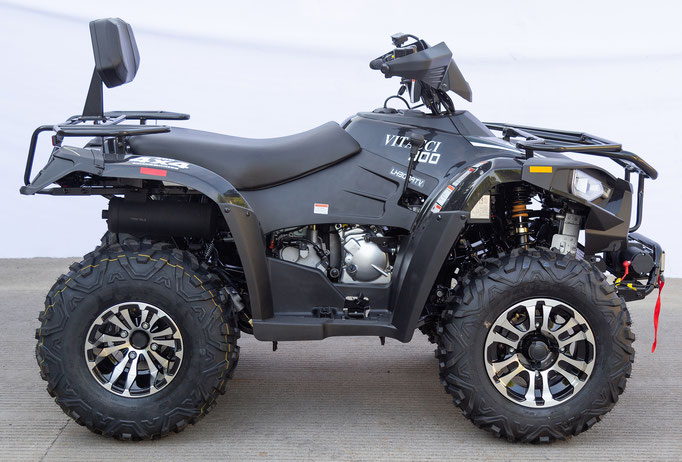

TERMINATOR 300 - 4X4
TERMINATOR 300
| Vehicle specification | |
| Overall Vehicle Size (L x W x H) | 83x46x 50 in |
| Ground Clearance (inch) | 7.2 in |
| Wheelbase (inch) | 51 in |
| Weight with full equipment | 618 lbs |
| Front / Rear Brakes | Two sides hydraulic disc |
| Parking Brake | Front / Rear hand brake,Foot brake |
| Front Tires | AT24X8-12 |
| Rear Tires | AT24X11-10 |
| Front Suspension | McPherson independent suspension |
| Rear Suspension | Socket centering structure |
| Fuel Capacity | 3.8 gallons |
| Engine specification | |
| Engine model | LH173MN |
| Engine Type | Carburetor, 4 Stroke, Single Cylinder, SOHC, Water Cooling |
| Bore & stroke | 2.85*2.63 in |
| Volumetric Compression Ratio | 10.3:1 |
| Displacement | 257cc |
| Drive System Type | 2WD or 4WD |
| Ignition type | T.C.I |
| Start type | Electric |
| Maximum power (Kw /r/min) | 22 HP @ 6500 RPM |
| Maximum Torque (Nm /r/min) | 14.8 lb-ft @ 5500 RPM |
AGE REQUIREMENT: (G16) 16 year old and up
