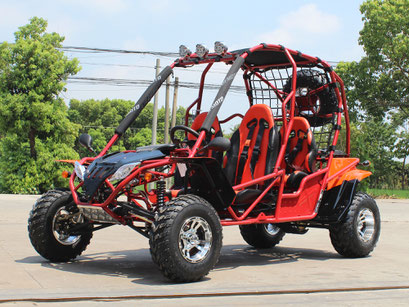

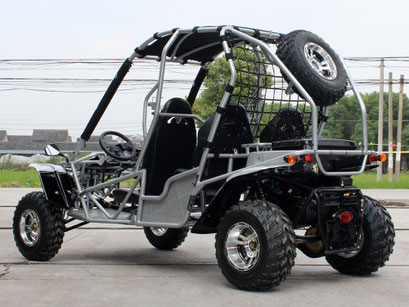

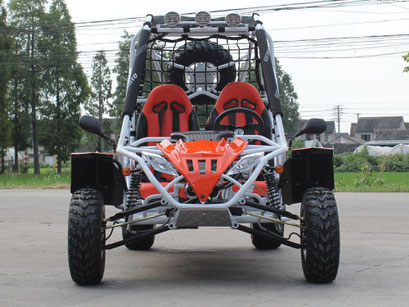

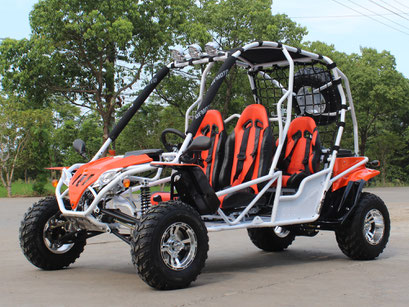

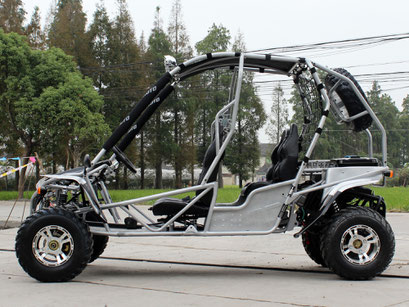

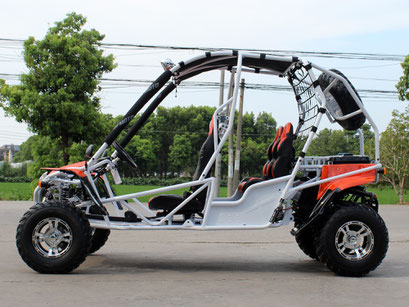

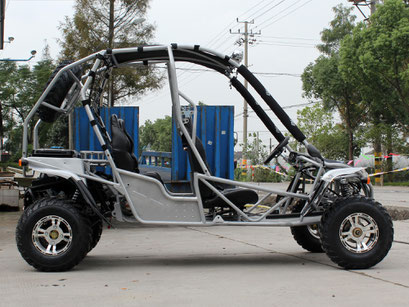

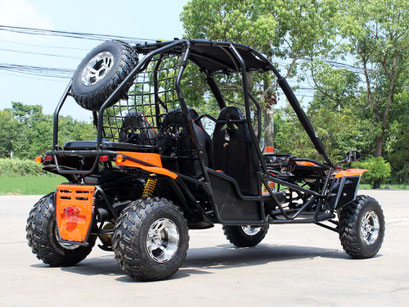

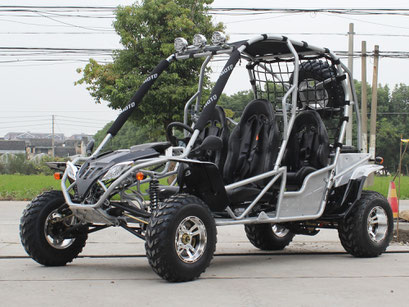

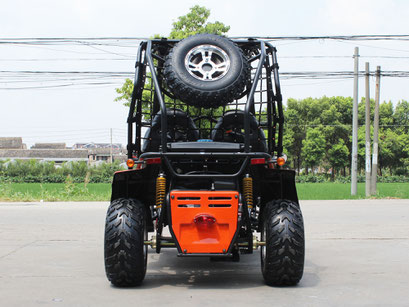

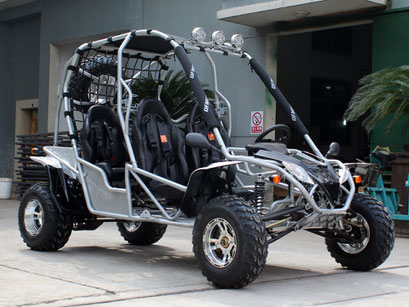

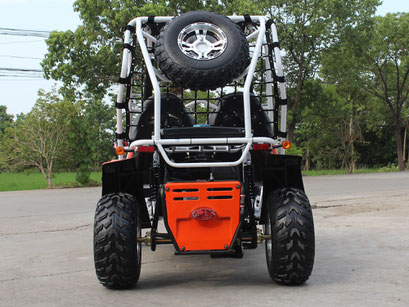

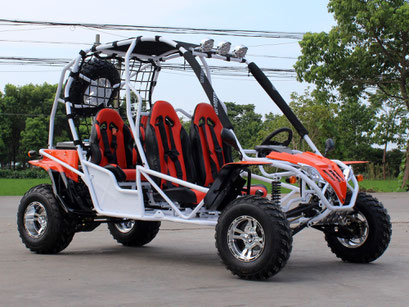

Jaguar 4 Seats (200GKH-A)

 Technical specification

 1) Engine type: single cylinder-horizontal type -4-stroke air-cooled

 2) Displacement(ml): 168.9

 3) Max Power(kw/r/min): 8.3/8000

 4) Max Torque(NM/r/min): 11.0/6000

 5) Ignition system:  CDI

 6) Gear:   CVT(F+N+R)

 7) Fuel tank capacity(L): 10

 8) Economical oil exhaust(L/100km):  4.5

 9) Max speed(km/h):  60

 10) Transmission: Belt Drive +Chain Drive

 11) Brake Type: Disc/Disc Brake

 12) Wheelbase(mm): 2310

 13) Ground clearance(mm): 180

 14) Tires (front / rear):  21*7-10/22*10-10

 15) N. W.(kg):280



Download
ASSEMBLY INSTRUCTION-DF200GKA
ASSEMBLY INSTRUCTION-DF200GKA.pdf
Adobe Acrobat Document 2.0 MB
