ENGINE INFO

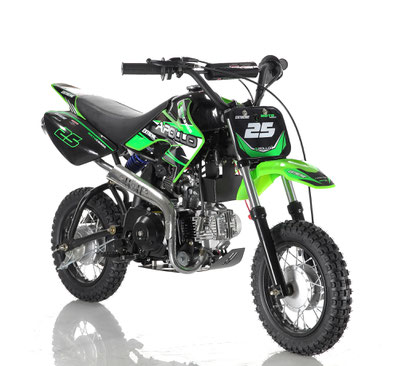

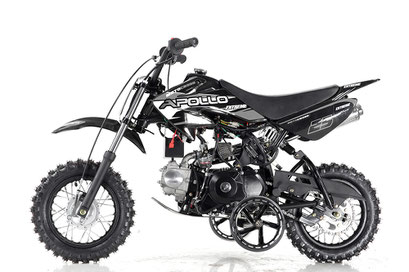

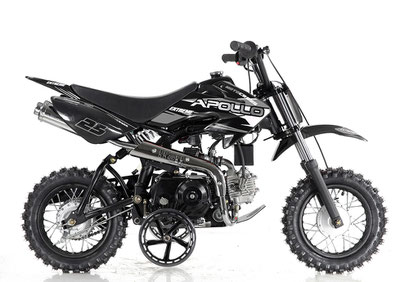

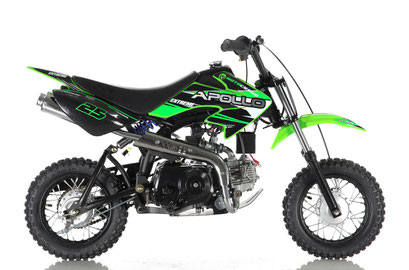

 DB-25 70cc FULLY Automatic

CHASSIS ETC.



Engine type:

1P47FMD  4-STROKE,SINGLE CYLINDER,AIR COOLED

Clutch:

AUTOMATIC

Engine brand:

APOLLO

Transmission:

AUTOMATIC

Displacement:

70cc

Driveline:

CHAIN

Cooling:

AIR COOLED

Driving wheel:

*

Max horsepower:

6HP / 4.5 KW

Suspension,front/rear:

*

Max torque:

9.0/5500

Brakes,front/rear:

DRUM/DRUM

Bore*stroke:

47MM*41.8 MM

Brake operation:

FRONT:HAND;REAR:FOOT





Tires,front/rear:

F-2.50-10  / R-2.50-10

Fuel capacity/type:

3 L

Ignition:

C.D.I

Weight,G.W./N.W.:

180.4LBS /149.6LBS (82 KG/ 68 KG )

Starting system:

ELECTRIC STAR

Max load:

132LBS / 60KG

Battery:

YES

Carburetor brand:

JINKE

Engine oil:

15W/40-SEGB 11121

Wheelbase:

36.61" / 930 MM

Gear oil:

*

OA  L*W*H:

57.48"X20.47"X32.68"/ 1460*520*830 MM

Height to seat:

25"

Colors available:

BLACK, RED,YELLOW,GREEN,BLUE,ORANGE

Min ground clearance:

5.79" / 147 MM

Decals(Y/N):

Y

Carton size:

5.31"*14.17"*27.95" / 135*360*710 MM

Tool kit(Y/N):

Y

Remote start(Y/N):

N

Remote engine stop(Y/N):

Remote alarm(Y/N):

N
