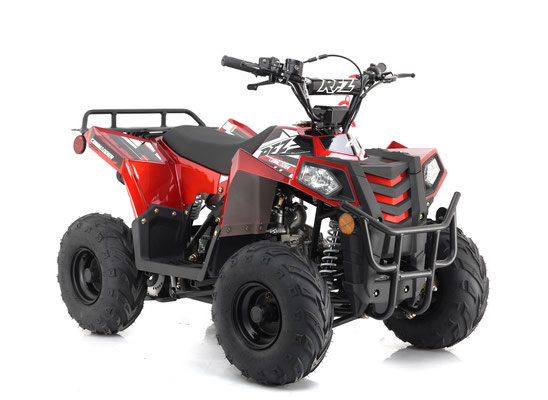

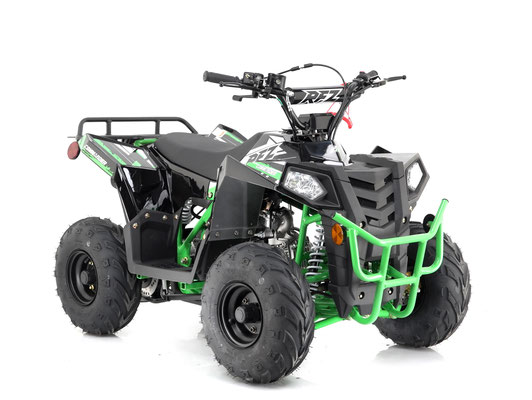

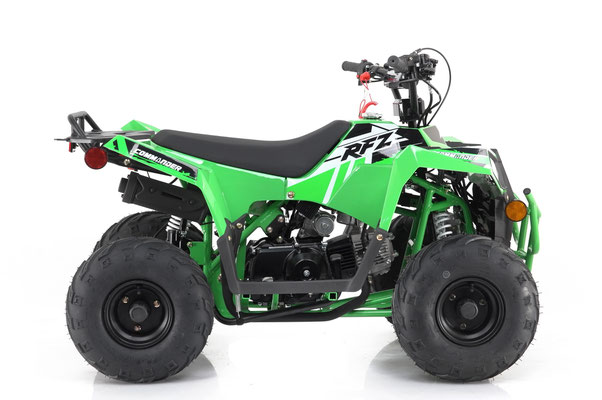

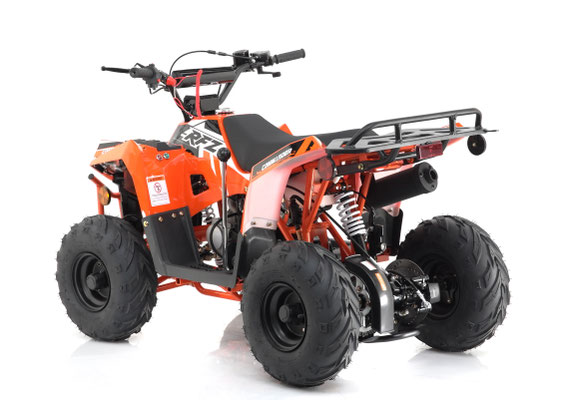

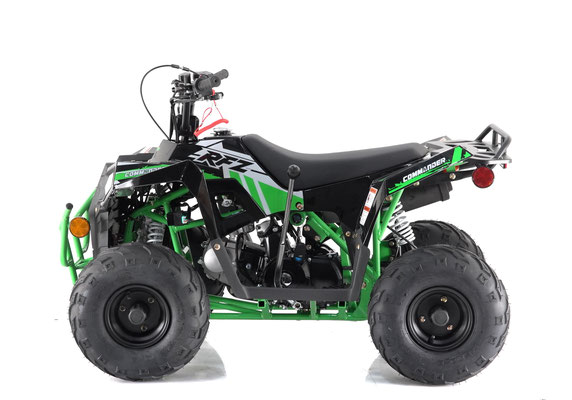

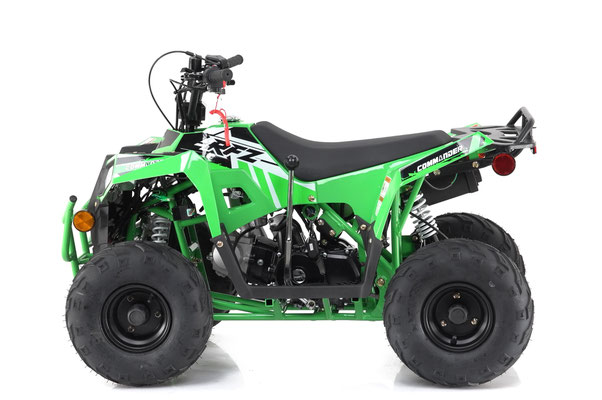

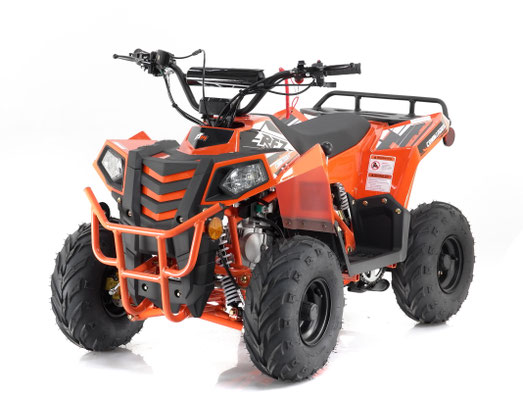

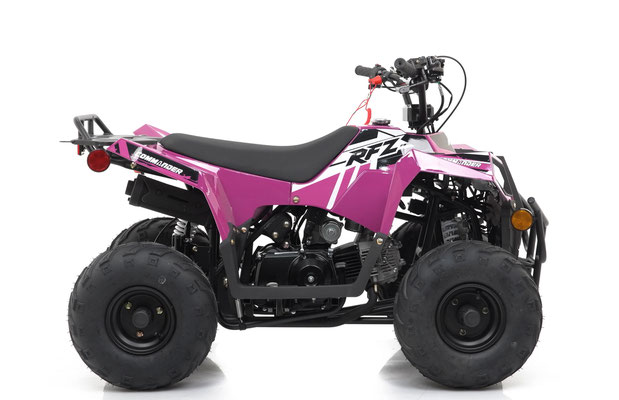

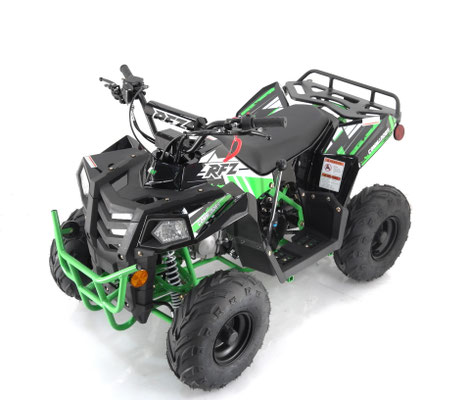

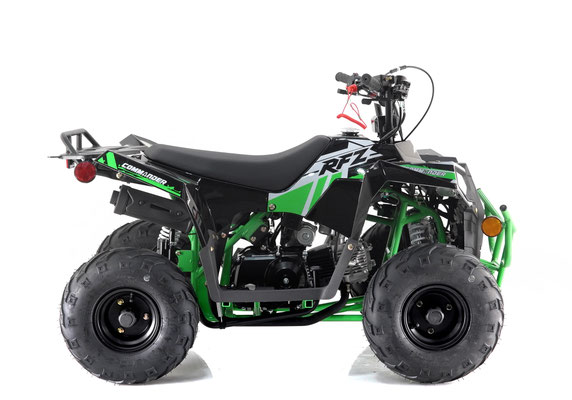

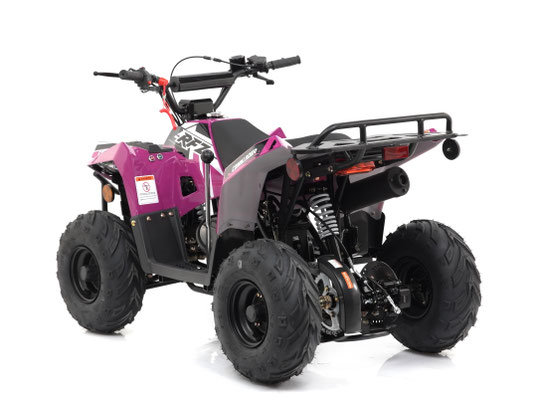

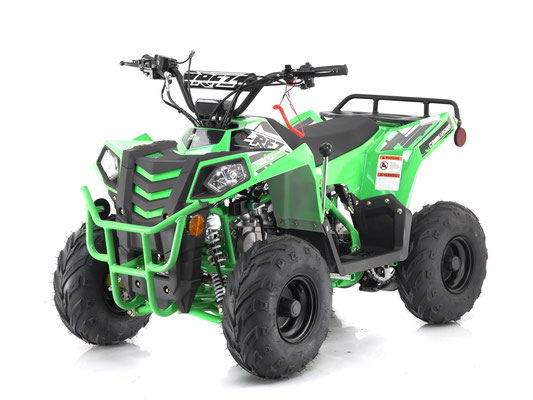

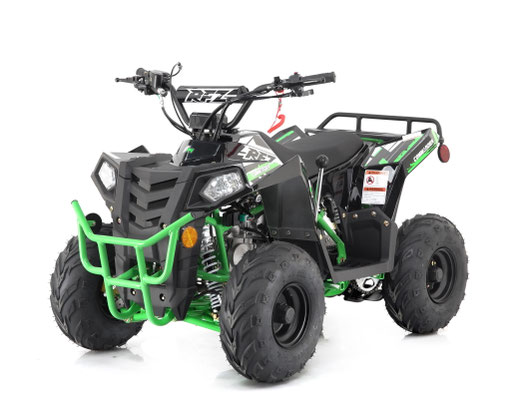

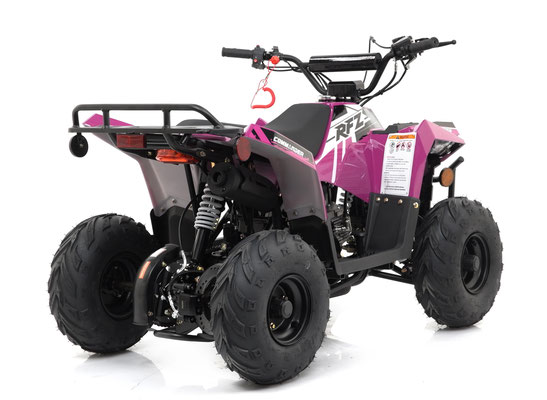

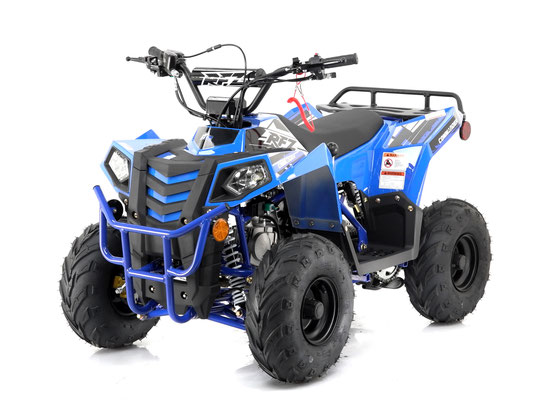

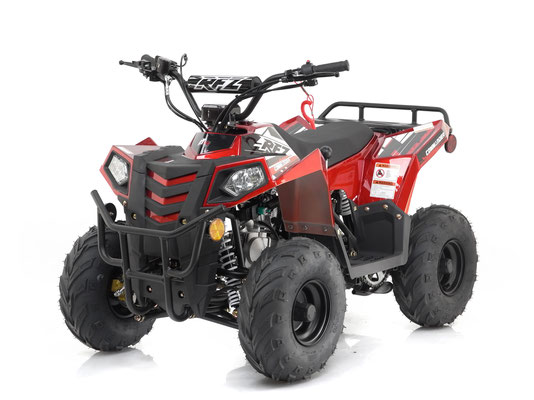

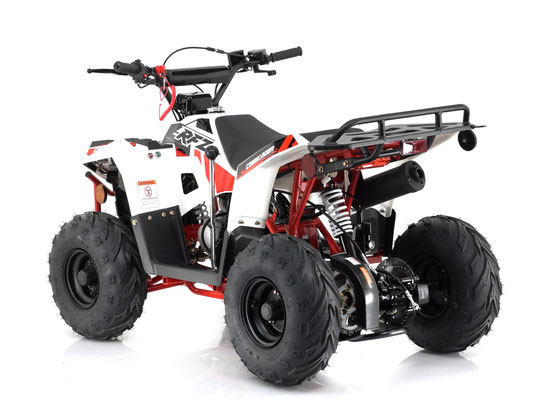

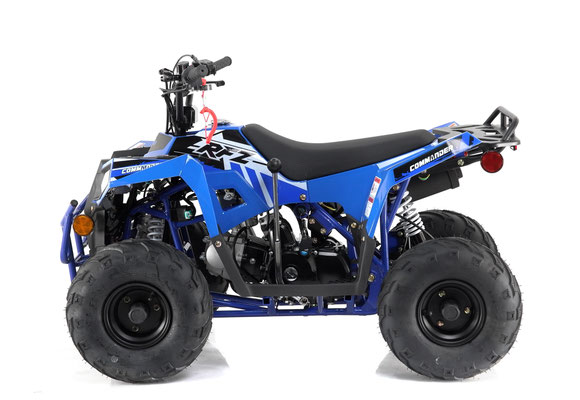

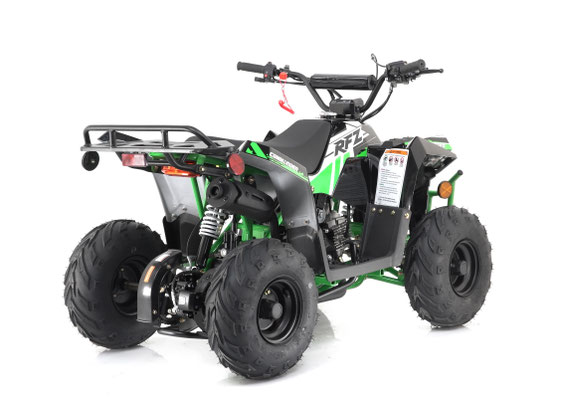

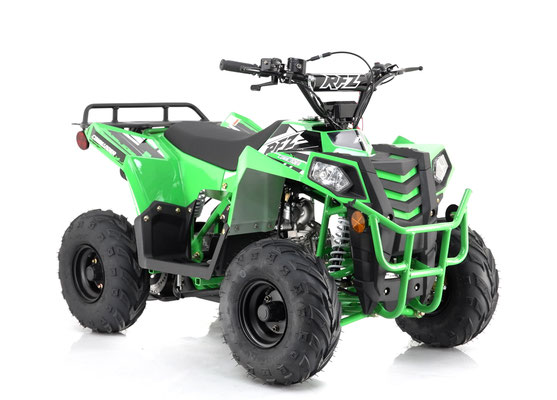

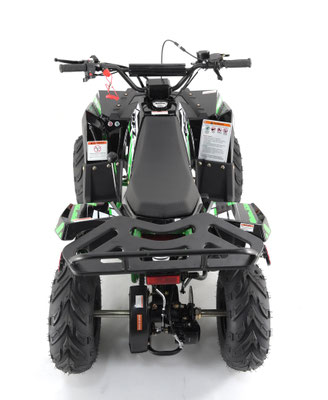

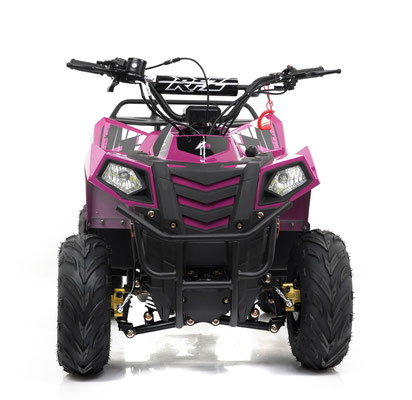

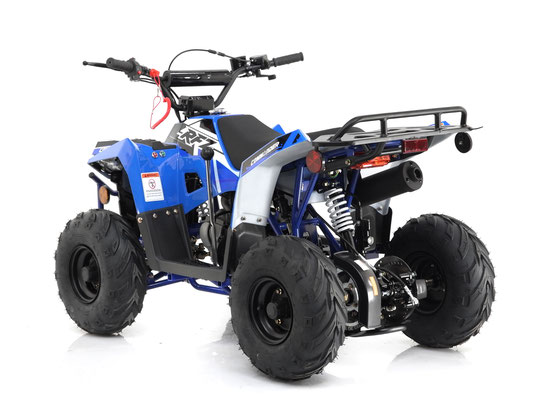

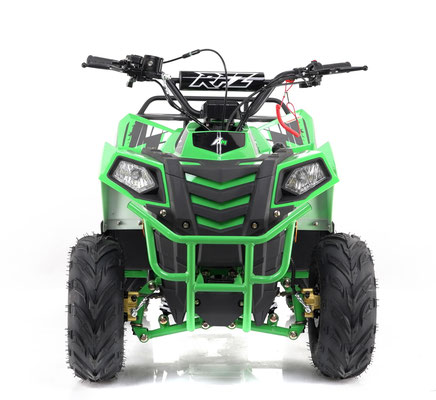

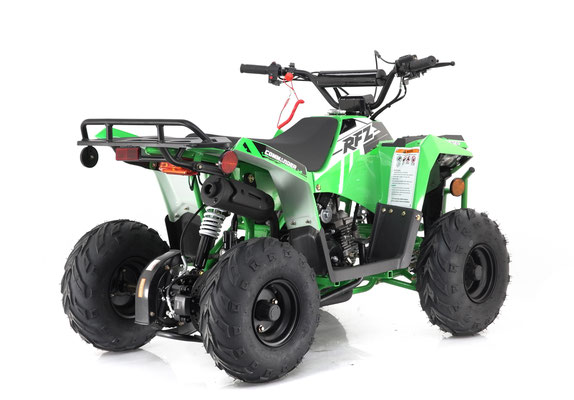

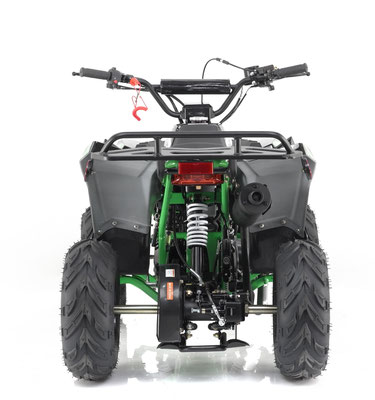

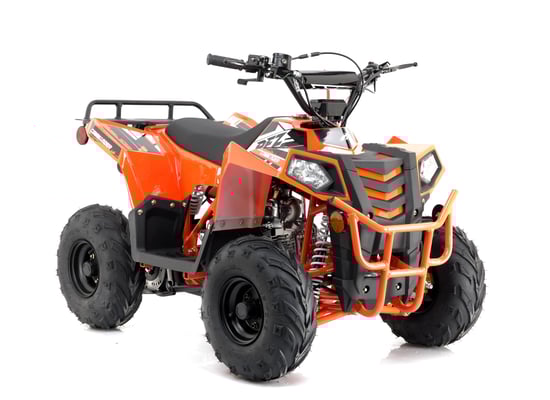

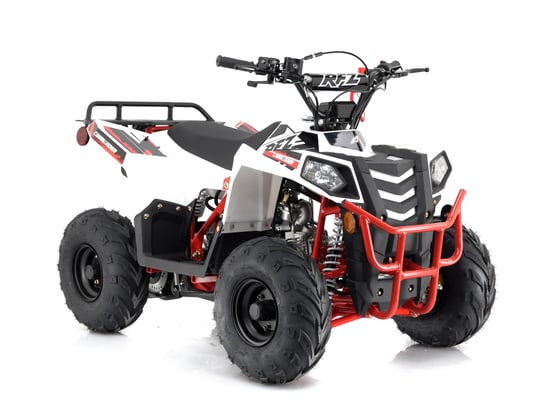

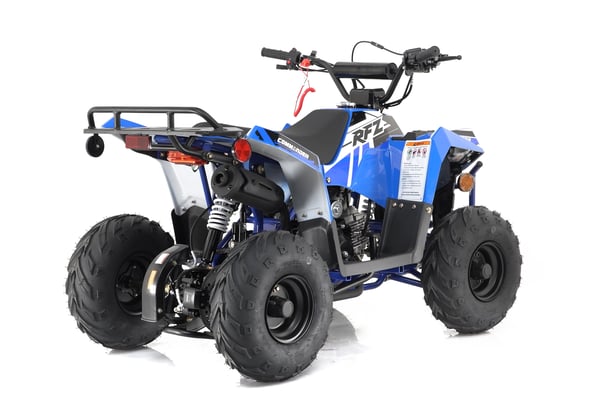

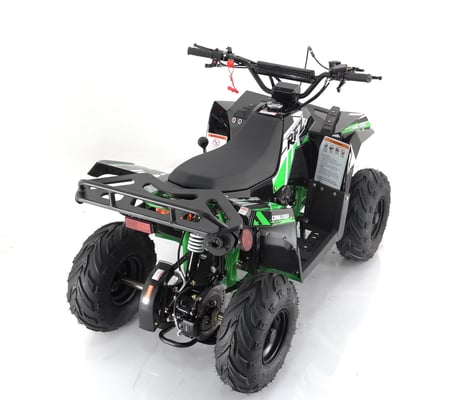

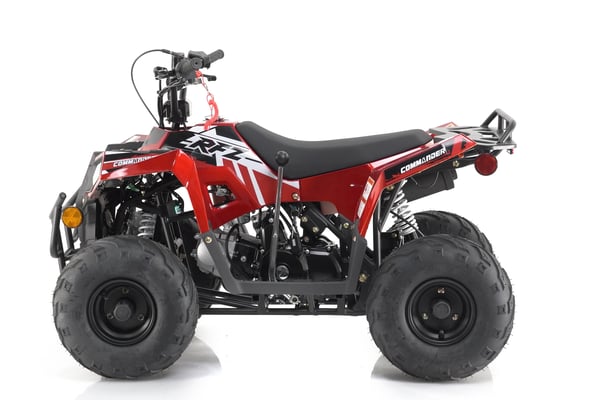

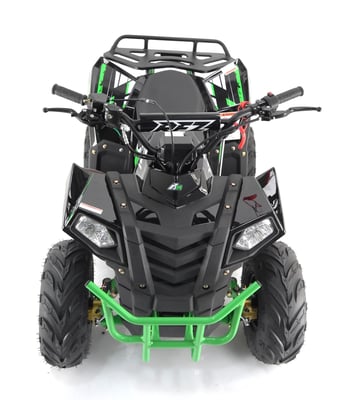

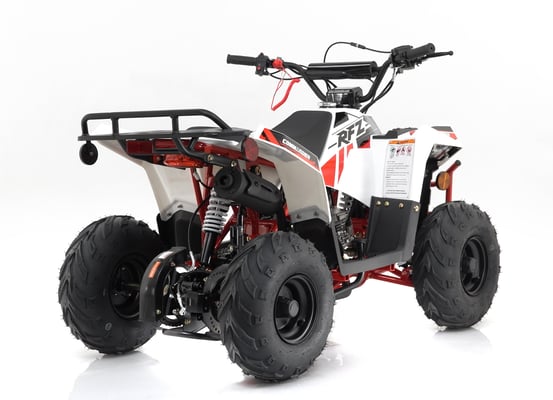

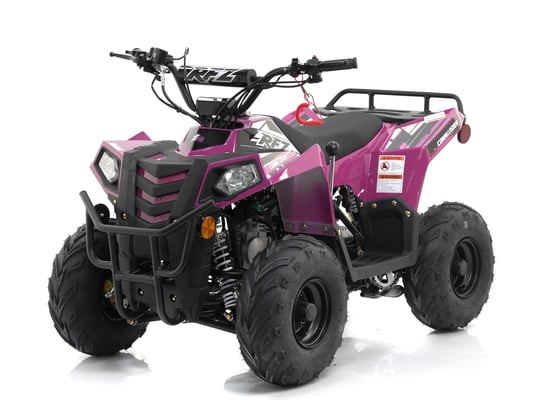

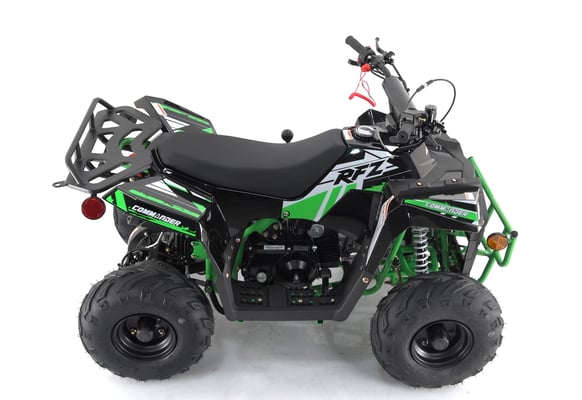

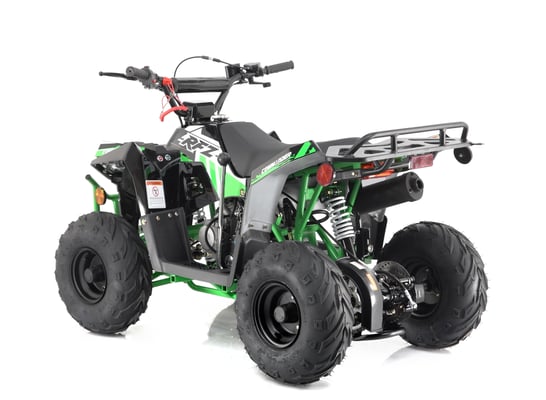

MINI COMMANDER 110


MINI COMMANDER 110 6" specification

Model name AGA-10
EPA Model VRX110-10-A1
Vichel Class Y6+ class
Overall dimensions L×W×H 1200mm×745mm×785mm
Wheel base 805mm
front wheel distance 615mm
rear wheel distance 550mm
ground clearance 90mm
Seat height 580mm
Curb weight 86kg
rated load mass 70kg
Max speed 24km/h
minimum turning radius 2500mm
maximum gradability 10°

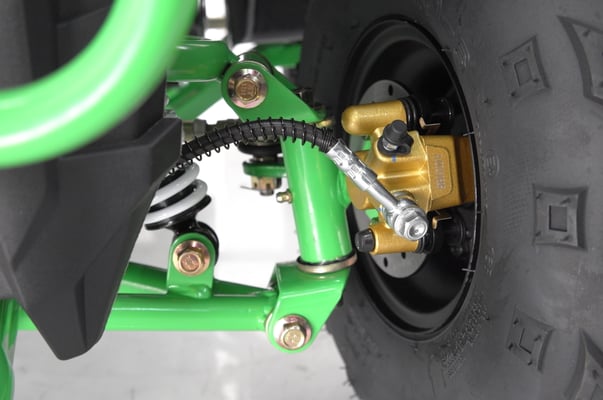

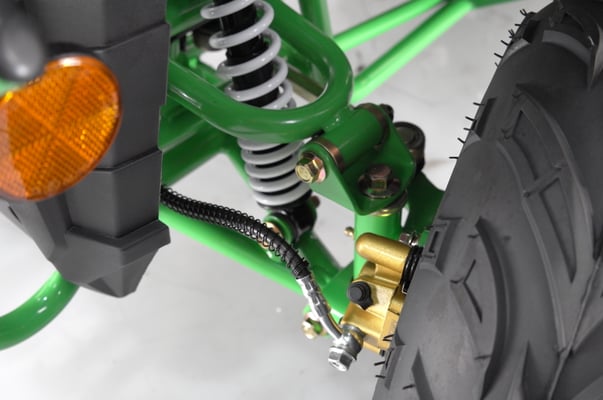

front brake type front  hydraulic brake

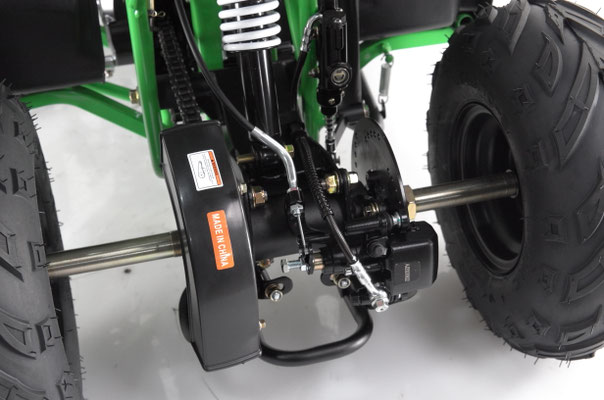

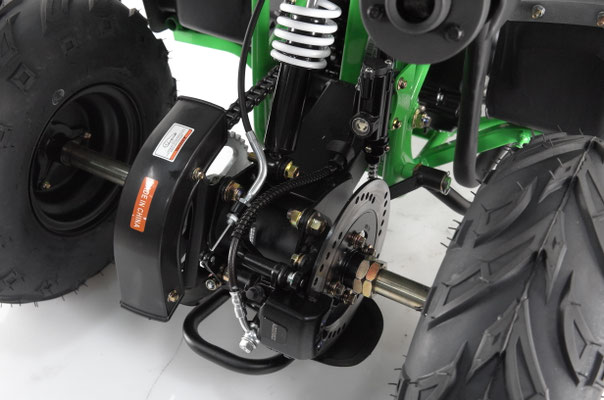

rear brake type rear hydraulic brakewith parking brake

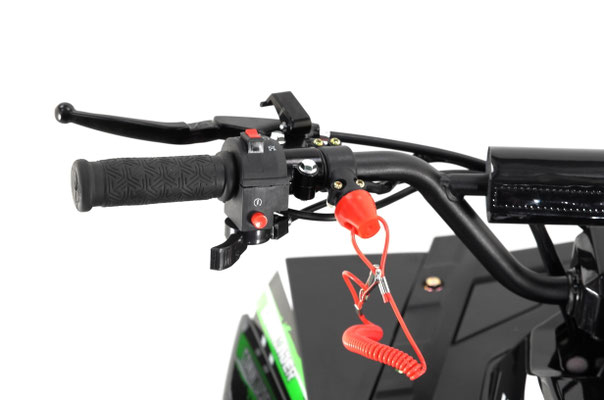

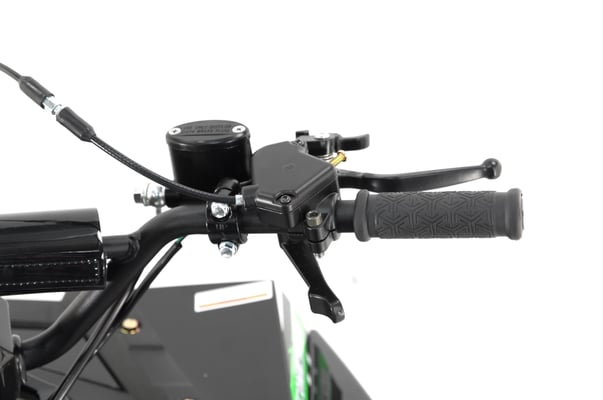

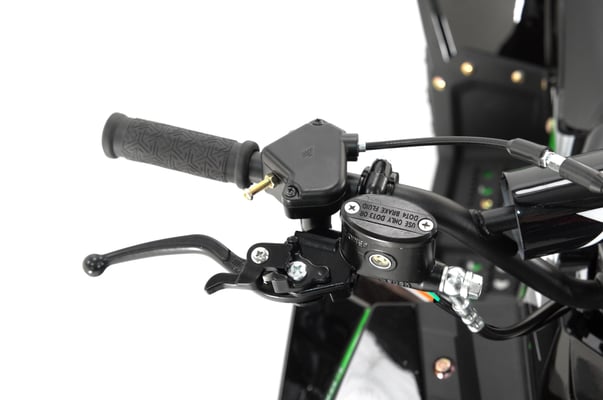

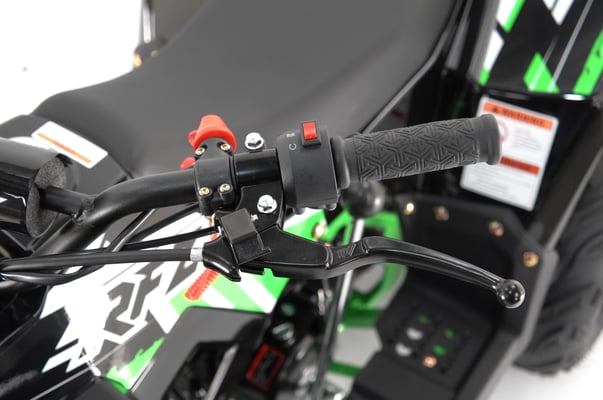

brake operation Front hydraulic brake by hand , rear hydraulic brake by foot pedal
front rim steel
rear rim steel
front tire size 145/70-6
rear tire size 145/70-6
front tire air pressure 10P.S.I.
rear tire air pressure 10P.S.I.
transmission Chain
packing size 1140mm×700mm×585mm
Net weight 75kg
Gross weight 88kg
Loadign quantity 136pcs/40'HQ
Transmission type Semi-automatic 1+R

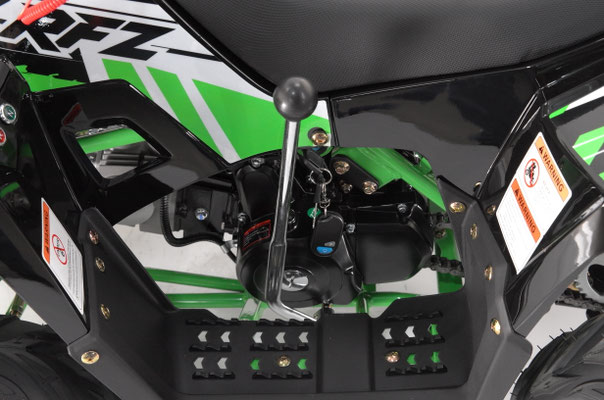

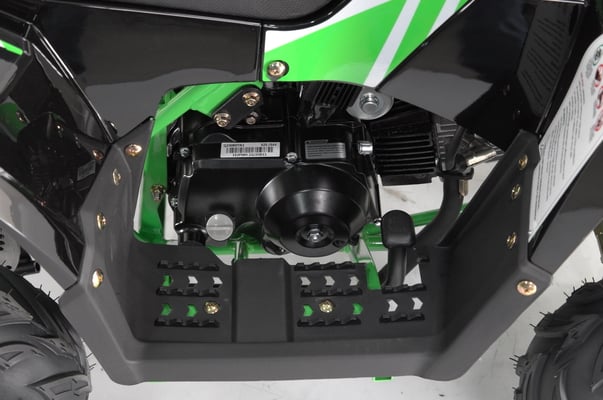

Engine type 4 stroke,Single cylinder , air cooling
displacement 106.7cc
Bore×Stroke 52.4mm×49.5mm
Max power 5.0kW/7500rpm
Max torque 7.0N.m/5500rpm
ignition CDI
start electric start
fuel grade RQ-93
Lubrication Pressure and splash lubrication
Engine oil grade SAE15W/40
