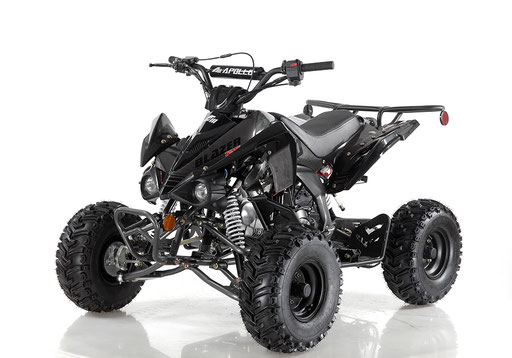

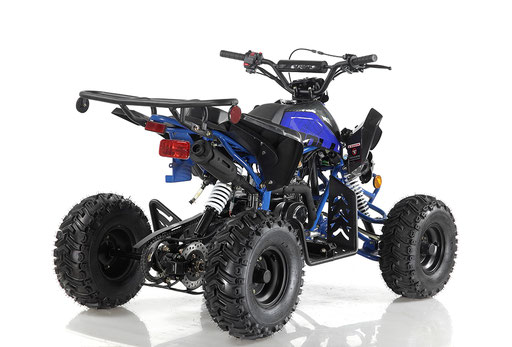

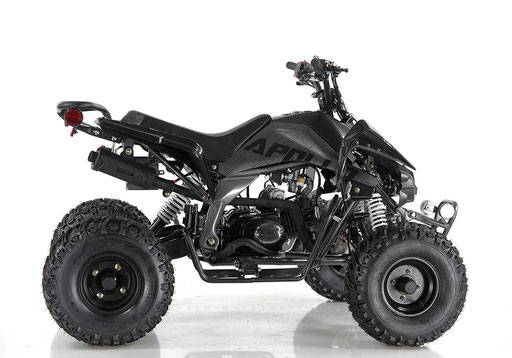

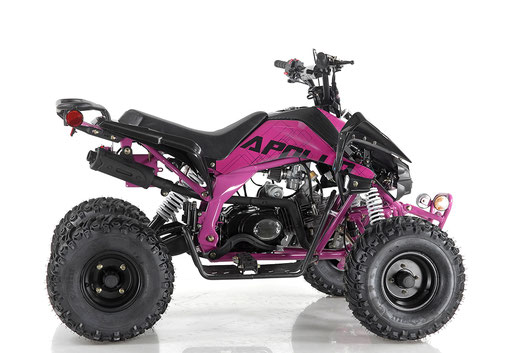

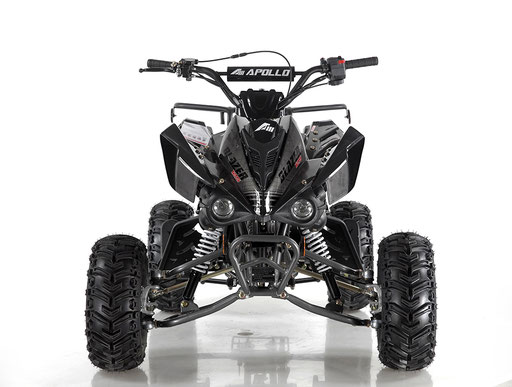

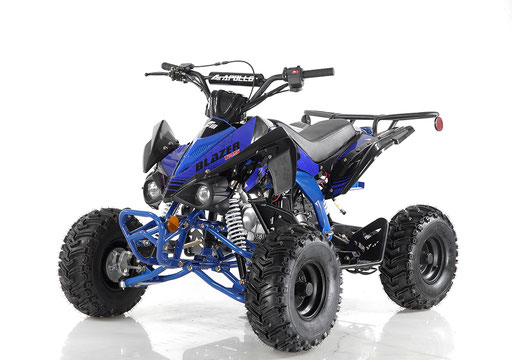

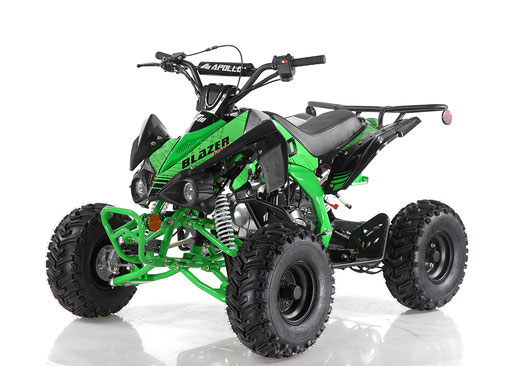

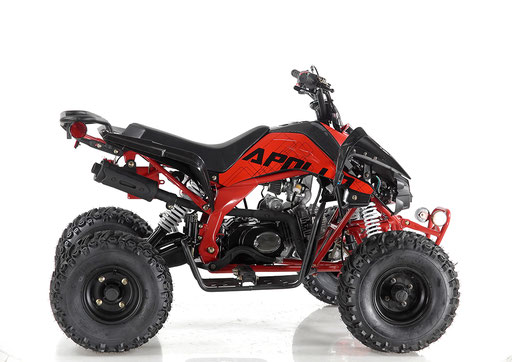

Engine  type: 125cc, single cylinder, air cooled, 4 Stroke

Full-automatic  with Reverse

Model: AGA-2A
Start mode: electric start only
Battery:12V5AH
Wheelbase: 950mm
Seat Height: 730mm
Transmission: Chain
ground clearance: 130mm
Fuel tank capacity: 2.3L
Wheel size: front :front & rear 16×8-7
Brake system: (F/R): drum/disc
Max. speed: 50km/h
Rated loading: 100KG
Dry weight: 105kg
Dimensions (L*W*H): 1440×980×990mm
Carton dimensions (L*W*H): 1310×770 ×640mm

Download
BLAZER APOLLO-PARTS LIST
Blazer parts list.pdf
Adobe Acrobat Document 628.0 KB
