Vehicle specification
|
Overall Vehicle Size (L x W x H) inch
|
92×57×72 in
|
Ground Clearance (inch)
|
5.5 in
|
Wheelbase (inch)
|
69.3 in
|
Weight with full equipment (lbs)
|
837.7 lbs
|
Front/Rear Brakes
|
Four Disc brake
|
Parking Brake
|
Hand-Actuated
|

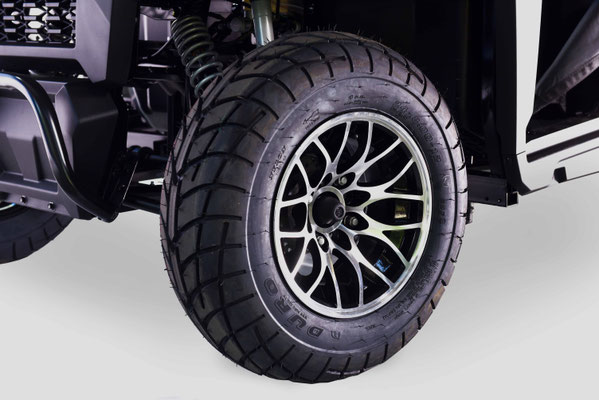

Front Tires
|
AT22 x 7-10
|
Rear Tires
|
AT22 x 10-10
|
Front Suspension
|
Dual A-Arm
|
Rear Suspension
|
Swingarm Dual Shocks
|
Cargo Box Dimensions (L x W x H) inch
|
21.8×49.6×6.5 in
|
Box Capacity (lbs)
|
441 lbs
|
Fuel Capacity
|
3.1 gallon
|
Engine specification
|
Cooling
|
Air & Oil
|
Engine capacity (cc)
|
177.3 cc
|
Volumetric Compression Ratio
|
9.6:1
|
Drive System Type
|
2WD
|
Engine Type
|
Single Cylinder 4-Stroke
|
Fuel System/Battery
|
Electronic Fuel Injection
|
Ignition type
|
T.C.I
|
Start type
|
Electric
|
Ignition Coil
|
ECU
|
Horsepower
|
12
|
Transmission/Final Drive
|
CVT F/N/R; Chain
|
Maximum power (HP /r/min)
|
12hp/7000~7500RPM
|
Maximum Torque (Nm /r/min)
|
13N·m/6000~6500RPM
|
Top Speed (mile/h)
|
30 mile
|
