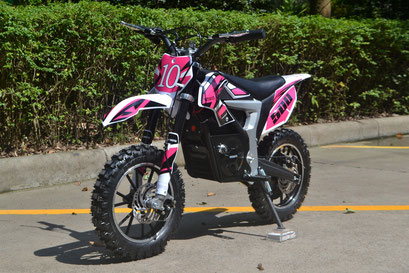

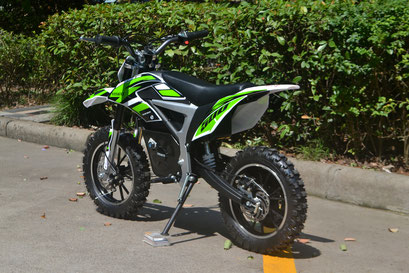

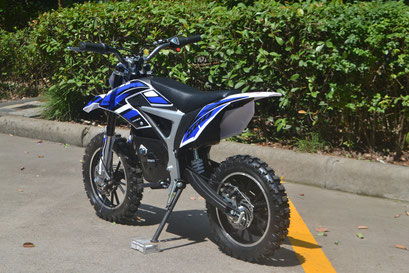

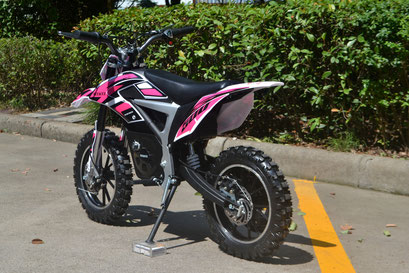

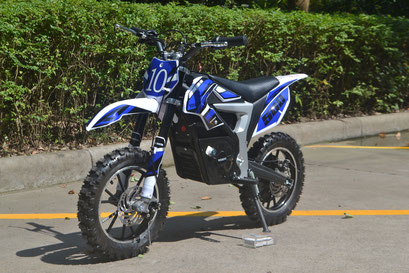

Model name DB-10 500Watt (E-MD04)



Standard specification:

Engine: 500W 24V neodymium magnet DC motor

Battery: 2 X 12V 12AH lead acid battery

Range per full charge: ~15KM


Charger: 100-240V/1.5A

Transmission: intelligentized controller,3 speed adjustable

Final drive: 11T / 80T, 25H# chain

Wheel & tires: wire spoke style, heavy duty alum. rim with 2.5-10" tire

Max. speed: 24kmph

Max load capacity: 60kgs

Brake system: Front and rear mechanical disc brake

Suspension: Front upside-down fork, rear mono shock

Dimension (L* W * H): 1210* 570 * 780

Wheelbase: 800mm

Seat height:580mm

Min ground clearance: 220mm

Dry weight: 30kg

Carton size: 1100*320*550mm





E-MD04 500W 24V Parts List
E-MD04 500W24V parts catalog list.pdf
Adobe Acrobat Document 496.7 KB
