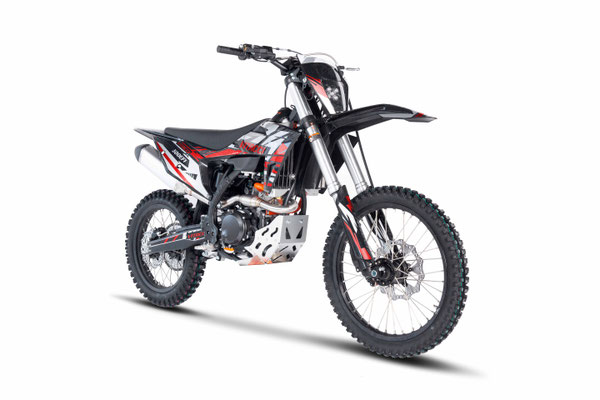

Model Name
|
K8-NC300
|
|

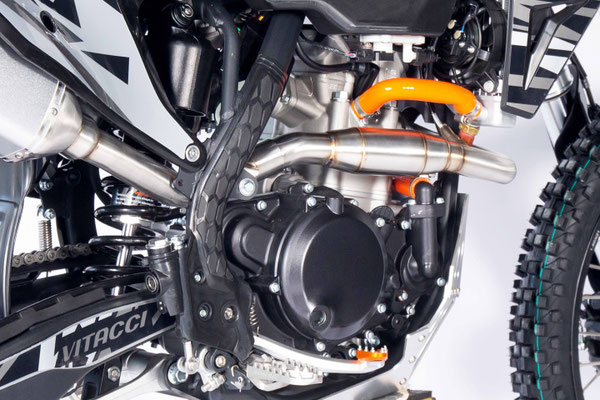

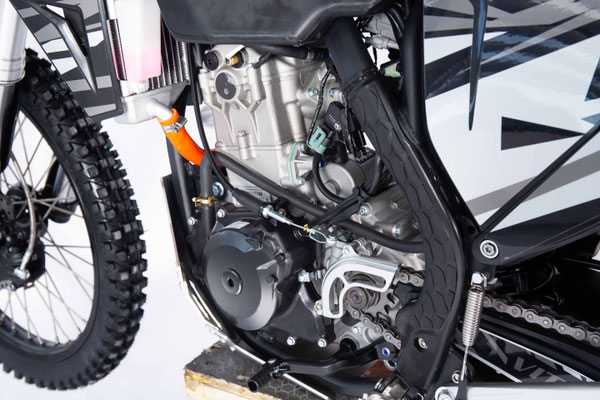

Engine
|
Engine Type
|
177 mm
|
|
Displacement
|
297 ml
|
|
Cooling System
|
Liquid
|
|
Number of Cylinder
|
Single Cylinder
|
|
Compression Ratio
|
11.6:1
|
|
Bore x Stroke
|
Φ84×53.6 (mm)
|
|
Max Power(Kw/r/m)
|
19.5/9000 Kw/r/min
|
|
Max Torque(N.m/r/m)
|
23.5/7000 N.m/r/min
|
|
Top Speed (Mph)
|
74.5 mph
|
|
Transmission
|
6-UP Manual Clutch
|
|
Reverse
|
NO
|
|
Starting System
|
E-Start
|
|

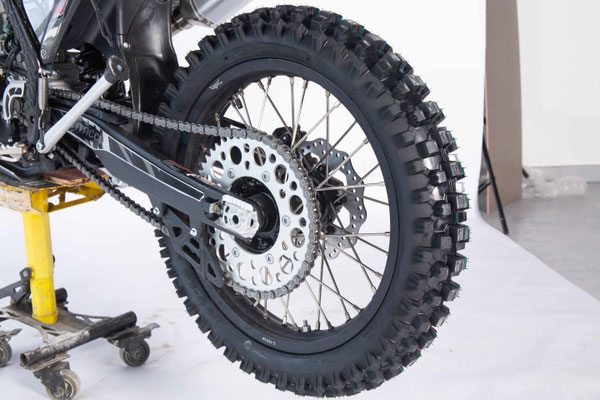

Final Drive
|
#520 Chain, 13T/51T
|
|
Ignition Type
|
DCI
|
|
Carburetor
|
//
|
|
Starter Battery
|
12V5AH
|
|
|
|
|
|
Frame/ Body / Suspension / Brakes
|
Frame
|
Perimeter Cradle Type Steel Frame
|
|

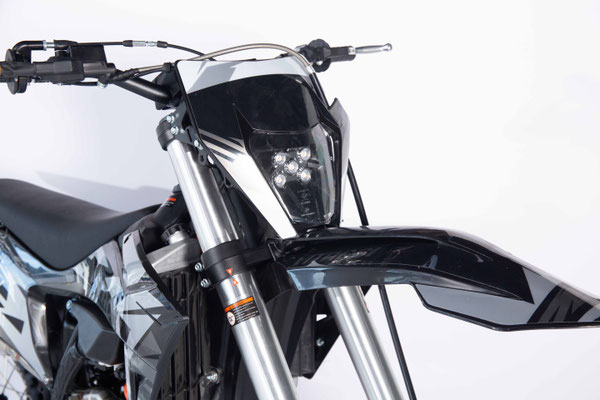

Front Suspension
|
Φ54*Φ60-940mm Inverted Hydraulic Forks
|
|

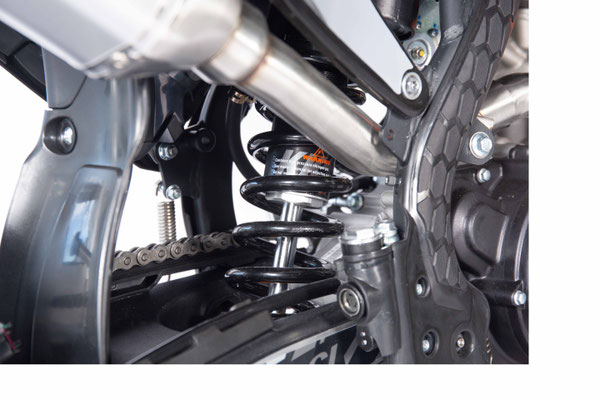

Rear Suspension
|
12*465 mm None-Adjustable Shock
|
|

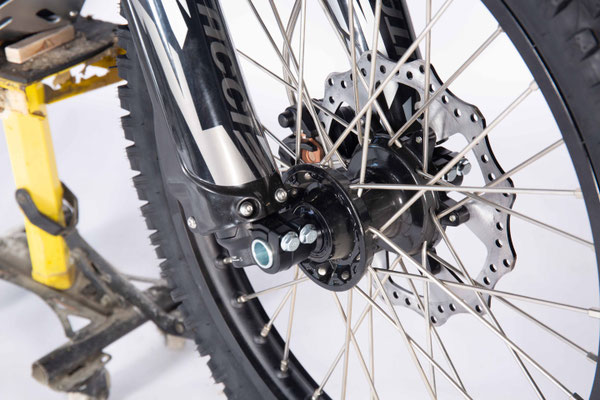

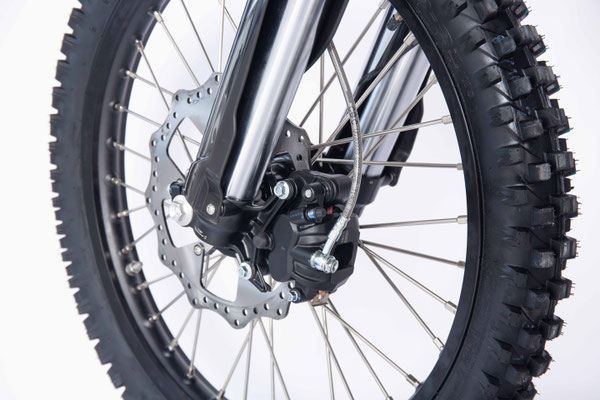

Front Brake
|
Hydraulic Dual Piston Caliper, 260 mm Disc
|
|

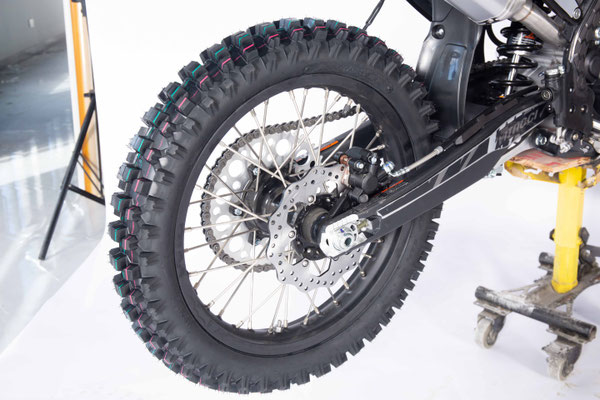

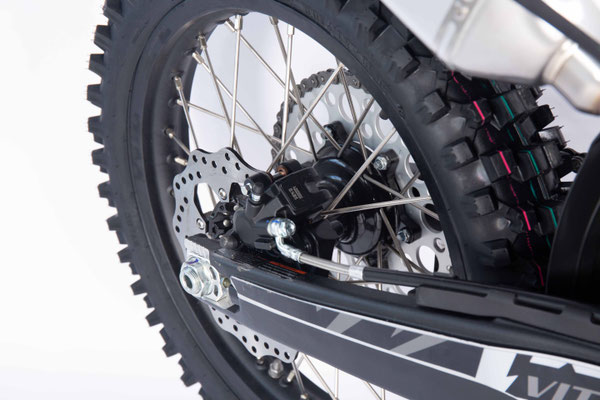

Rear Brake
|
Hydraulic Single Piston Caliper, 220 mm Disc
|
|
Front Tires
|
80/100-21
|
|
Rear Tires
|
110/90-18
|
|
Exhaust/Pipe
|
Stainless Steel Header Pipe & Silencer
|
|
|
|
|
|
Capacities / Dimensions
|
Weight Capacity (lbs)
|
264 lbs
|
|
Net Weight (lbs)
|
273.4 lbs
|
|
Gross Weight (lbs)
|
326.3 lbs
|
|
Overall Length (inch)
|
86.6 Inch
|
|
Overall Width (inch)
|
31.5 Inch
|
|
Overall Height (inch)
|
48 Inch
|
|
Carton DimensionsLXWXH (inch)
|
67.52*18.11*33.46 Inch
|
|
Seat Height (inch)
|
36.22 Inch
|
|
Wheelbase (inch)
|
53.15 Inch
|
|
Min Ground Clearance
|
14.18 Inch
|
|
Fuel Tank Capacity
|
6.5 L
|
|
|
|
|
|
Safety / Control
|
Engine Kill Switch
|
YES
|
|
Speed Limiter
|
NO
|
|
Foot Brake
|
YES
|
|
Remote Control
|
NO
|
|
Headlights
|
YES
|
|
Tail Lights
|
NO
|
|
Turn Signal Indicator
|
NO
|
|
Horn
|
NO
|
|
|
|
|
|
Others
|
Tool Kit
|
NO
|
|
EPA Approved
|
YES
|
|
DOT Approved
|
NO
|
