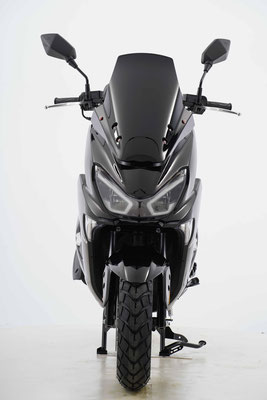

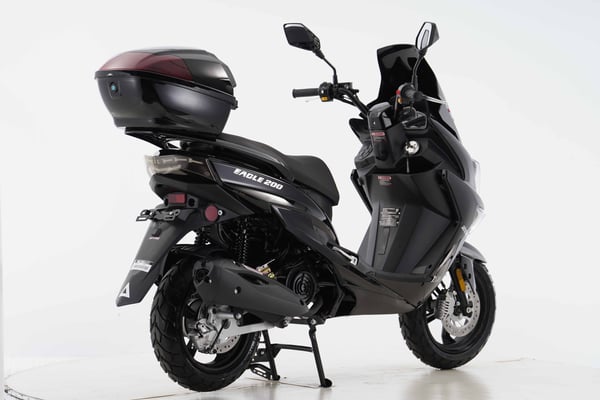

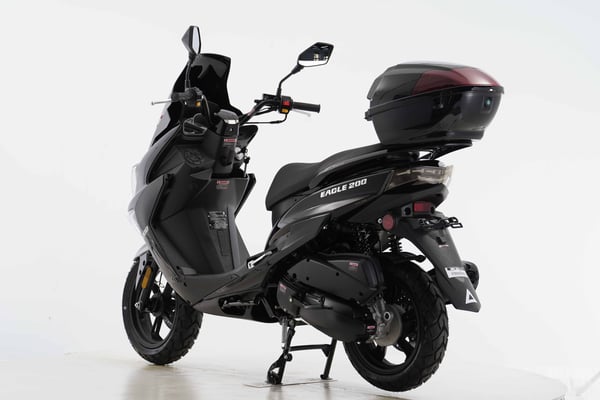

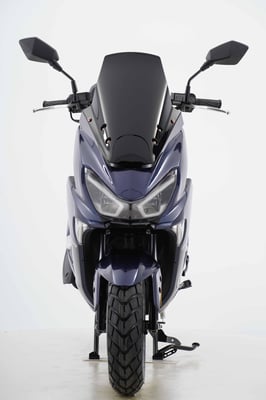

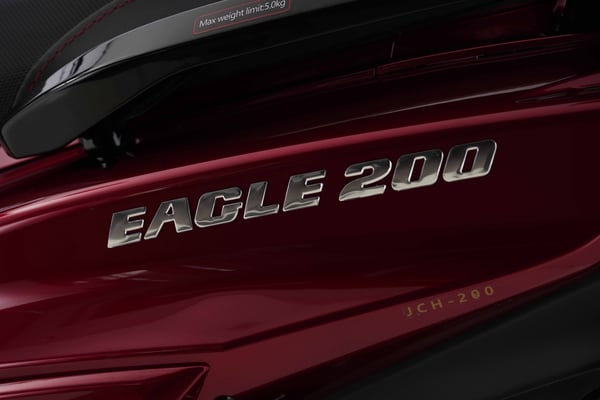

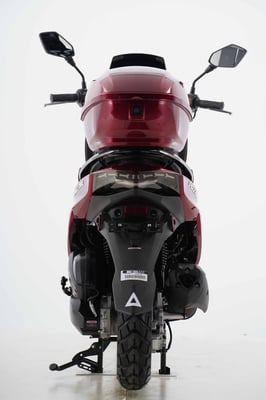

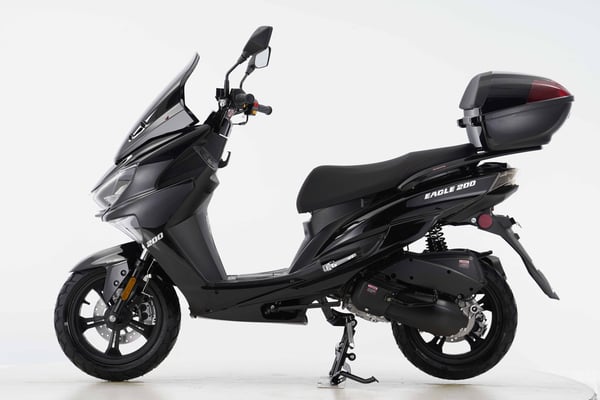

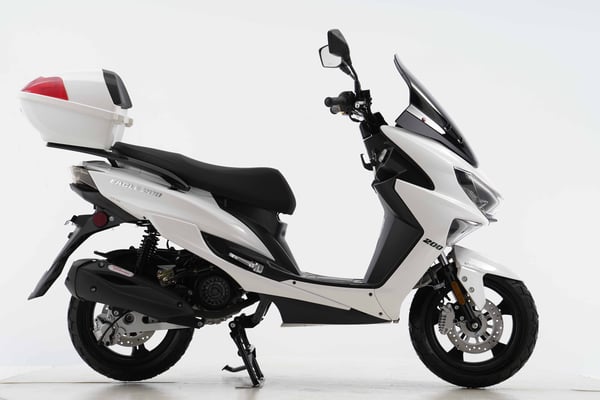

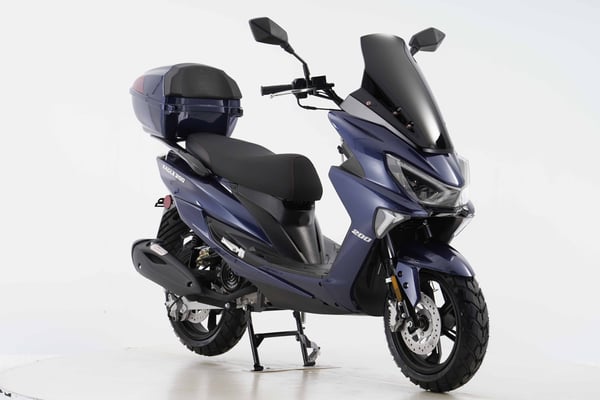

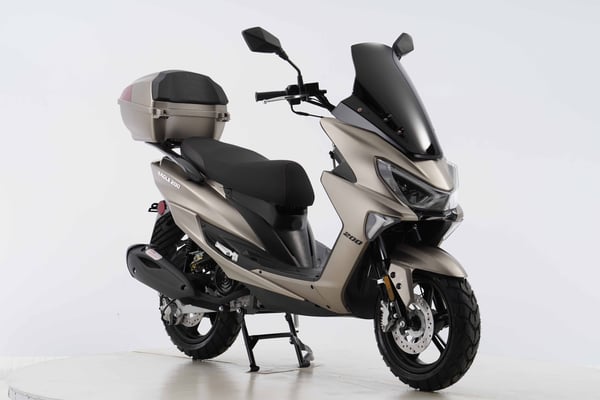

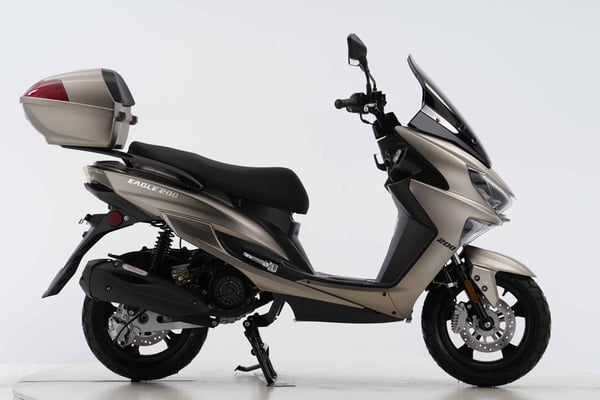

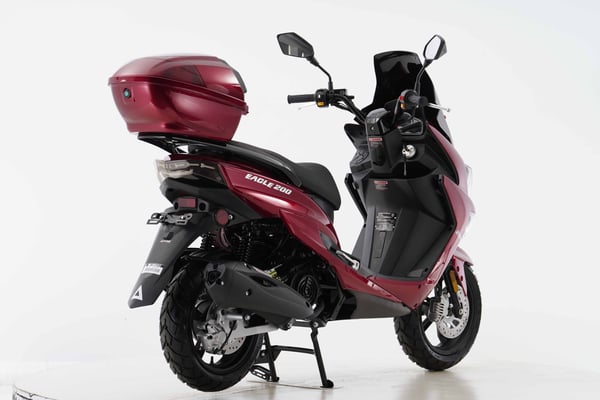

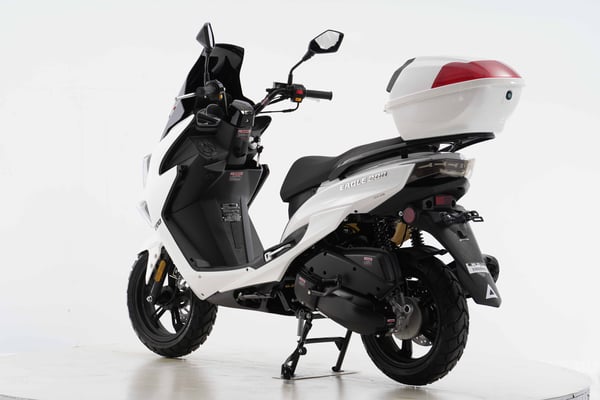

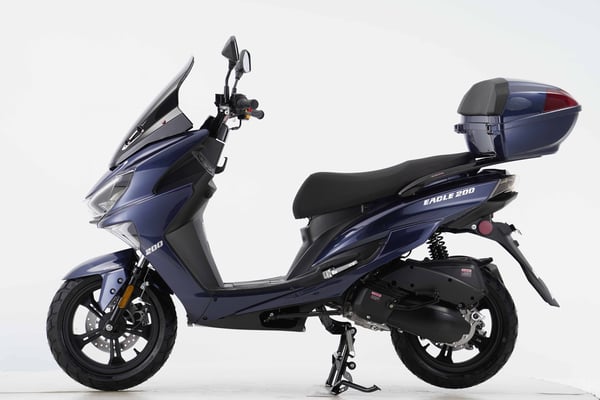

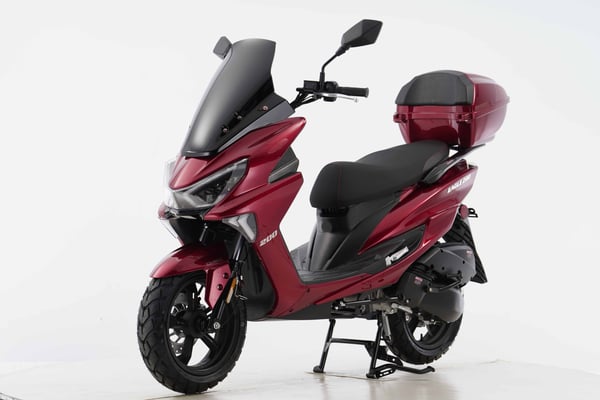

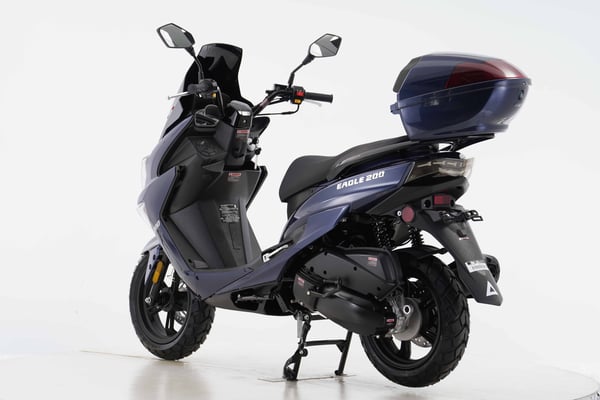

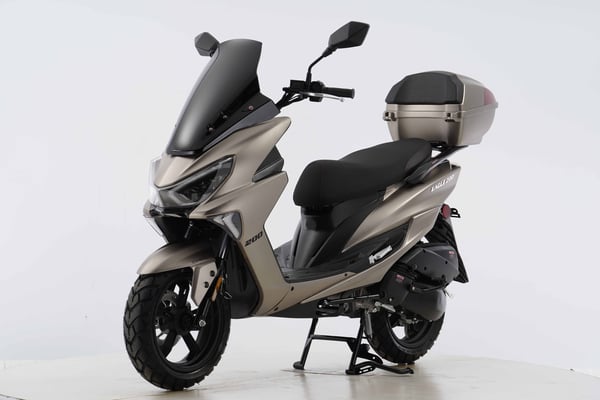

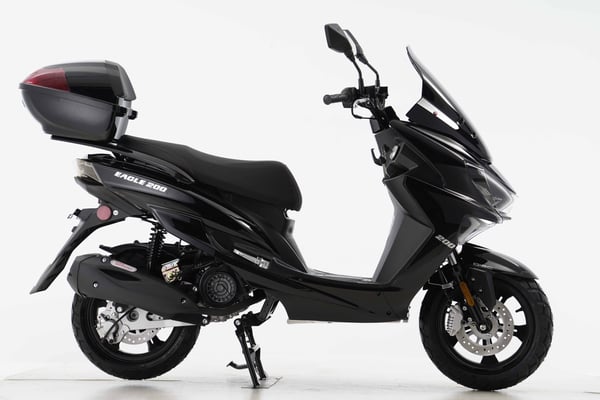

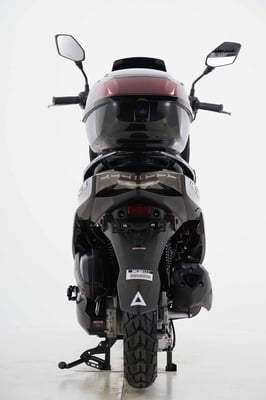

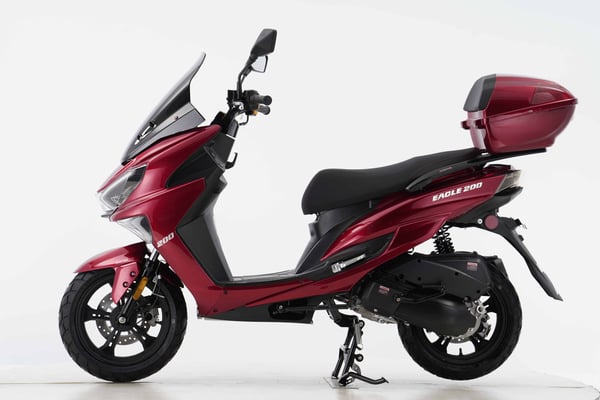

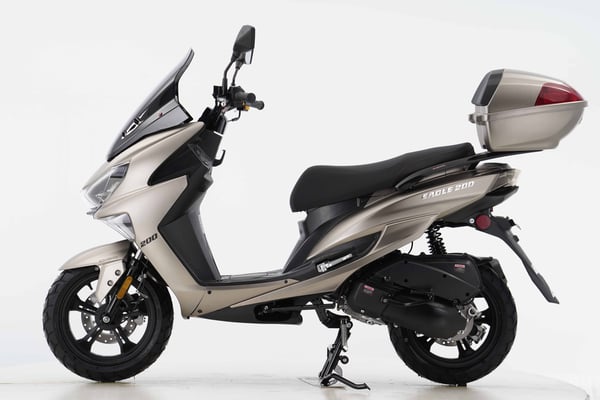

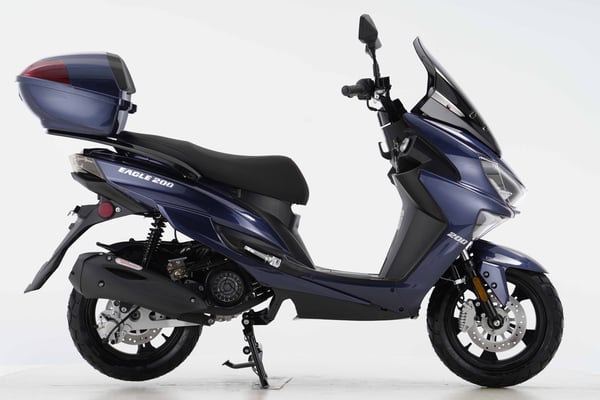

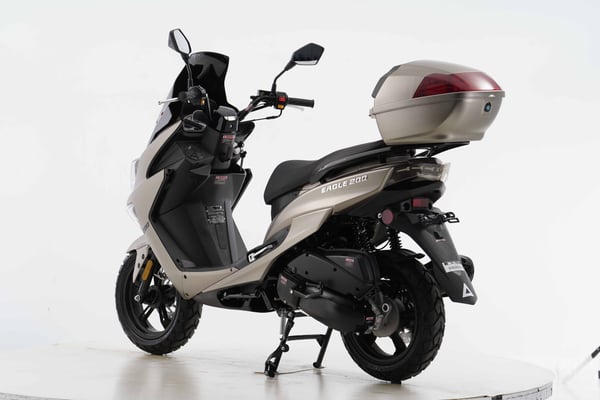

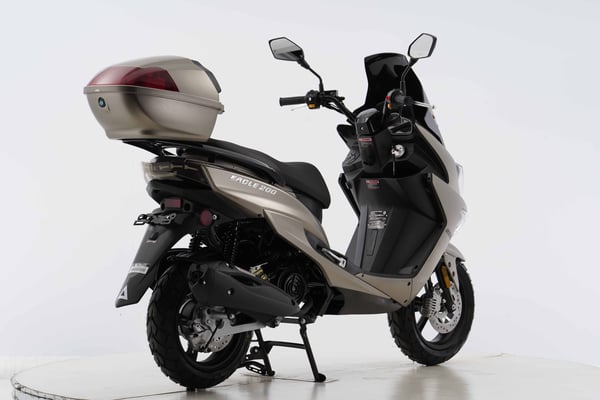

EAGLE 200 - vitacci

SPECIFICATIONS:

Engine and transmission	Displacement（cc）	168.9

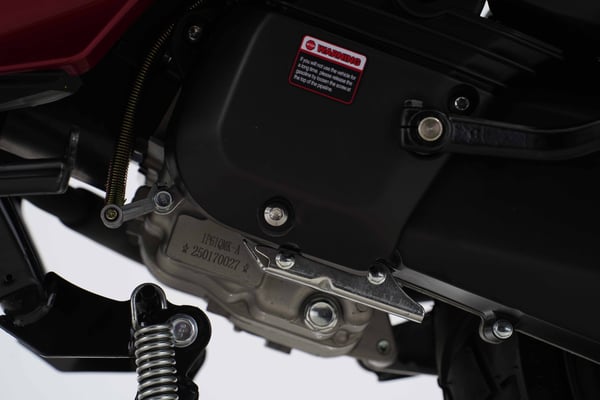

	Engine type	1P61QMK-A
	Engine mode	1-cylinder/4-stroke/2-valve
	Bore x stroke(mm)	ø61*57.8
	Max.power	7.4kW/7000 r/min
	Max.torque	11N·m/6000 r/min
	Compression ratio	9.5:1
	Fuel system	Carburetor
	Valve train	SOHC

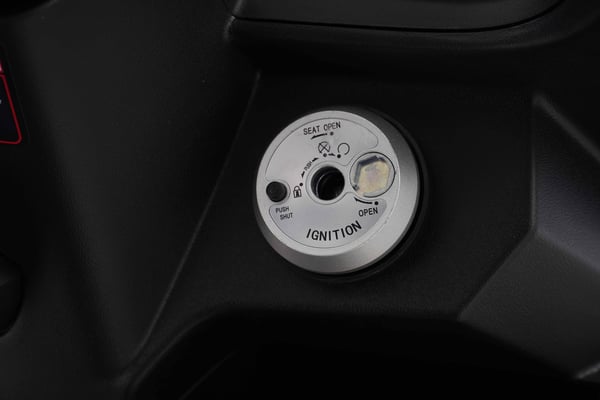

	Ignition	C.D.I.
	Starter	Electric & Kick
	Lubrication system	Pressure splash lubrication
	Cooling system	Forced-air-cooled
	Gear shifting type	Automatic CVT
	Transmission type final drive	V-Belt
	Clutch type	Automatic
Physical measures	Dry weight（kg）	105
	Seat height（mm）	760
	Overall length (mm)	1980
	Overall width (mm)	730
	Overall height (mm)	1140
	Ground clearance (mm)	110
	Wheelbase (mm)	1375
Chassis and dimensions	Frame type	Flat scooter
	Front suspension	Telescopic forks
	Front suspension travel (mm)	90
	Rear suspension	Mono-shock-absorber
	Rear suspension travel (mm)	95
	Fr. tyre	130/60-13
	Rr. tyre	130/60-13

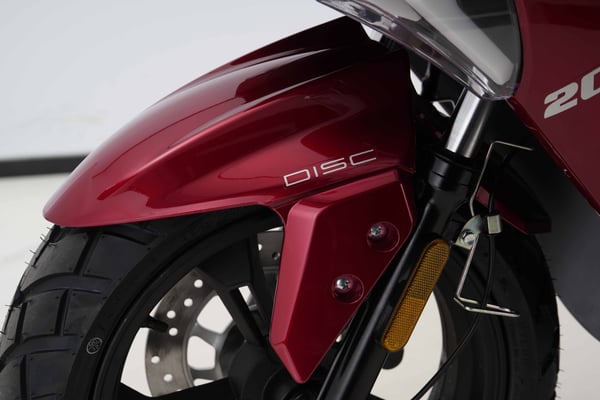

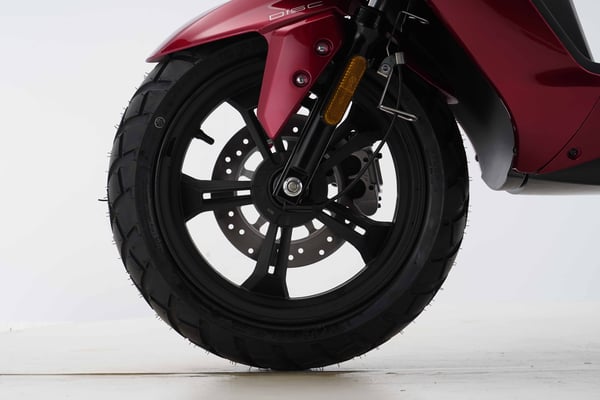

	Fr. Brakes	Disc
	Fr. brakes diameter (mm)	230

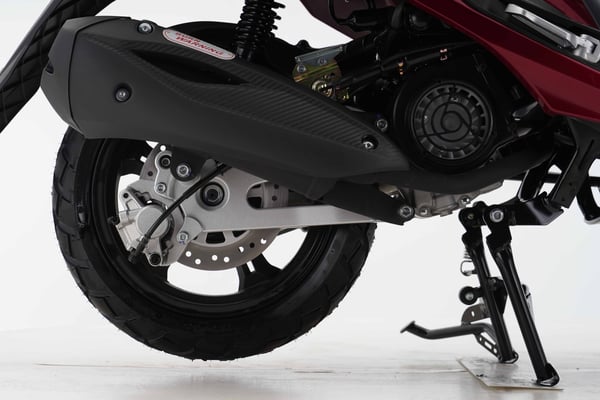

	Rr. brakes	Disc
	Rear brakes diameter (mm)	220
Other specifications	Top speed（km/h）	95
	Max.loadage (kg)	150
	Fuel capacity(L)	7.5
	Battery	12V6Ah(YTX7A-BS)

EAGLE 200 PARTS CATALOG.xls

Microsoft Excel Table 20.4 MB
