Model Code
|
SX-E2
|
|
Age of Use
|
6-8 years old
|
|
Height
|
120-160cm
|
|
Battery
|
48V 15AH 18650 cell
3C rate lithium battery
|
|
Battery weight
|
5.7Kg
|
|

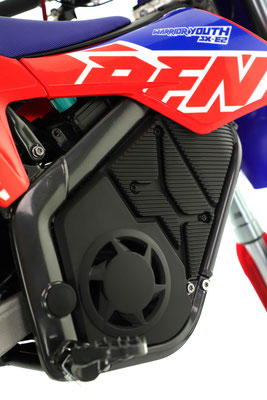

Motor
|
48V 1KW
|
|
Motor weight
|
5Kg
|
|
Range
|
18KM (35km/h)
|
|

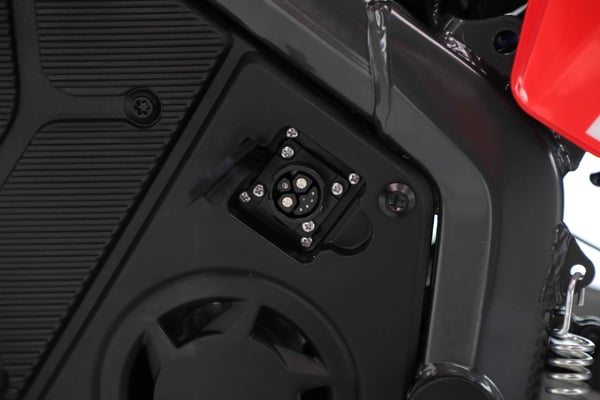

Charge
|
DC:54.6V 3A@5.5H
|
|
Charge weight
|
1 Kg
|
|
Meter
|
LED
|
|
APP
|
×
|
|
Power off switch
|
√
|
|
Peak HP
|
2.72
|
|
Motor torque
|
22N.m
|
|

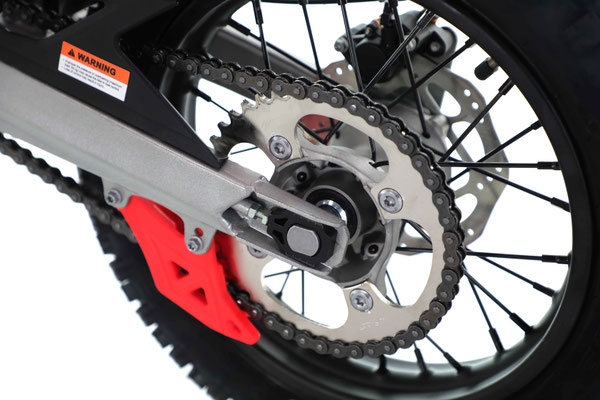

Gear ratio
|
13:44
|
|
Wheel torque
|
80N.m
|
|
Top speed:
|
45km/h
|
|
Seat height
|
700-675-650
|
|
Wheelbase
|
1040mm
|
|
Steering angle
|
42°
|
|
Ground clearance
|
250mm
|
|
Wheel diameter
|
14/12
|
|

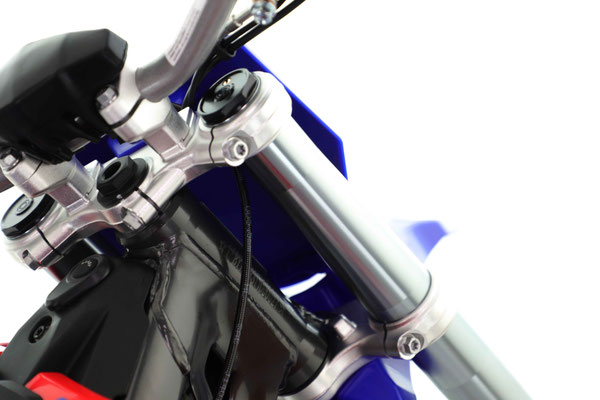

Front suspension
|
Φ35-690mm / 200mm
|
|

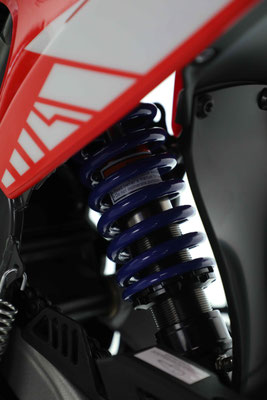

Rear suspension
|
275mm / 180mm
|
|

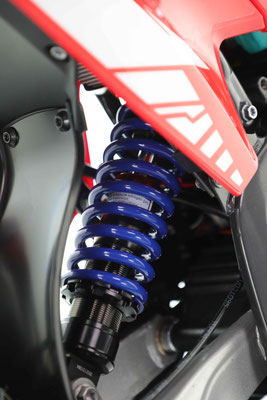

Rear shock spring
|
280 Lb
|
|

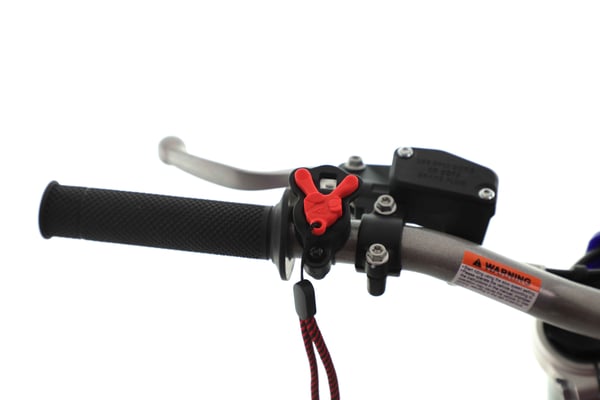

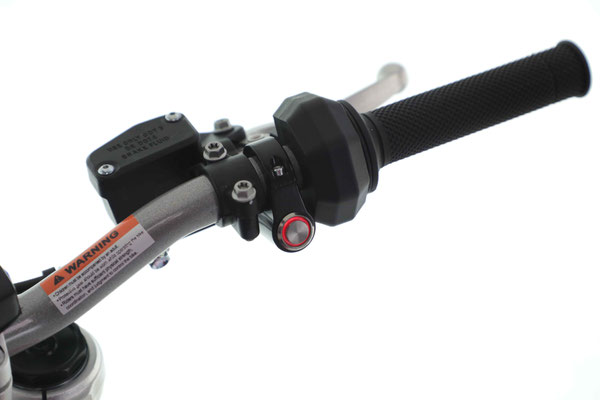

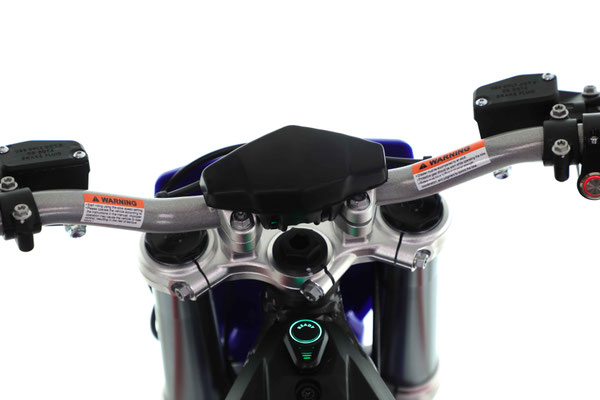

Handlebar
|
Φ28.5-22-19*660mm
|
|

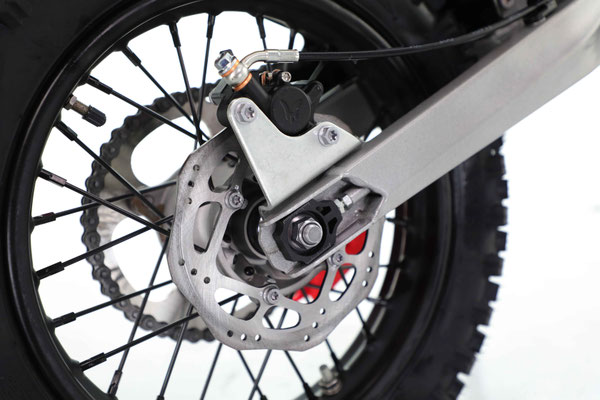

Brake type
|
F / R Single piston
|
|
Brake disc diameter
|
F 160mm / R 160mm
|
|
Frame material
|
BIK500 High-strength Steel
|
|
Rear fork material
|
BIK500 High-strength Steel
|
|
Weight
|
48kg
|
|
Product size
|
1470*680*900mm
|
|
Packing size
|
1105*325*660mm
|
|
Packing quantity
|
40HQ 296 Pcs
|
|
Packing weight
|
54 Kg
|
|
Max Load
|
55 Kg
|
|
|
