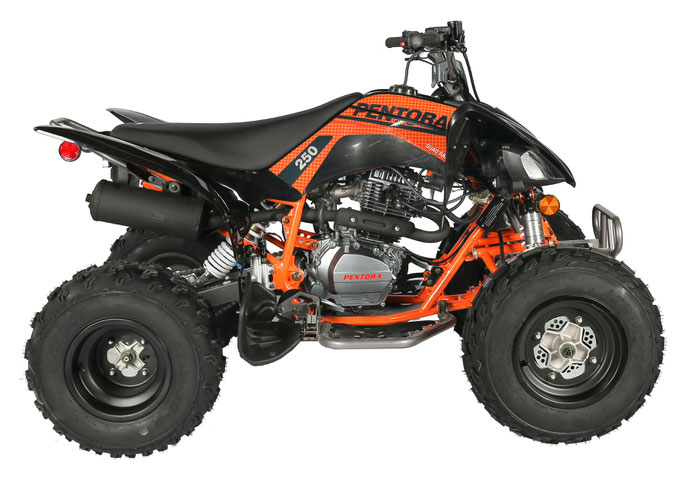

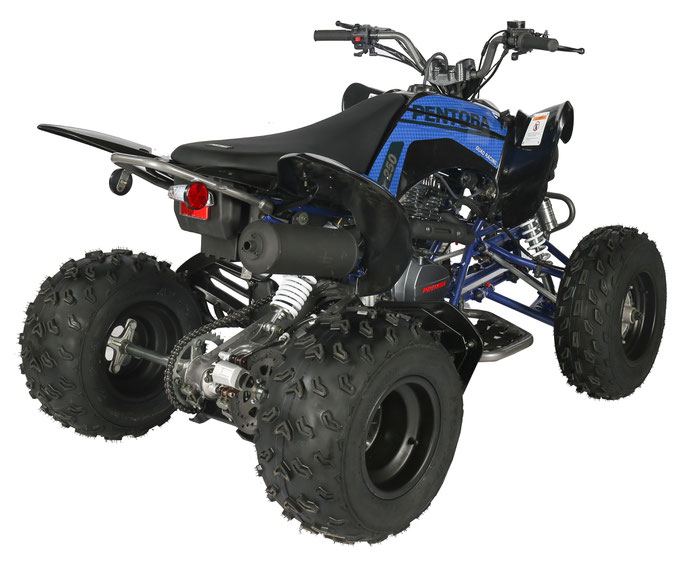

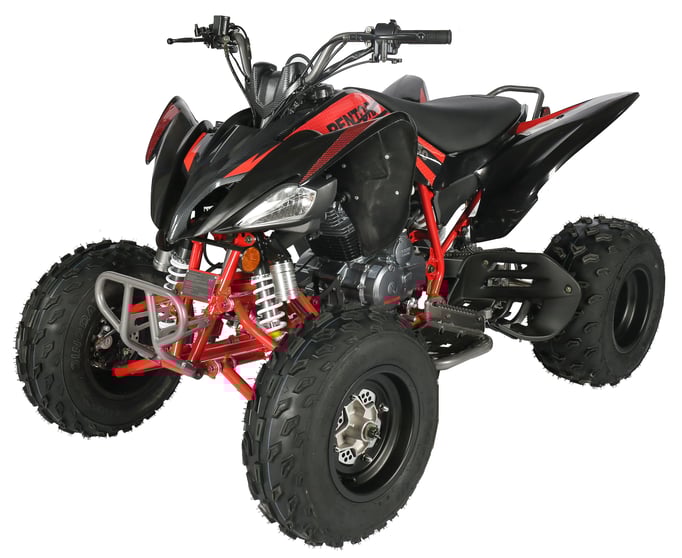

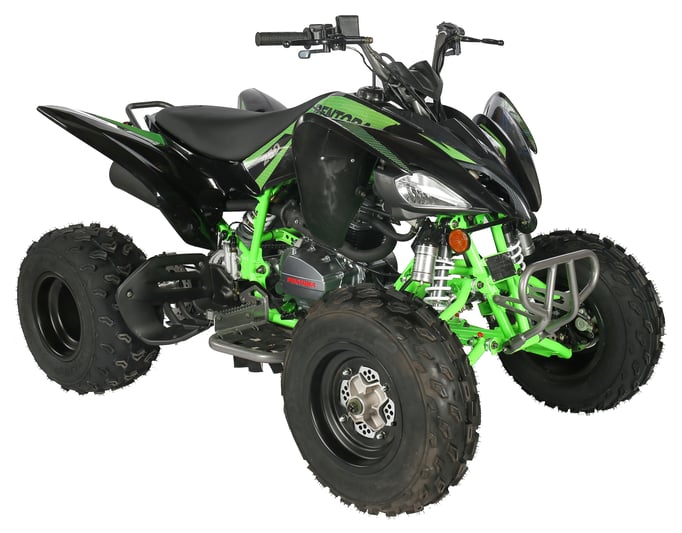

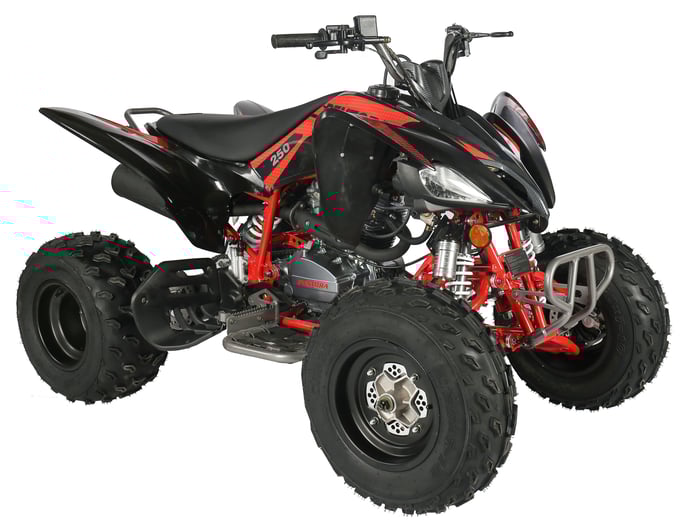

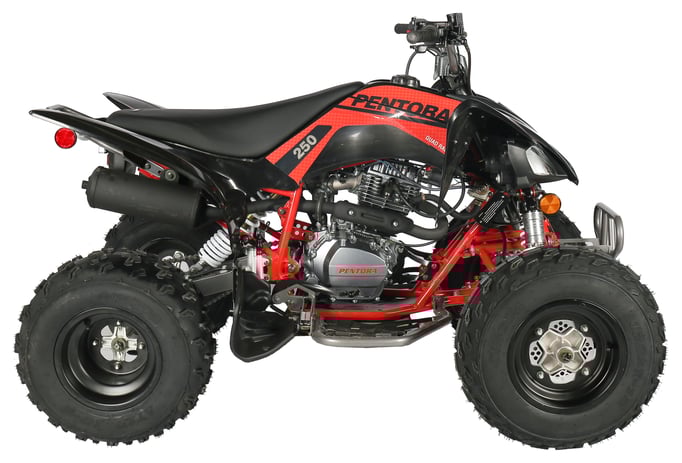

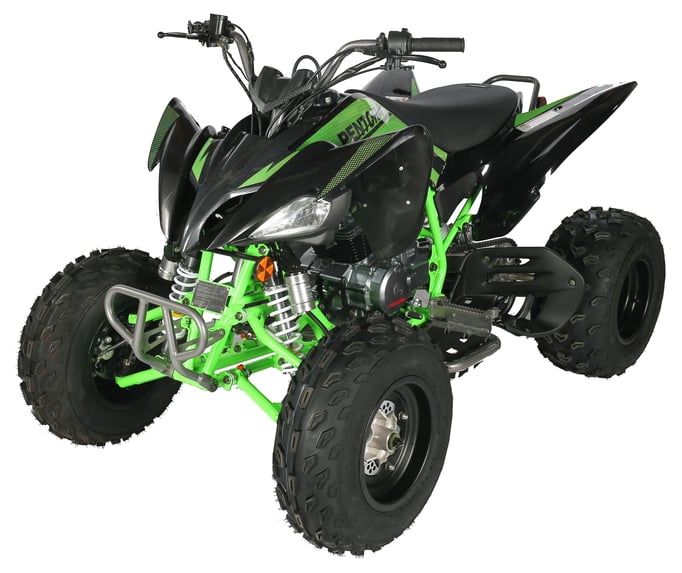

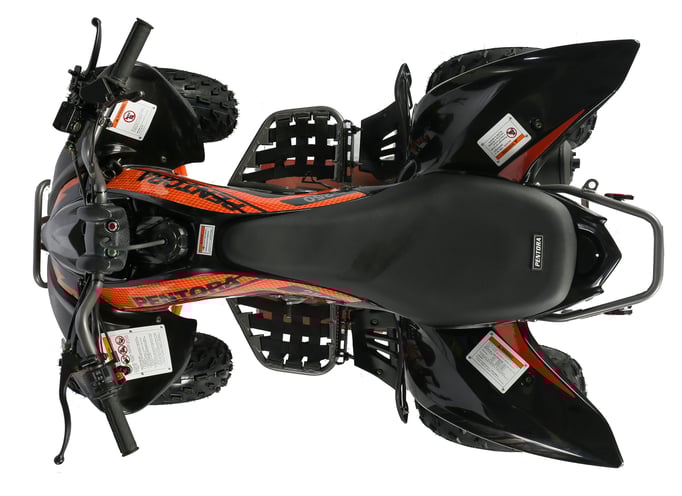

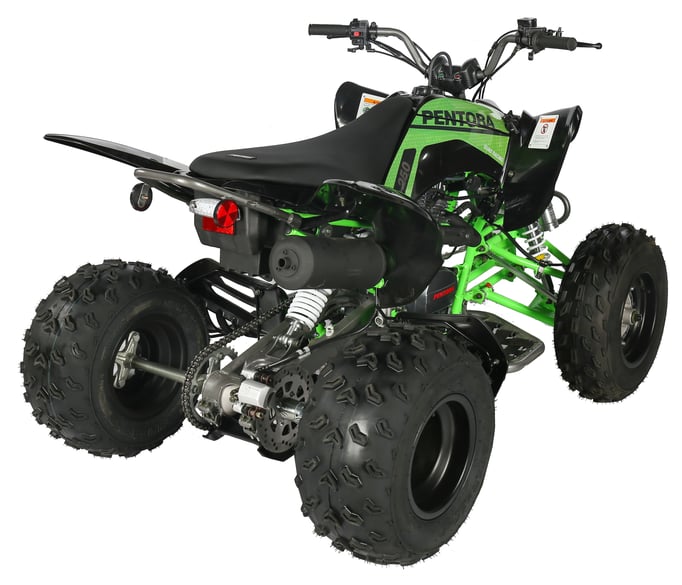

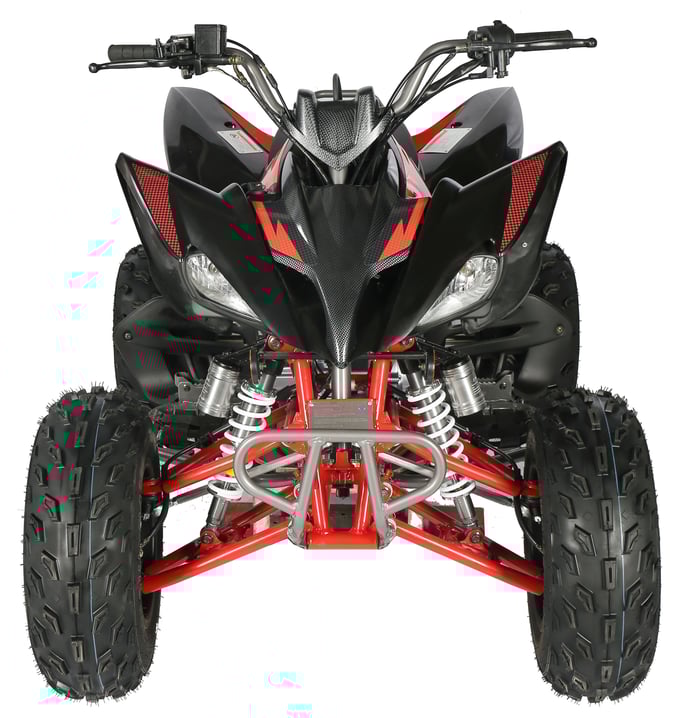

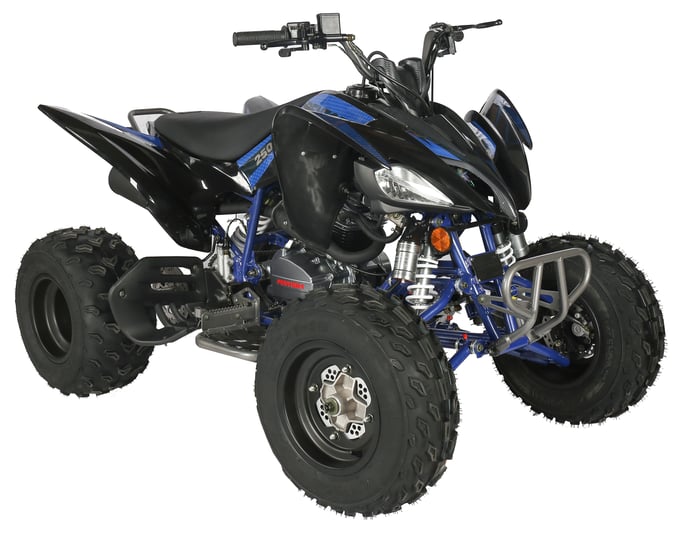

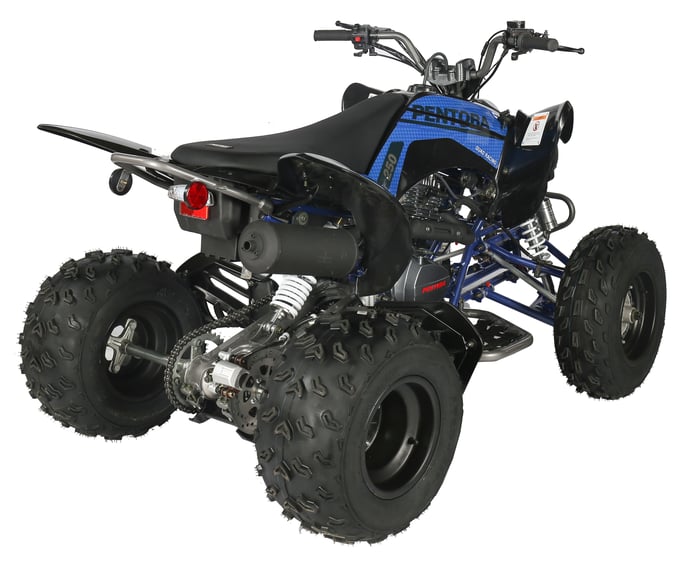

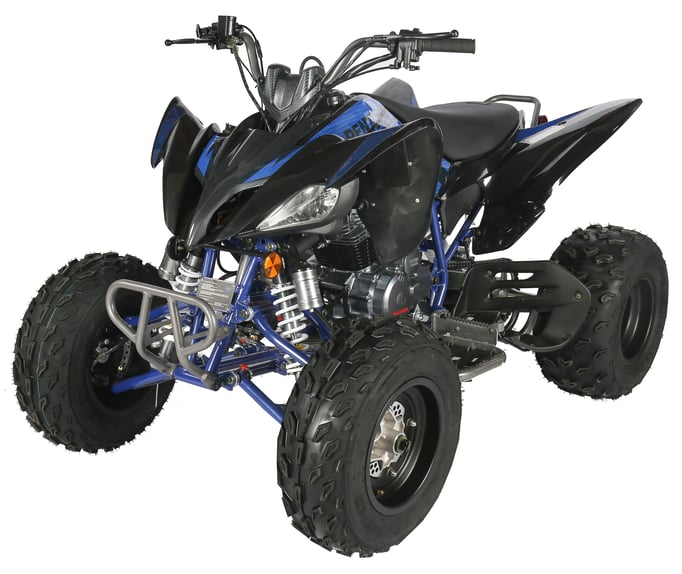

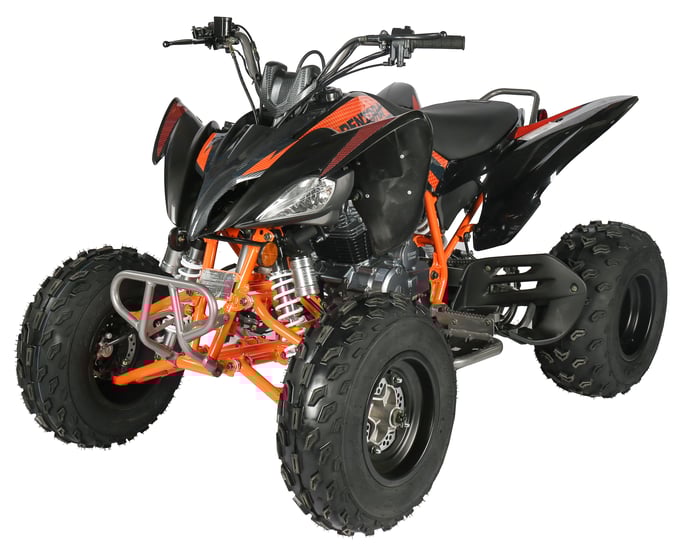

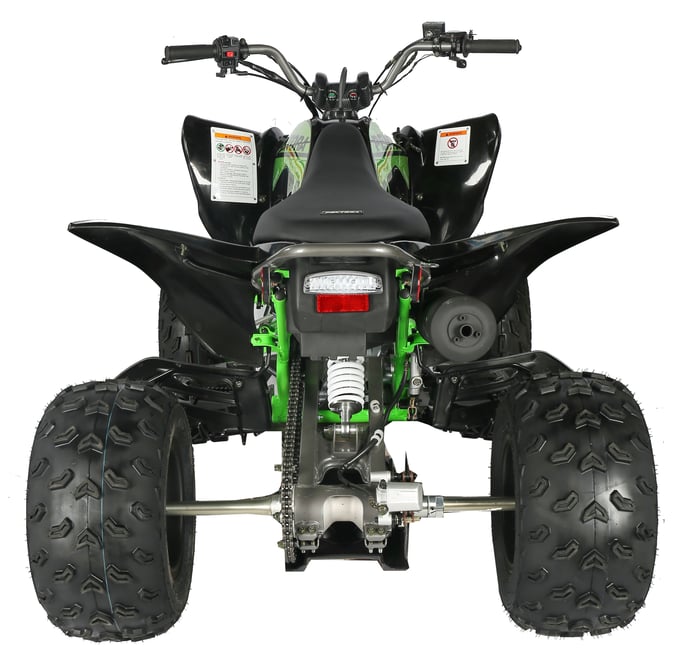

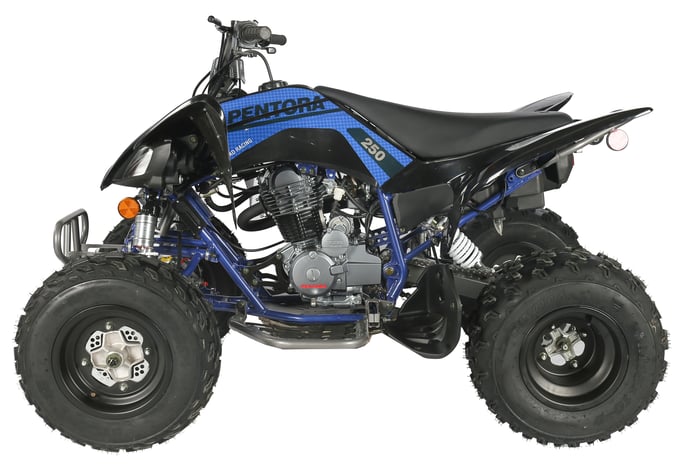

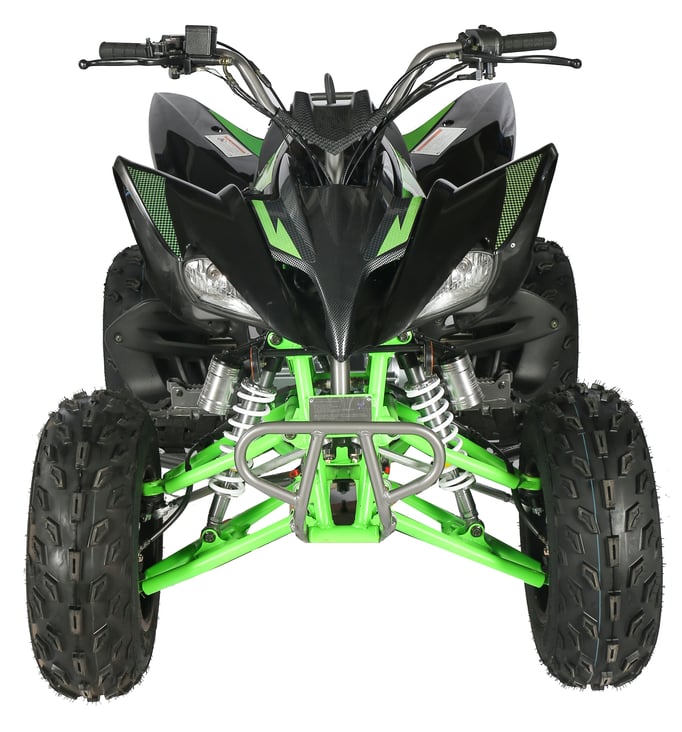

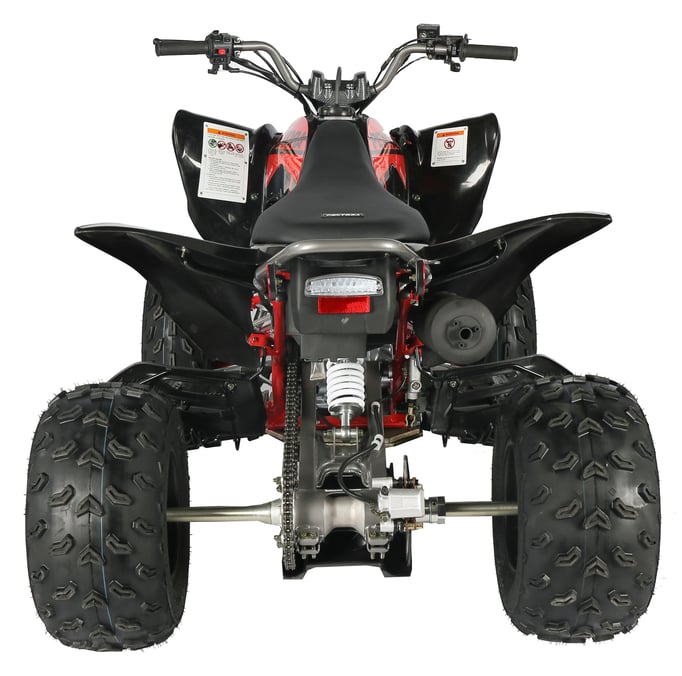

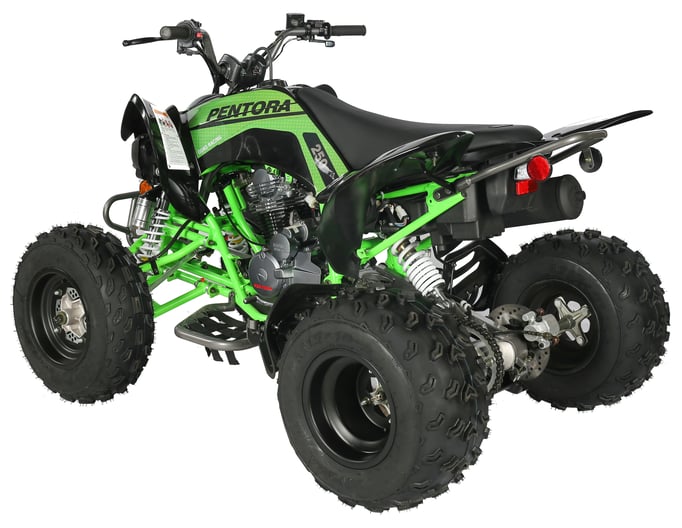

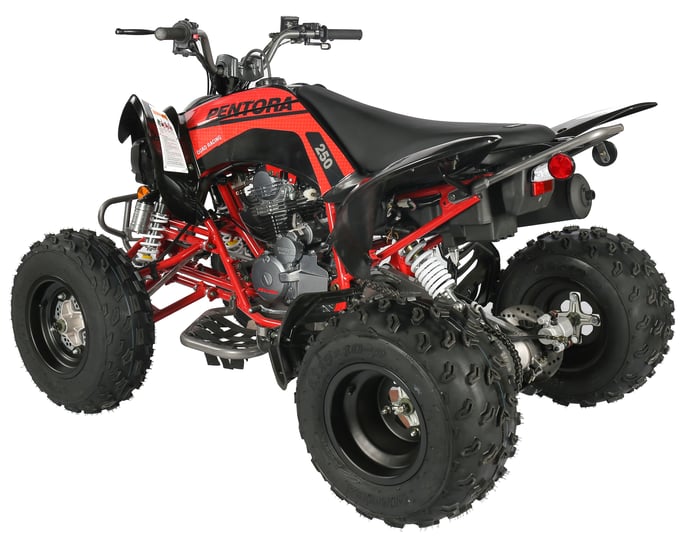

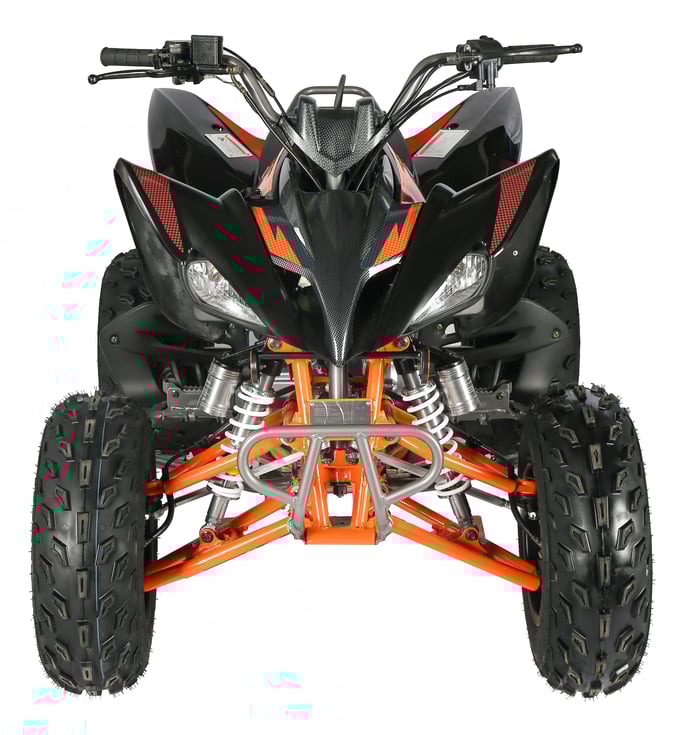

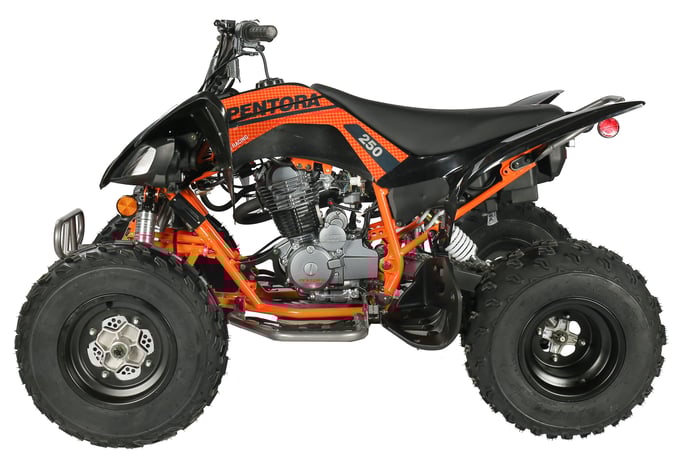

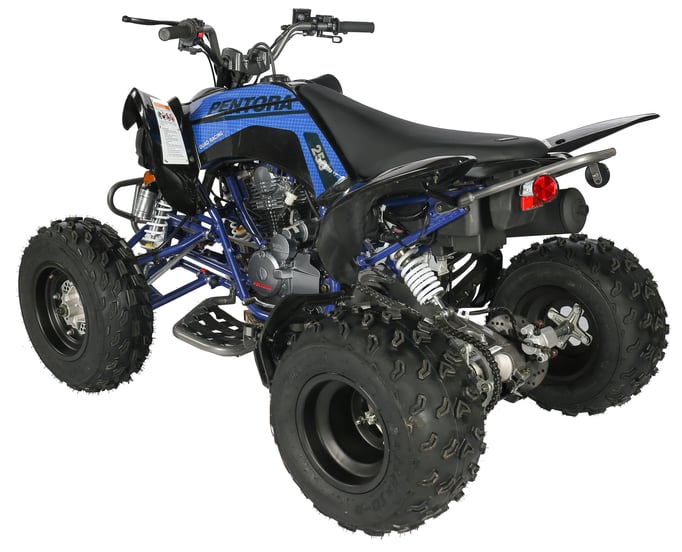

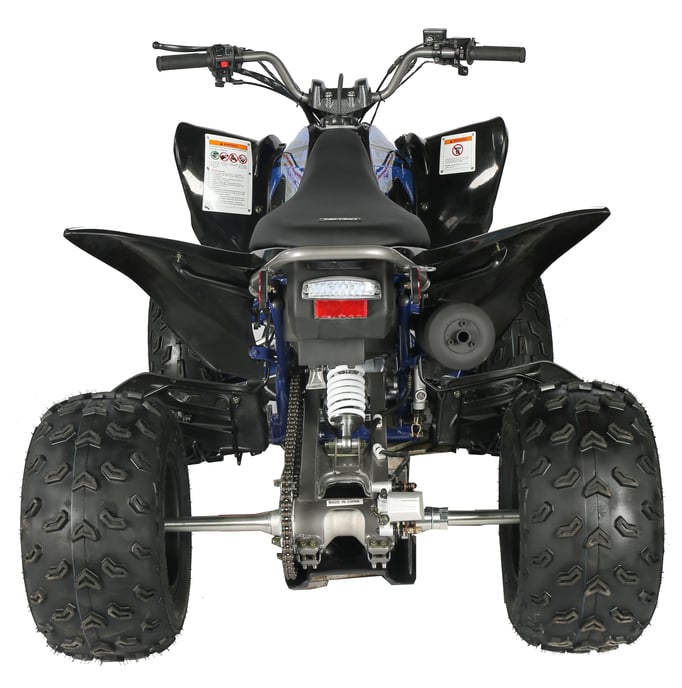

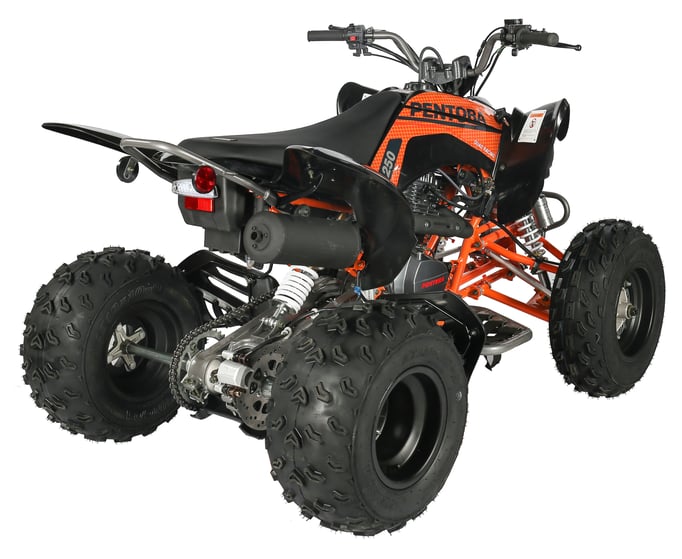

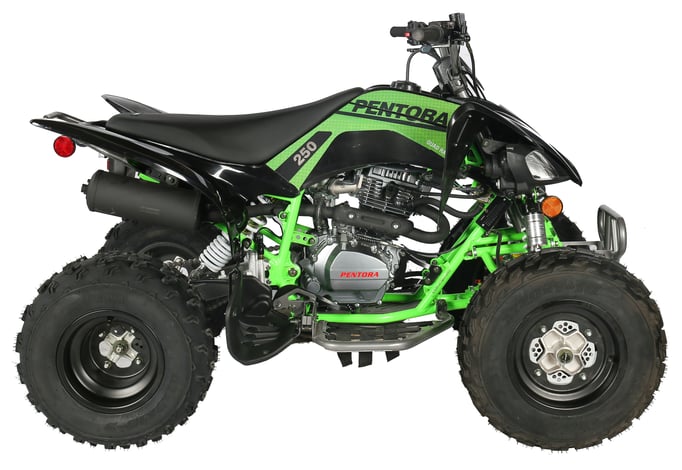

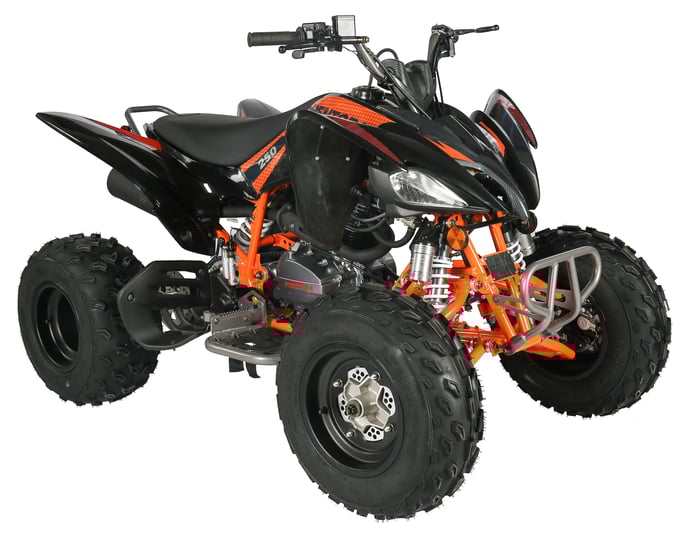

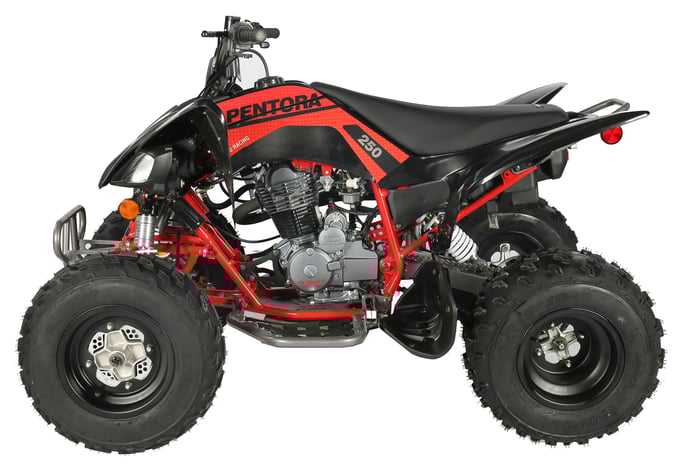

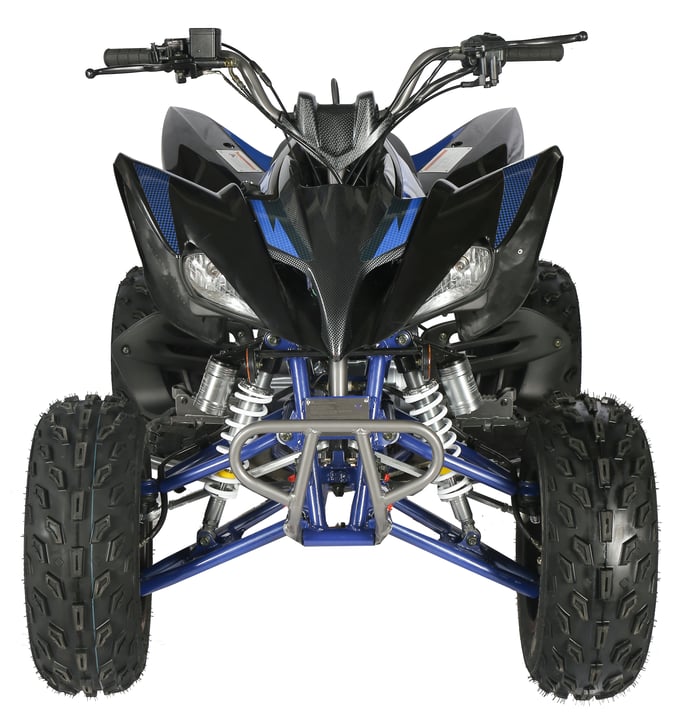

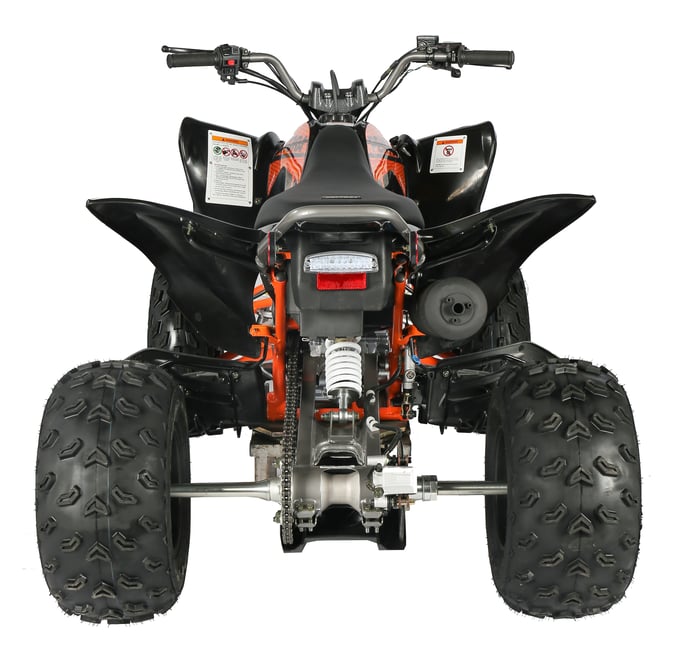

PENTORA 250cc MANUAL CLUTCH
Y65-Y250
|
NO. |
ITEM |
TECHNICAL SPECIFICATION |
|
|||||
|
1. |
SPECIFICATION PARTS SPECIFICATION |
L×W×H |
1625*1060*1065 |
|||||
|
2. |
WHEELBASE |
1090±20mm |
||||||
|
3. |
FRONT WHEELBASE |
820mm |
||||||
|
4. |
REAR WHEELBASE |
830mm |
||||||
|
5. |
MINIMUM GROUND CLEARANCE |
135±15mm |
||||||
|
6. |
SEAT HEIGHT |
790±15 mm |
||||||
|
7. |
RIDE HEIGHT |
225mm |
||||||
|
8. |
HANDLE HEIGHT |
1000mm |
||||||
|
9. |
PACKING SIZE |
1460*880*860mm 62pcs/40HQ |
||||||
|
10. |
MINIMUM TURNING CIRCLE DIAMETER |
5900±500mm |
||||||
|
11. |
TURNING ANGLE |
<45° |
||||||
|
12. |
RATED LOAD |
100kg |
||||||
|
13. |
NET WEIGHT |
149kg |
||||||
|
14. |
GROSS WEIGHT (WITH PACKING) |
177kg |
||||||
|
15. |
F&R BRAKE |
F&R HYDRAULIC DISC |
||||||
|
16. |
F&R BRAKE OPERATION TYPE |
FRONT HAND BRAKE, REAR FOOT BRAKE |
||||||
|
17. |
F&R RIM |
10*5.5AT/9*8.0AT |
||||||
|
18. |
F&R TYRE |
AT20*7.0-10/AT19*10-9 |
||||||
|
19. |
TRANSMISSION |
CHAIN |
||||||
|
20. |
TECHNICAL SPECIFICATION |
FUEL TANK |
9L` |
|||||
|
21. |
||||||||
|
22. |
BATTRY |
12V/7HA ` |
||||||
|
23. |
MAXIMUM SPEED |
70km/h |
||||||
|
24. |
SPECIFICATION |
STARTING PERFORMANCE |
15S |
|||||
|
25. |
CLIMBING PERFORMANCE |
21° |
||||||
|
26. |
PARKING PERFORMANCE |
≥18° |
||||||
|
27. |
EMISSION INDEX
|
CO (%) |
≤3.8 |
|||||
|
HC(PPm) |
≤800 |
|||||||
|
28. |
db.(A) |
≤82 dB(A) |
||||||
|
29. |
ENGINE SPECIFICATION
|
MODEL |
LC166FMM |
|||||
|
30. |
TYPE |
SINGLE CYLINDER、250cc air cooler 2 valves、4-STROKE |
||||||
|
31. |
BRAND |
LONCIN |
||||||
|
32. |
BRORE×STROKE |
65.5x66.2mm |
||||||
|
33. |
capacity |
223mL |
||||||
|
34. |
COMPRESSION RATIO |
9.0:1 |
||||||
|
35. |
MAX.POWER |
12（1±5%）kW /7500（1±5%）rpm |
||||||
|
36. |
MAX.TORQUE |
17（1±5%）N · m /6000（1±5%）rpm |
||||||
|
37. |
Min no load speed |
1500（1±10%） r /min |
||||||
|
38. |
min fuel consumption rate |
354g / kw.h |
||||||
|
39. |
Fuel no. |
≥RQ90 |
||||||
|
40. |
CLUTCH METHOD |
Manual |
||||||
|
41. |
Start |
Electrical start |
||||||
|
42. |
cdi |
C.D.I |
||||||
|
43. |
PARTS SPECIFICATION |
carb |
PZ30 |
|||||
|
44. |
Spark plug |
D8TC |
||||||
|
45. |
Front light |
12V18-18W |
||||||
|
46. |
TECHNICAL SPECIFICATION |
Max speed |
70km/h |
|||||
|
47. |
Start time |
15S |
||||||
|
48. |
break |
|
||||||
|
前轮力和 |
≥60% |
|||||||
|
前轮力差 |
≥55% |
|||||||
|
后轮力和 |
≤20% |
|||||||
|
后轮力差 |
≤24% |
|||||||
|
49. |
CLIMBING PERFORMANCE |
21°° |
||||||
|
50. |
PARKING PERFORMANCE |
≥18% |
||||||
|
51. |
EMISSION INDEX |
CO (%) |
≤3.8 |
|||||
|
HC(PPm) |
≤800 |
|||||||
|
52. |
db(A) |
≤82 dB(A) |
||||||
|
53. |
Starting acceleration（S） |
≤8 |
||||||
|
54. |
Speed acceleration（S） |
≤8 |
||||||
|
55. |
Parts spec |
Tank capacity |
9L |
|||||
|
56. |
Fr. & re suspension |
Oil dumper |
||||||
|
57. |
Fr. &re suspension |
L=350 m m /L=390 m m |
||||||
