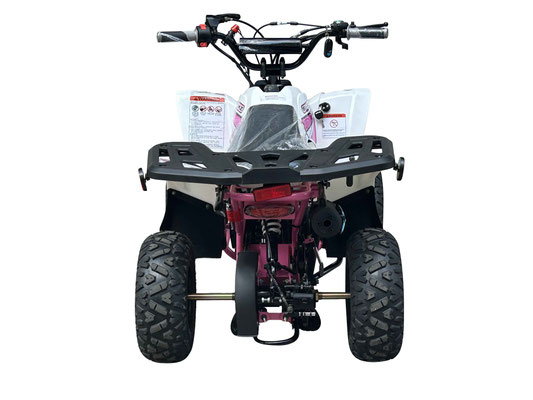

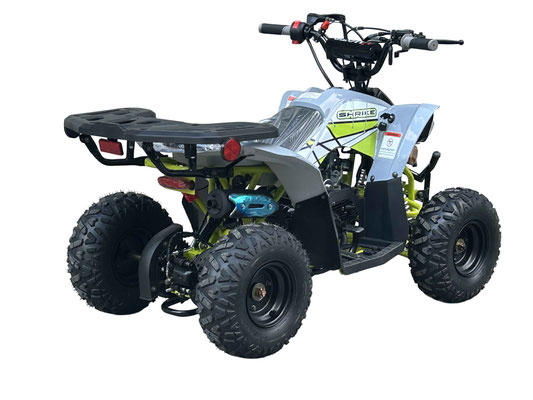

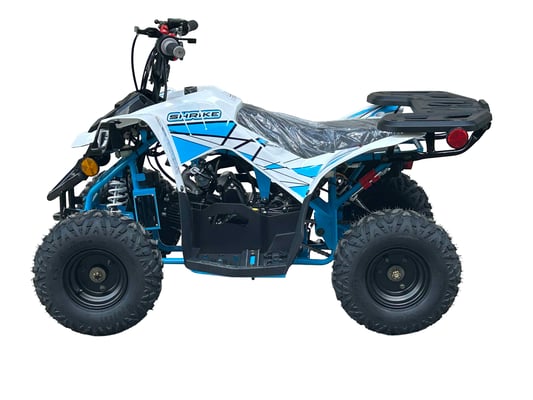

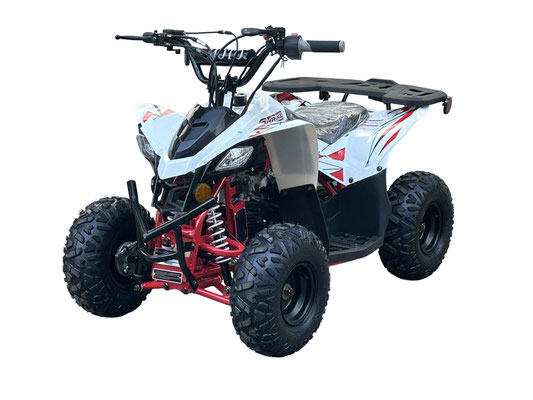

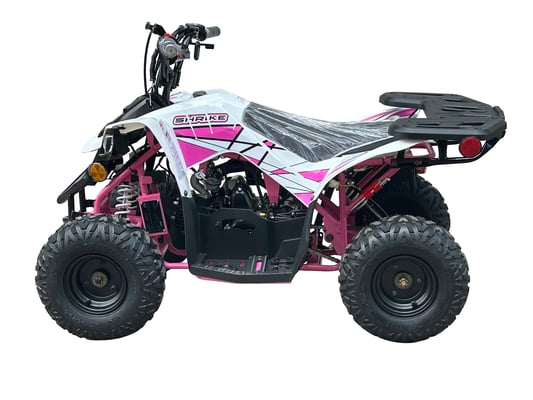

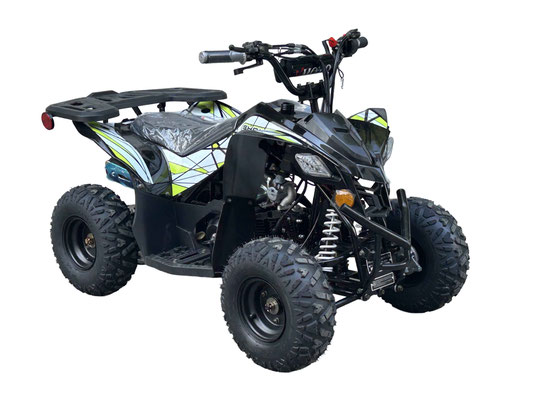

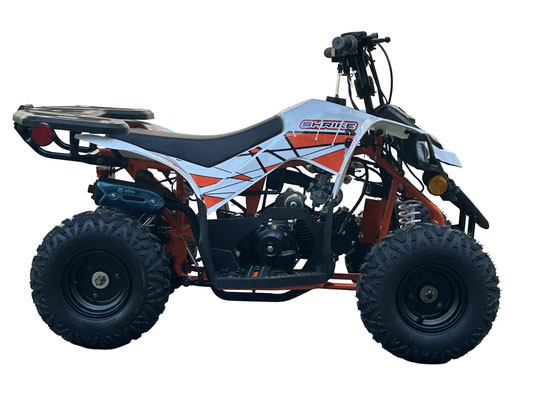

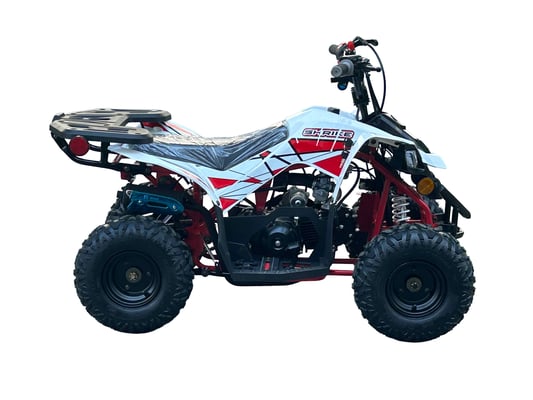

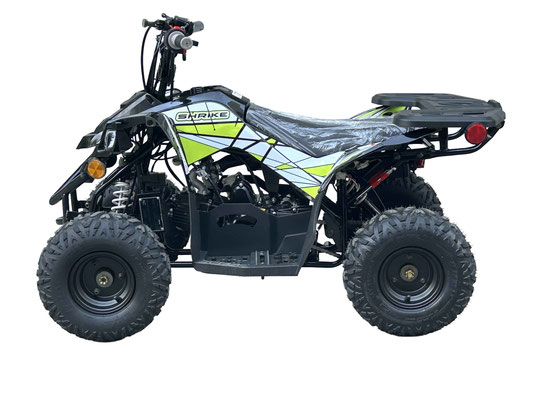

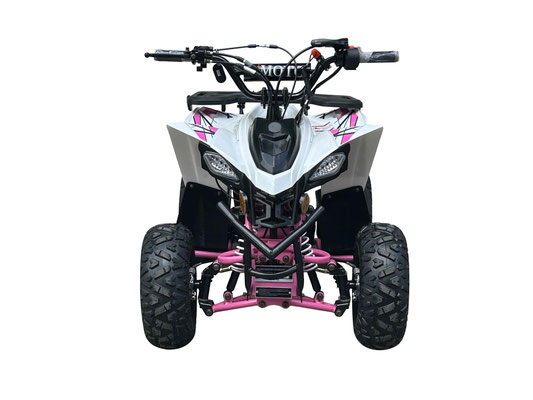

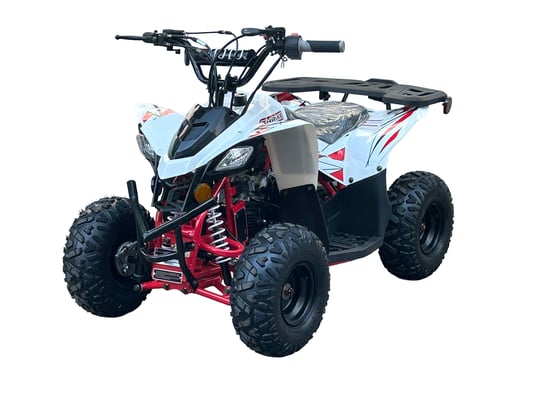

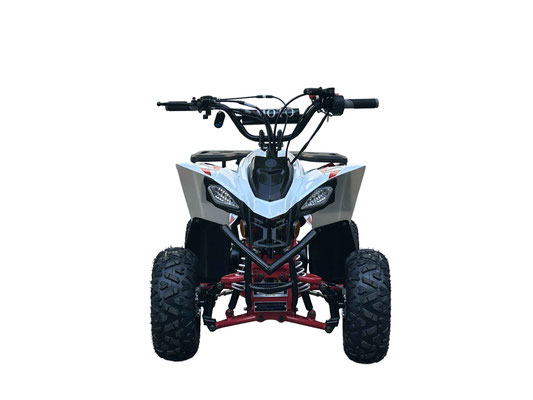

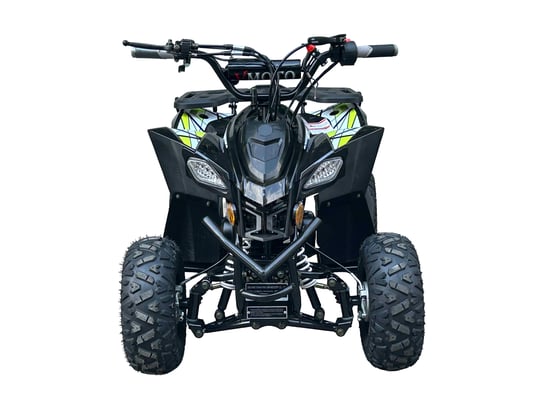

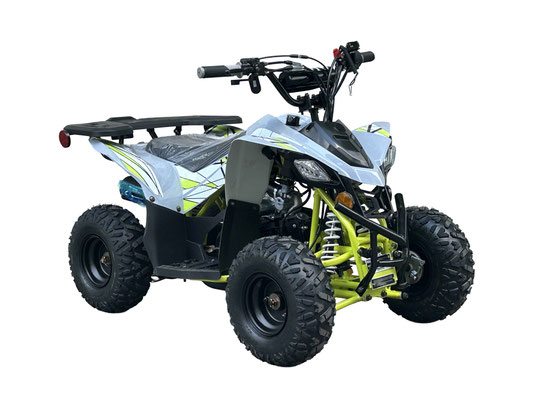

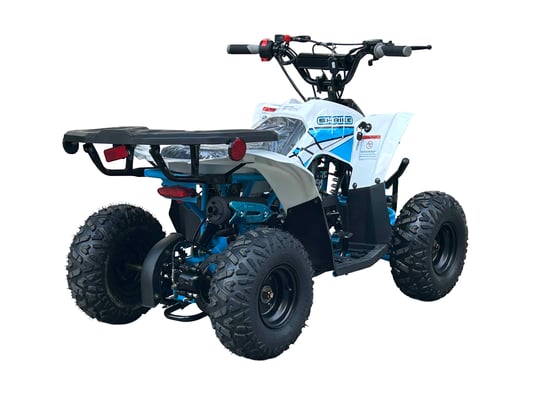

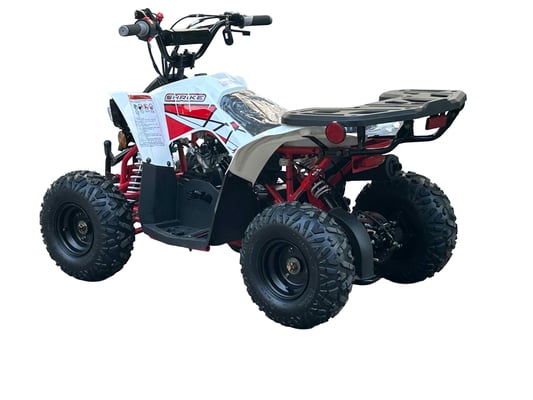

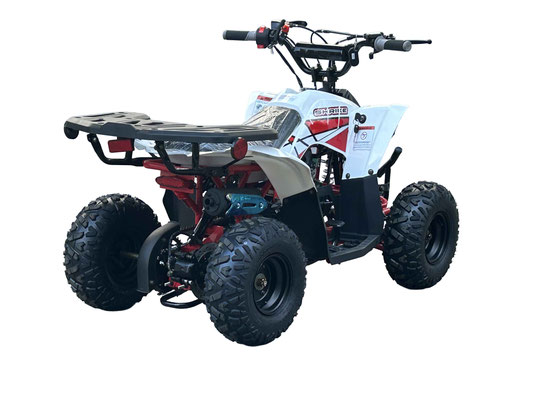

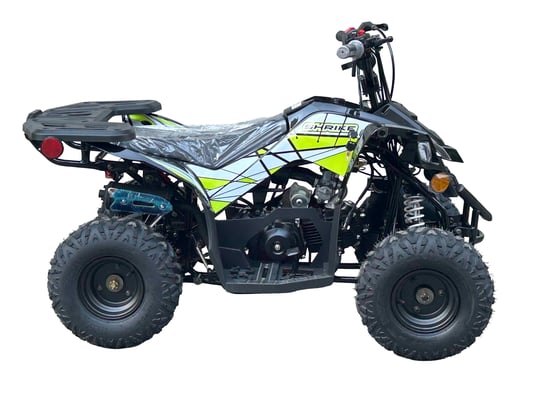

Model Number:
|
SHRIKE
|
|
Engine Type:
|
Single Cylinder, 4-Stroke, Air Cooling
|
|
Displacement:
|
107cc
|
|
Max Torque:
|
6.9N.m/6,500 ± 500r/min (N.m/r/min)
|
|
Max Power:
|
4.8kW/8,000 ± 500r/min (kW/r/min)
|
|
Bore Stroke:
|
52.4 x 49.5 mm
|
|
Ignition:
|
CDI
|
|
Starting System:
|
Electric
|
|
Battery:
|
12V, 4Ah
|
|
Clutch:
|
Automatic
|
|
Transmission:
|
Chain, Rear Wheel Drive
|
|
Brakes Front/Rear:
|
Drum/Hydraulic Disc
|
|
Fuel Capacity:
|
0.54 gallons / 2.06L
|
|
Weight:
|
Gross (165lbs/74.8kg), Net (160.5lbs/72.8kg)
|
|
Max Load:
|
165 lbs / 75 kg (rider, all cargo and accessories)
|
|
Wheelbase:
|
850 mm
|
|
Dimensions:
|
1,345 x 785 x 835 mm
|
|
Height to Seat:
|
590 mm
|
|
Min. Ground Clearance:
|
80 mm
|
