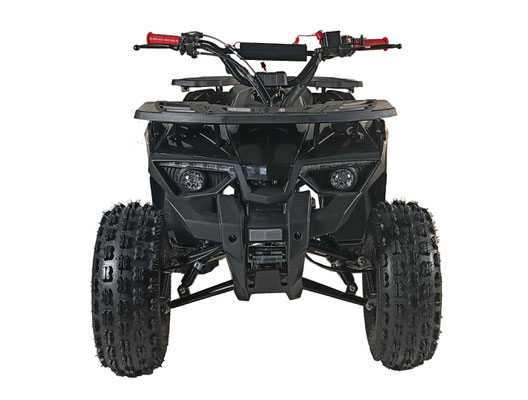

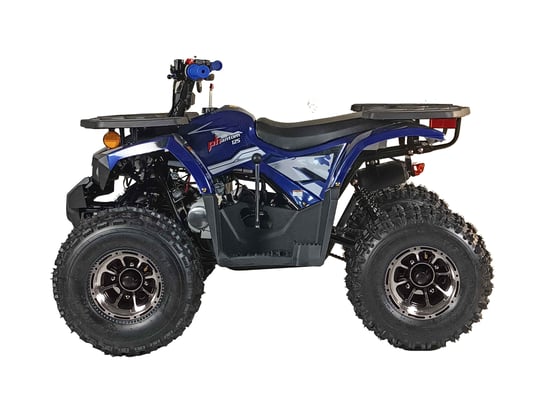

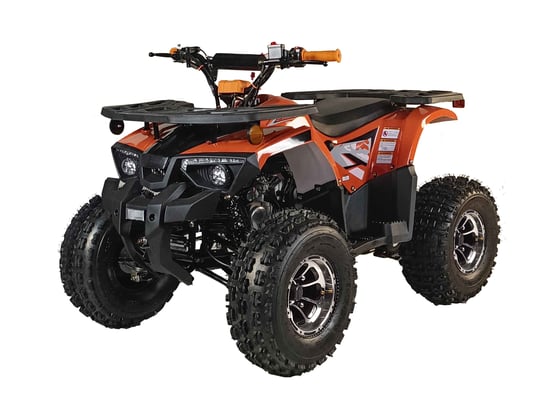

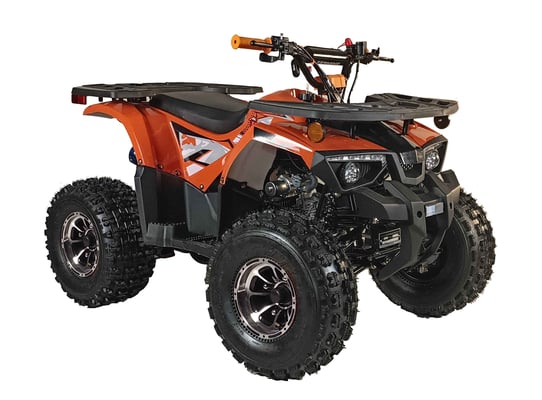

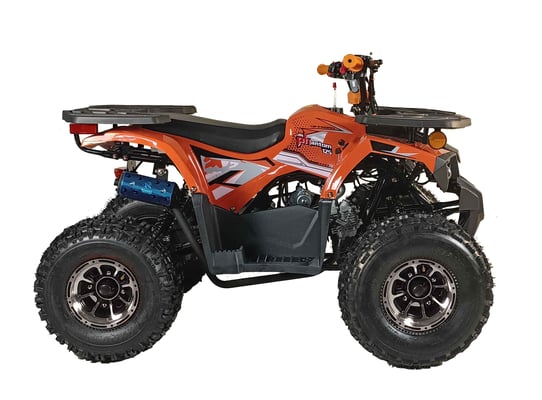

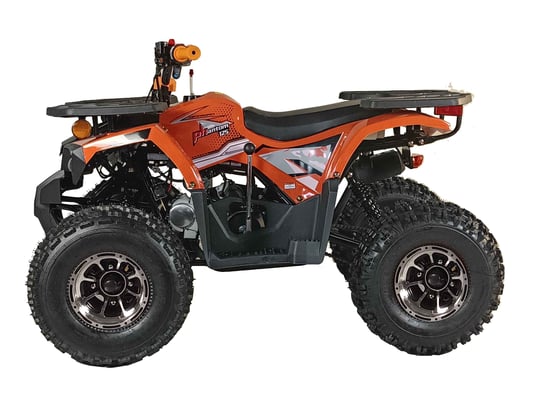

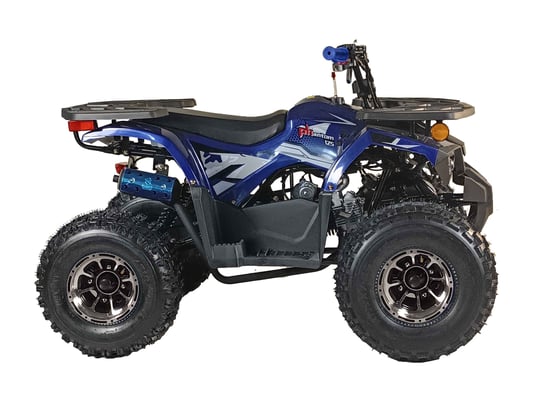

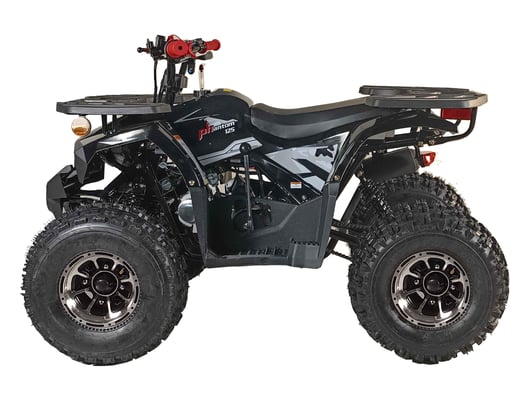

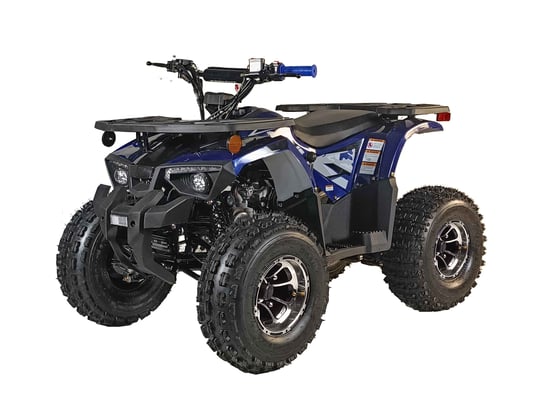

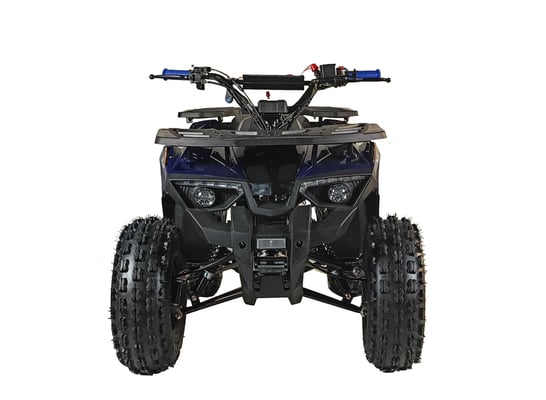

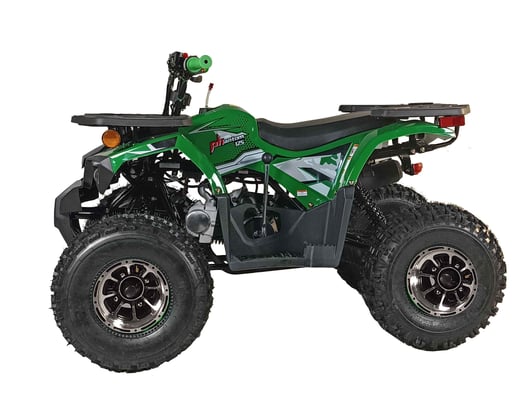

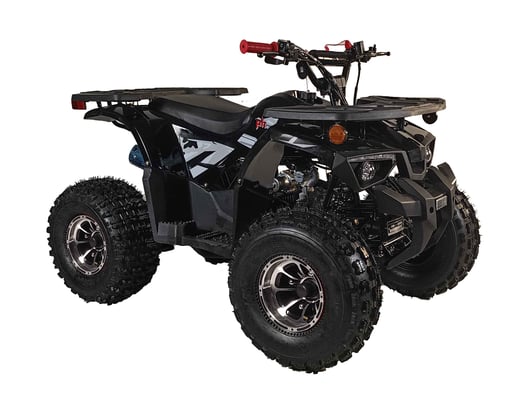

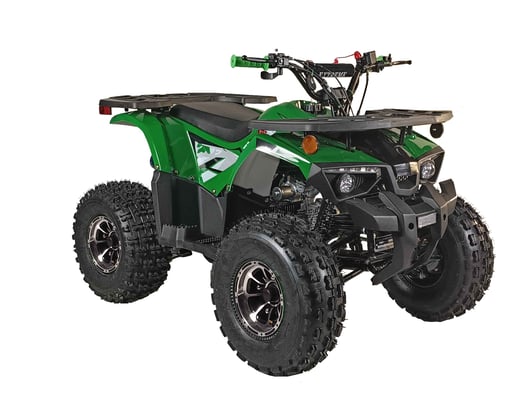

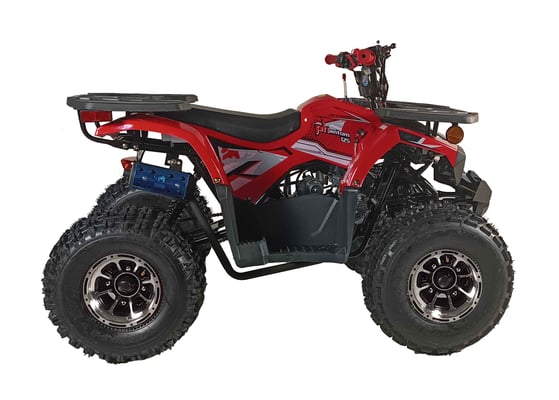

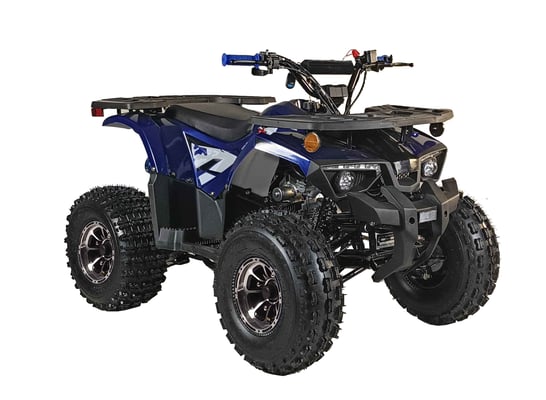

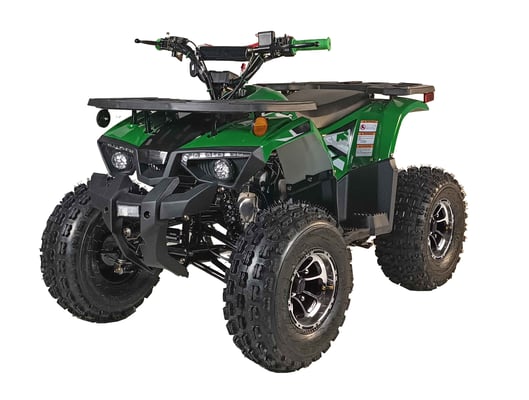

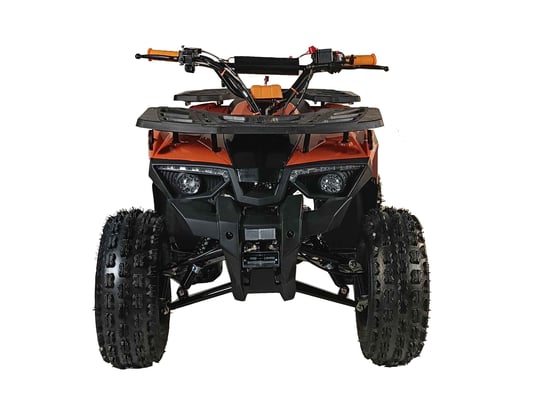

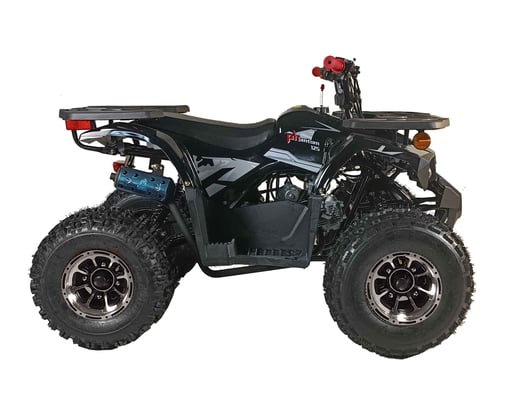

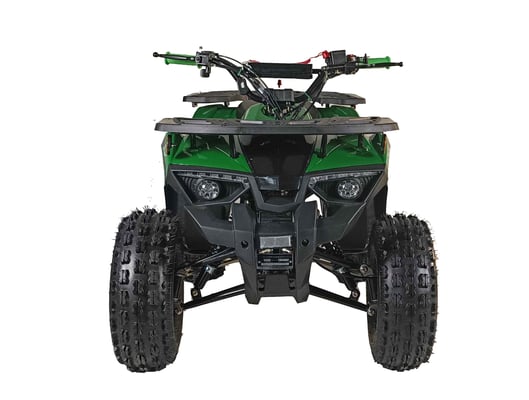

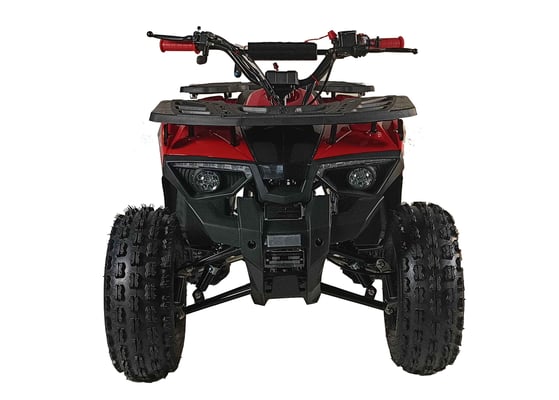

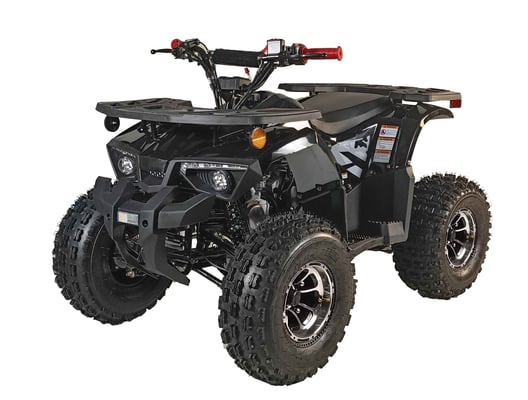

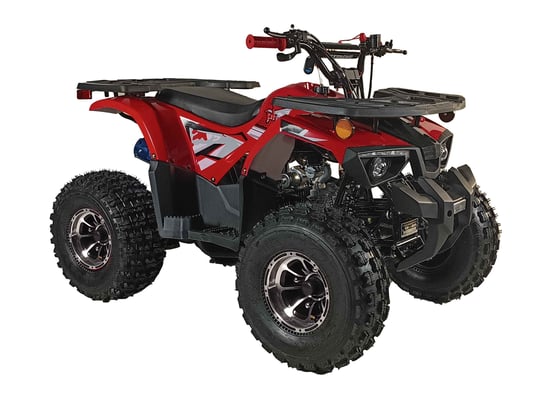

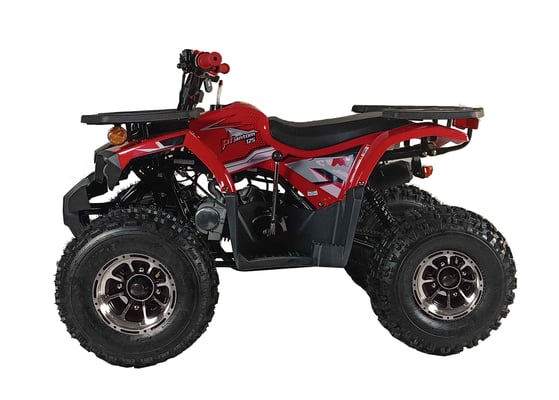

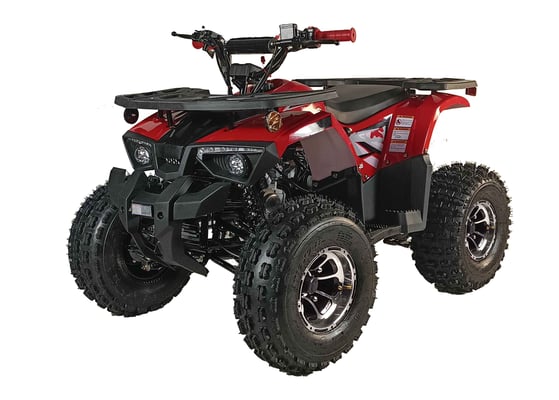

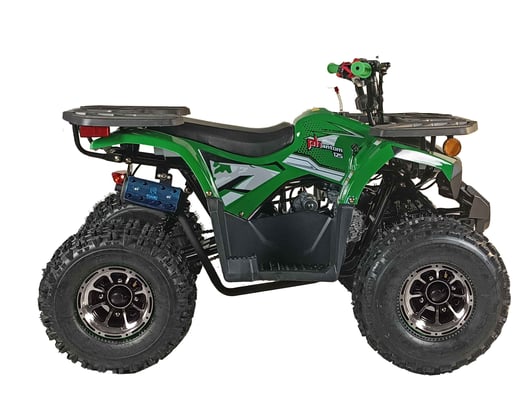

PHANTOM 125 with Aluminum Rims
Specifications
| ENGINE | |
| Type | 125cc,风冷(Air cooled),4冲程(4-stroke),单缸(1-cylinder) |
| Bore x Stroke | 52.4mmX55.5mm |
| Compression Ratio | 9.1:1 |
| Carburetor | PZ20 |
| Ignition | CDI |
| Starting Time | (Electric start) |
| Transmission | (R-N-F) |
| Drive Train | (Chain Drive) |
| Max. Torque | 8.0N.m/5500r/min |
| Max. Power | 5.3kw/7500r/min |
| CHASSIS | |
| Suspension/Front | (Independent double swing arm) |
| Suspension/Rear | Single swing arm) |
| Brakes/Front | Drum） |
| Brakes/Rear | (Ventilated Hydraulic disc) |
| Tires/Front | 19 x 7-8半径(19x 7-8 radial) |
| Tires/Rear | 18x 9.5-8半径(18x9.5-8radial) |
| DIMENSIONS | |
| L x W x H | 1440mmX940mmX940mm |
| Seat Height | 710mm |
| Wheelbase | 960mm |
| Ground Clearance | 135mm |
| Front track | 760mm |
| Rear track | 670mm |
| Battery | 12V/5Ah |
| Fuel Capacity | 2L |
| Dry Weight | 106KG |
| Max. Load | 75KG |
| Package Size | 53.9X30.3X24.8 IN |
| Loading Quantity | 96台/40高柜 (96pcs/40HQ) |
| MAIN PERFORMANCE | |
| Max. Speed | 48km/h |
| Fuel Consumption | 2.6L/100kg |
| Starting Time | ≤15s |
| Brake distance | 30km/h≤6.5m |
AGE REQUIREMENT: (Y12) 12 years old and up
