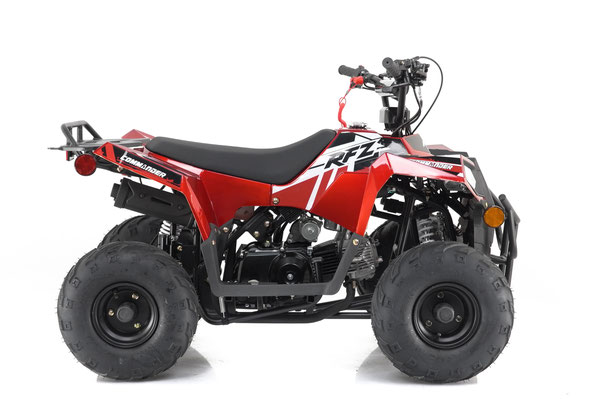

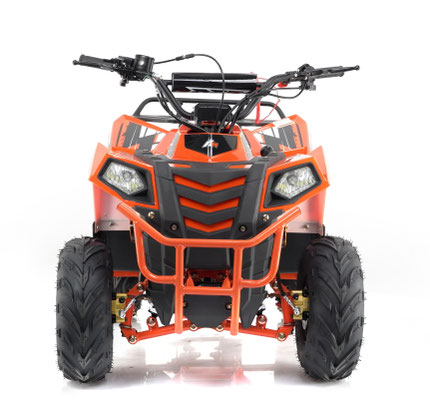

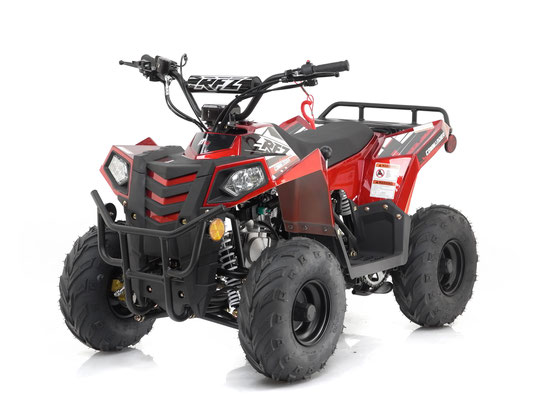

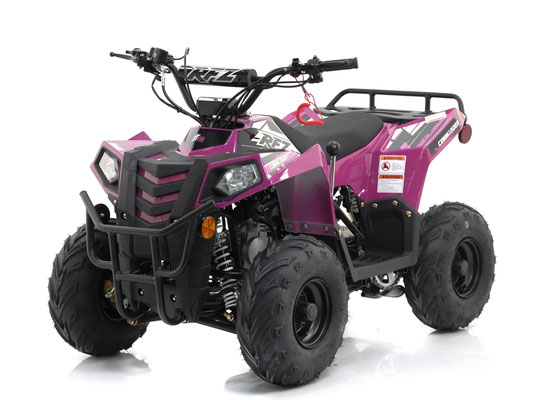

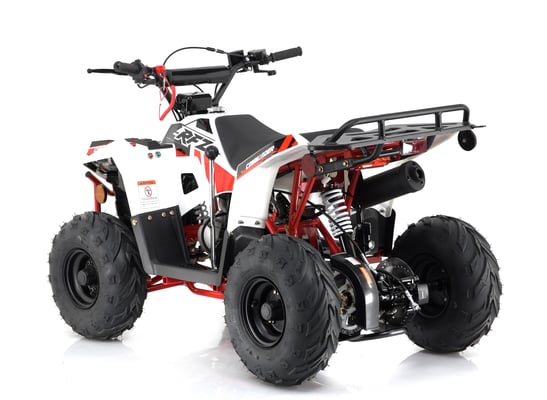

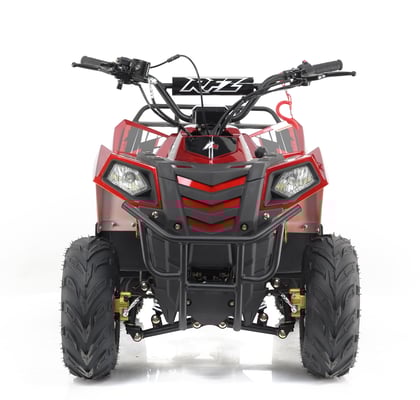

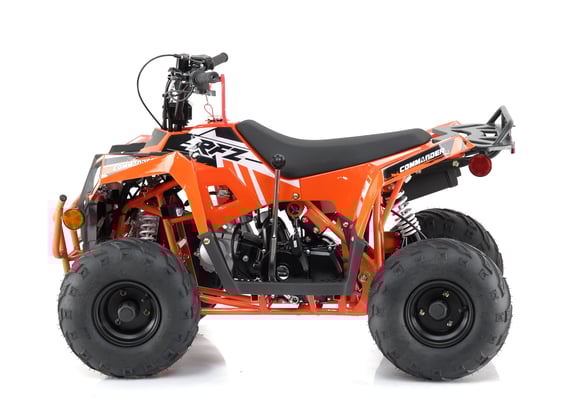

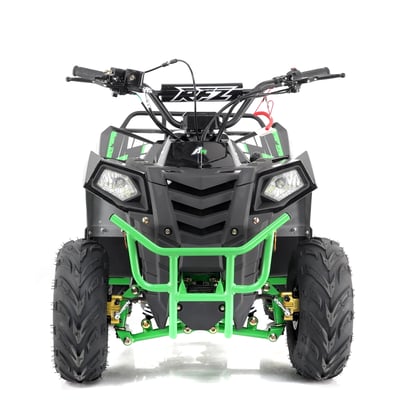

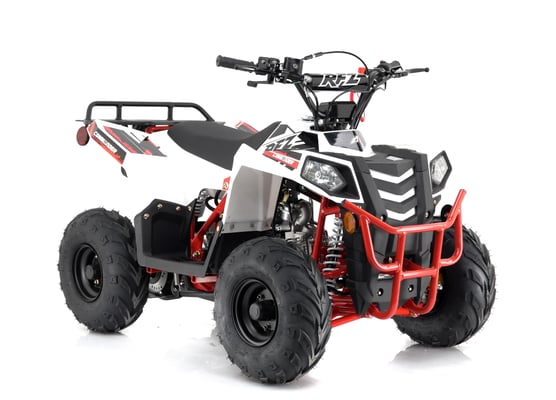

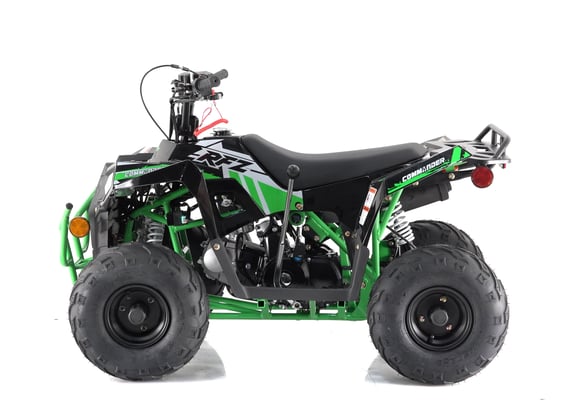

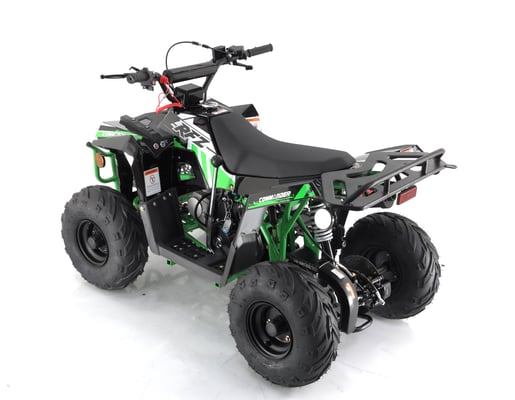

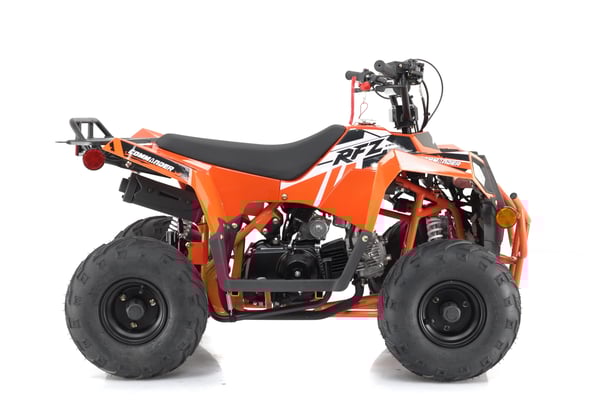

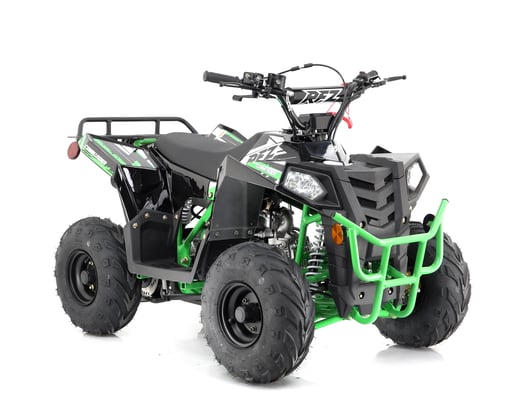

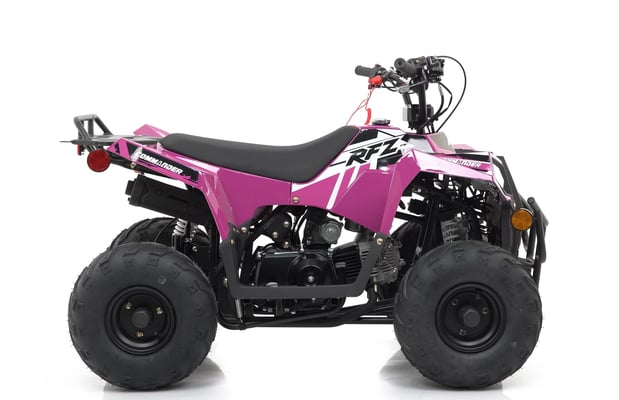

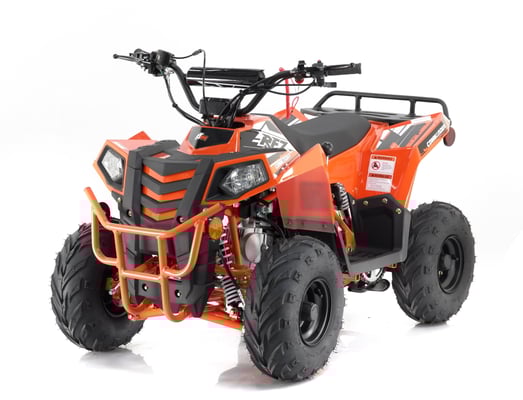

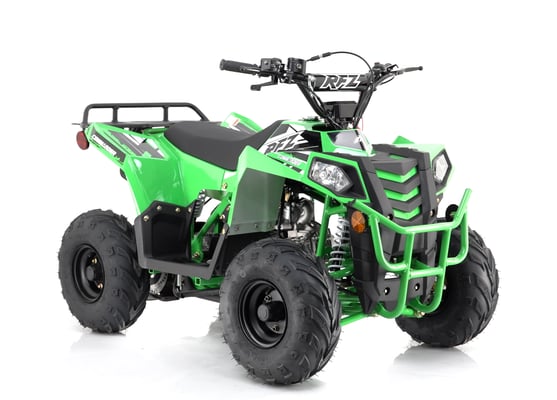

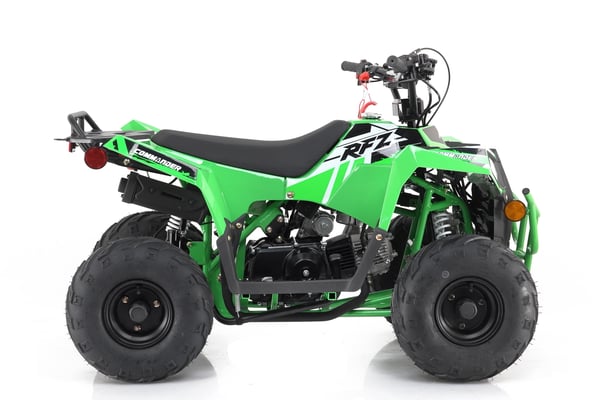

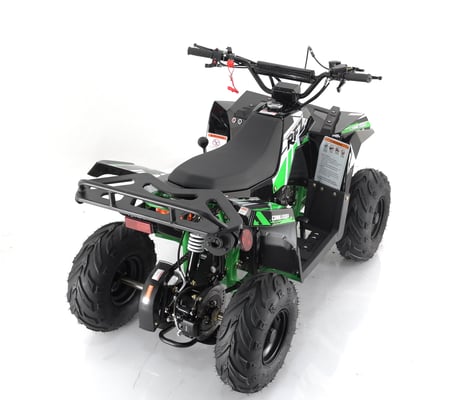

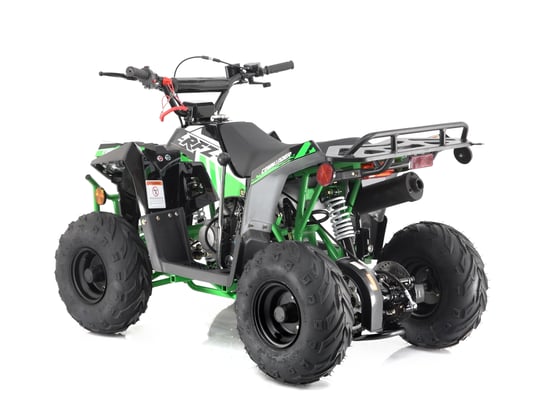

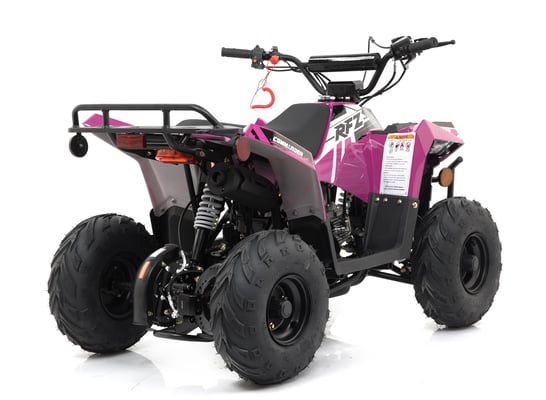

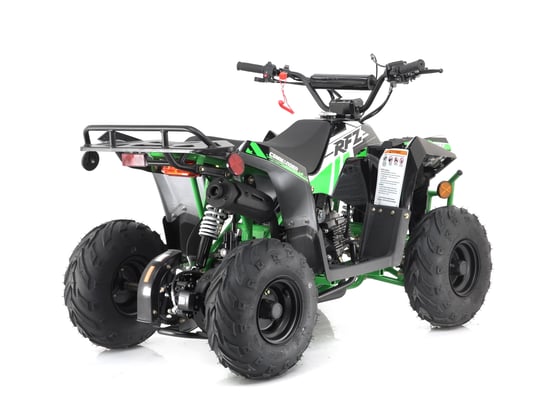

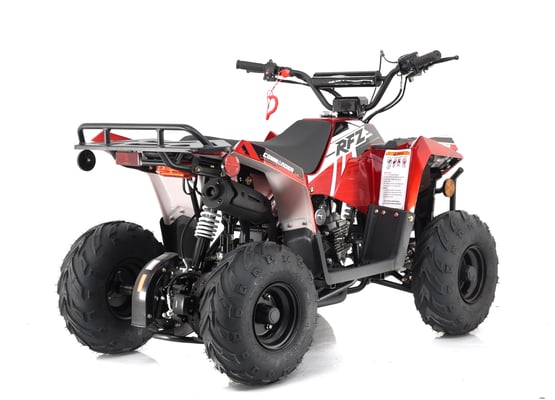

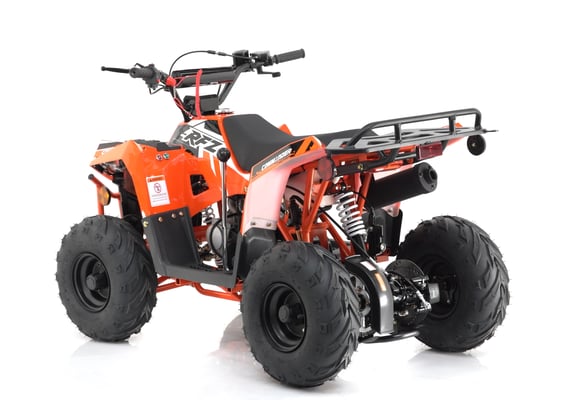

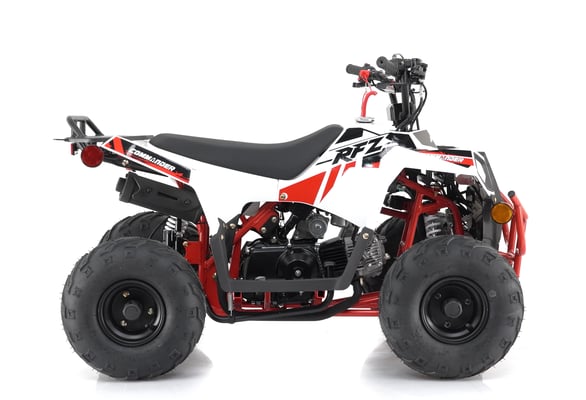

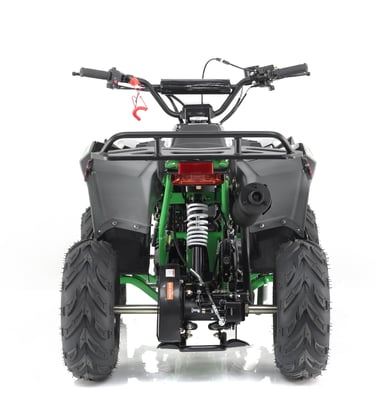

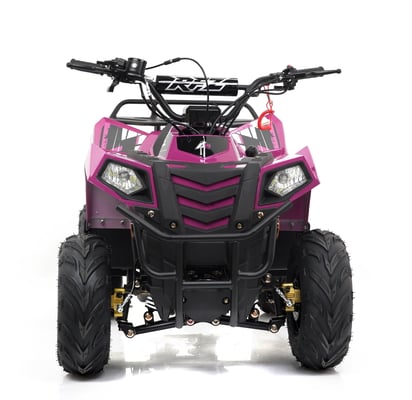

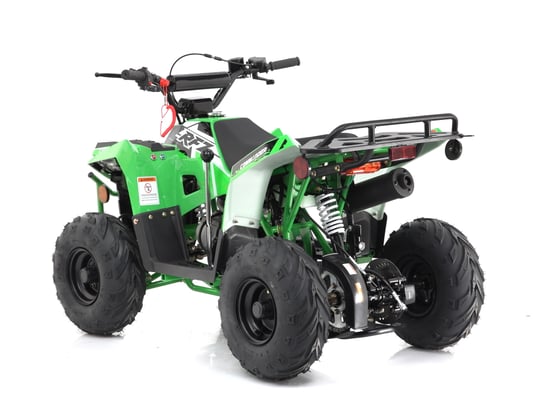

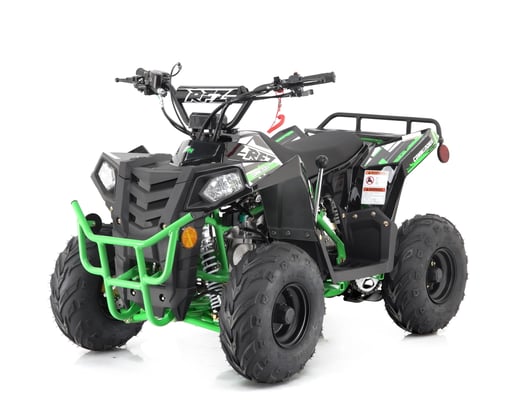

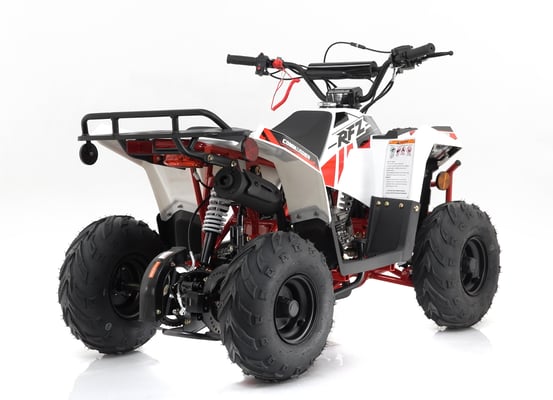

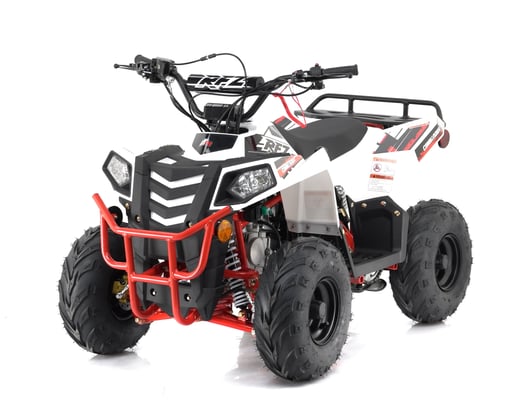

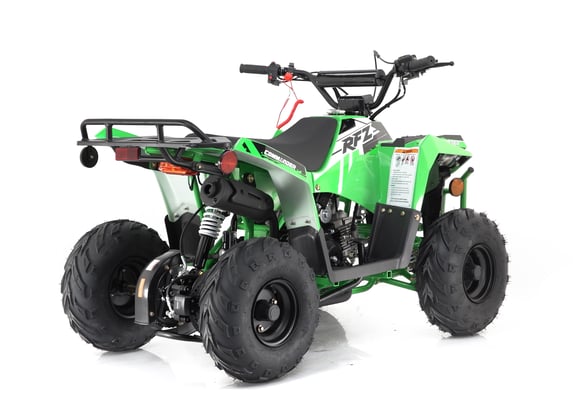

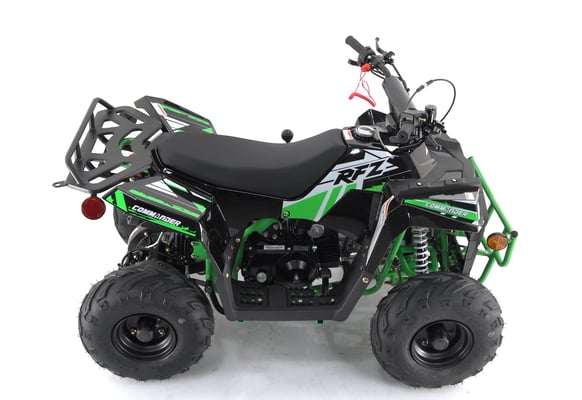

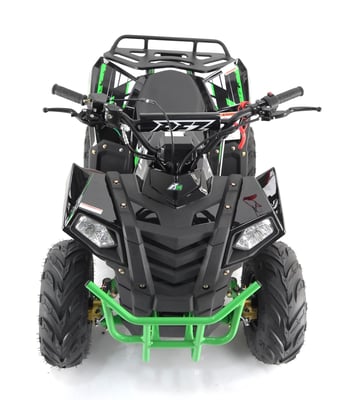

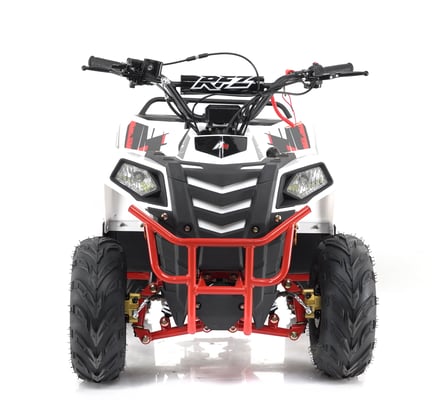

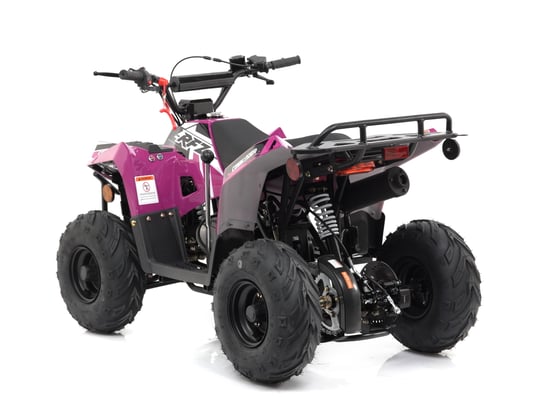

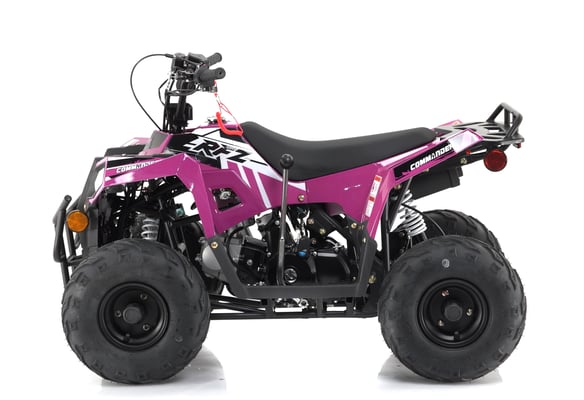

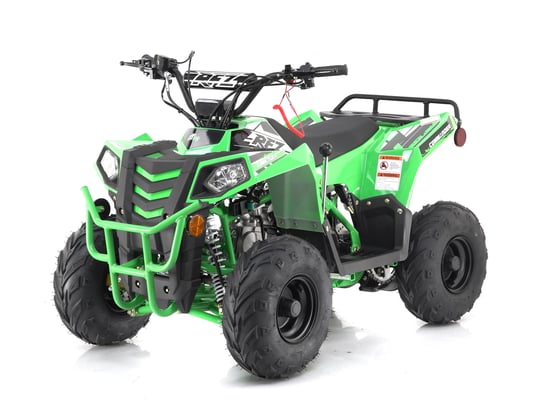

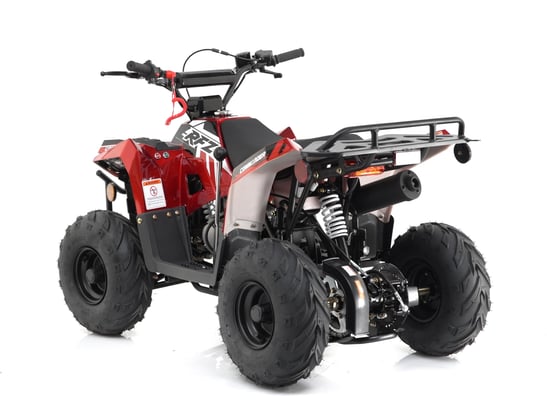

MINI COMMANDER 110
MINI COMMANDER 110 6" specification
| Model name | AGA-10 |
| EPA Model | VRX110-10-A1 |
| Vichel Class | Y6+ class |
| Overall dimensions （L×W×H） | 1200mm×745mm×785mm |
| Wheel base | 805mm |
| front wheel distance | 615mm |
| rear wheel distance | 550mm |
| ground clearance | 90mm |
| Seat height | 580mm |
| Curb weight | 86kg |
| rated load mass | 70kg |
| Max speed | 24km/h |
| minimum turning radius | 2500mm |
| maximum gradability | 10° |

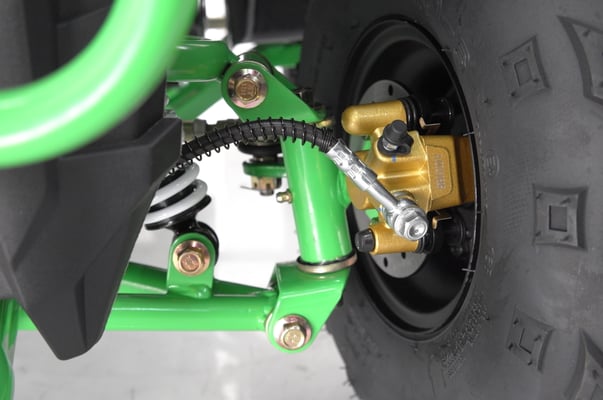

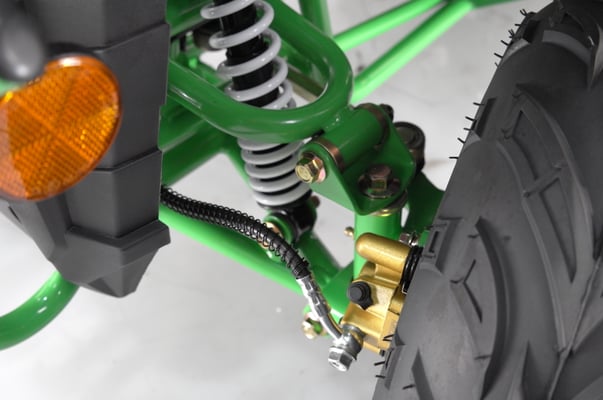

| front brake type | front hydraulic brake |

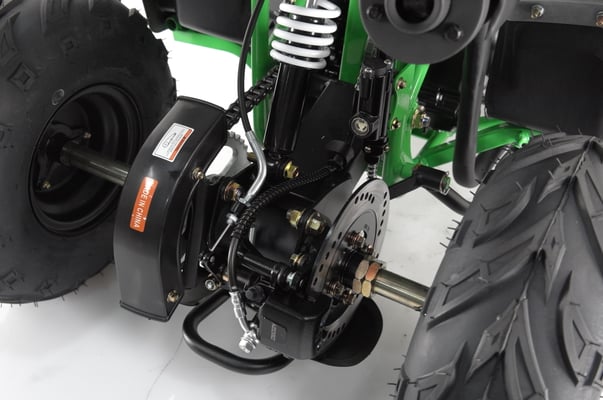

| rear brake type | rear hydraulic brake（with parking brake） |

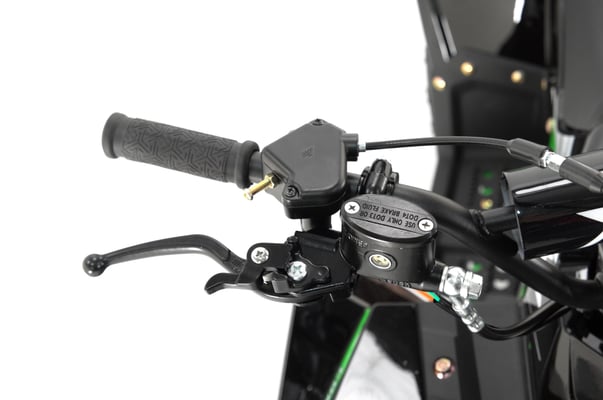

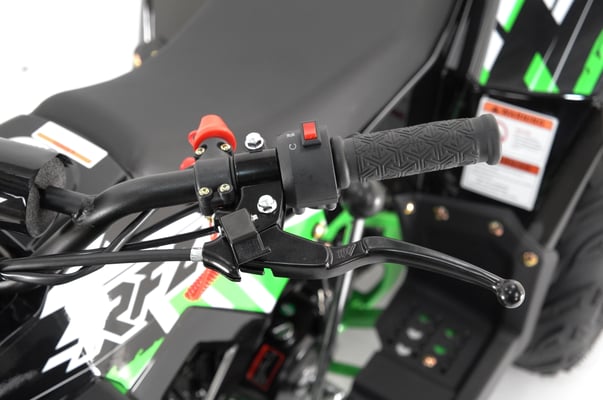

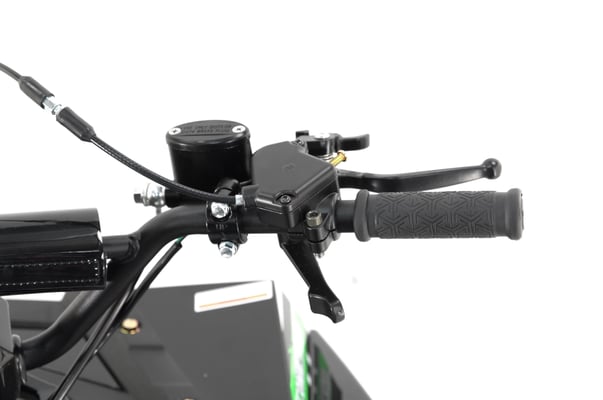

| brake operation | Front hydraulic brake by hand , rear hydraulic brake by foot pedal |
| front rim | steel |
| rear rim | steel |
| front tire size | 145/70-6 |
| rear tire size | 145/70-6 |
| front tire air pressure | 10P.S.I. |
| rear tire air pressure | 10P.S.I. |
| transmission | Chain |
| packing size | 1140mm×700mm×585mm |
| Net weight | 75kg |
| Gross weight | 88kg |
| Loadign quantity | 136pcs/40'HQ |
| Transmission type | Semi-automatic 1+R |
| Engine type | 4 stroke,Single cylinder , air cooling |
| displacement | 106.7cc |
| Bore×Stroke | 52.4mm×49.5mm |
| Max power | 5.0kW/7500rpm |
| Max torque | 7.0N.m/5500rpm |
| ignition | CDI |
| start | electric start |
| fuel grade | RQ-93 |
| Lubrication | Pressure and splash lubrication |
| Engine oil grade | SAE15W/40 |
