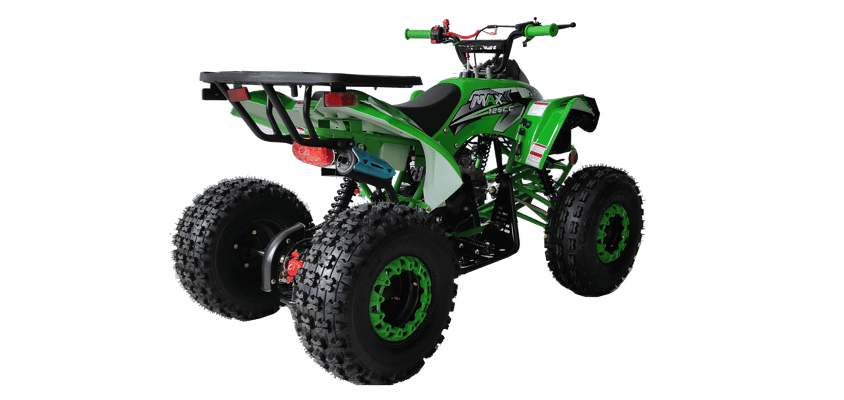

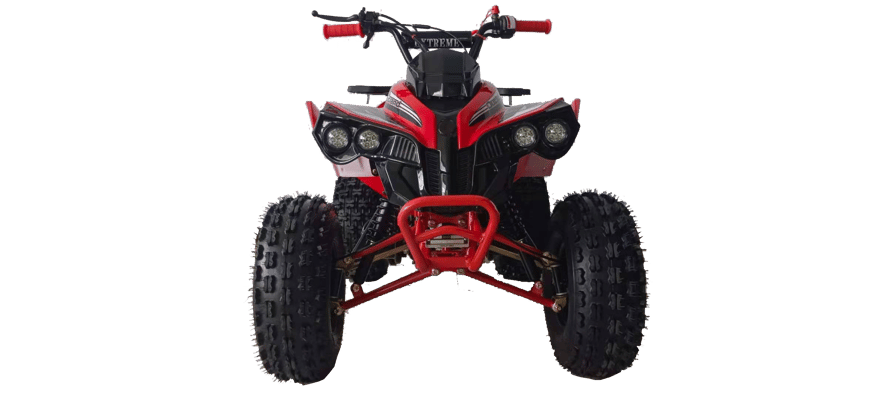

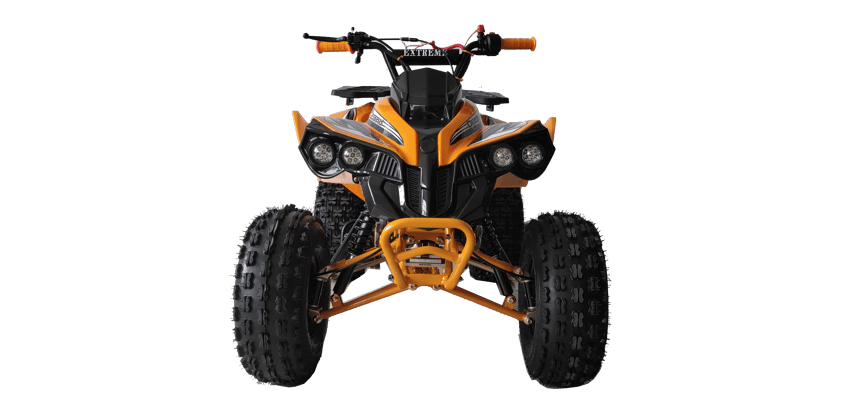

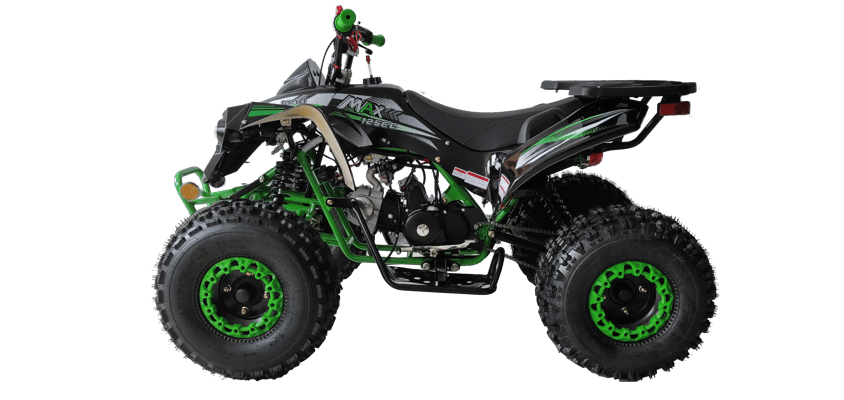

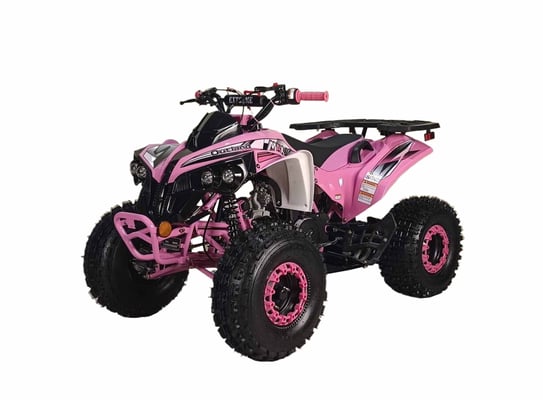

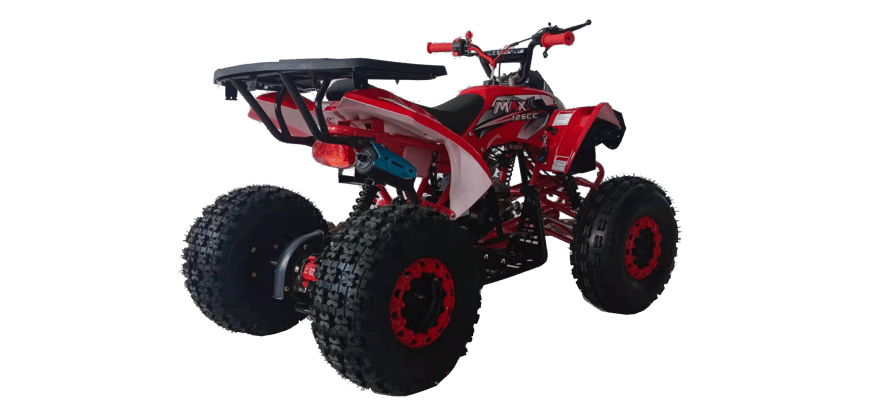

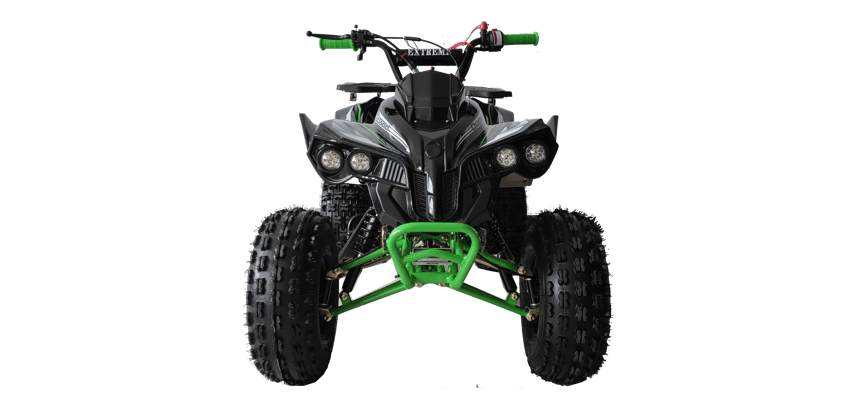

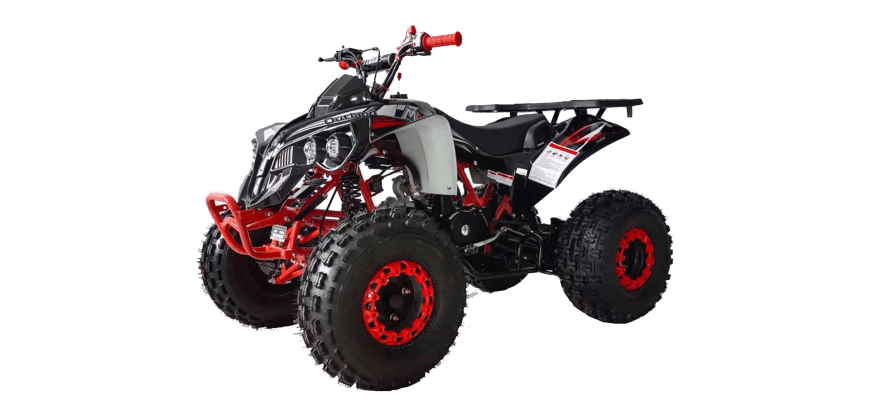

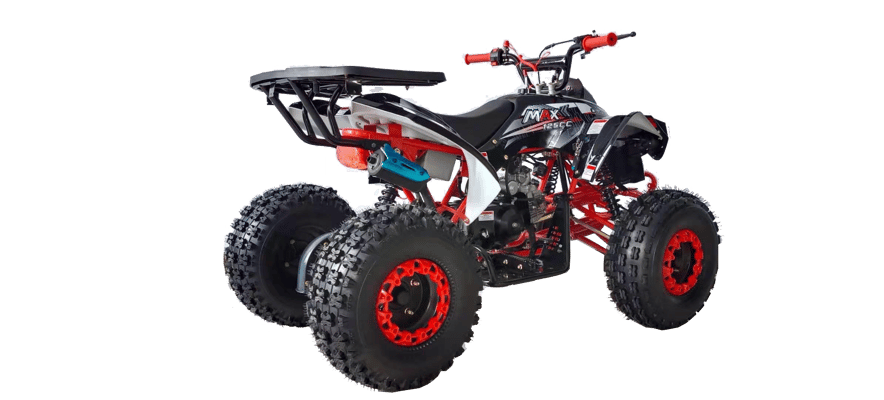

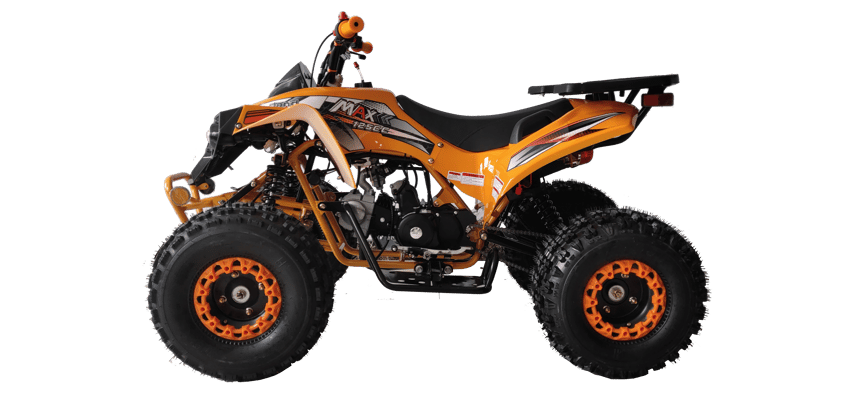

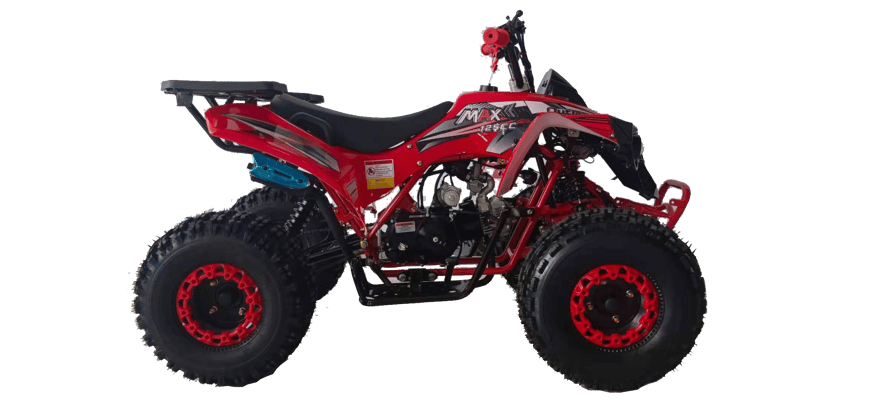

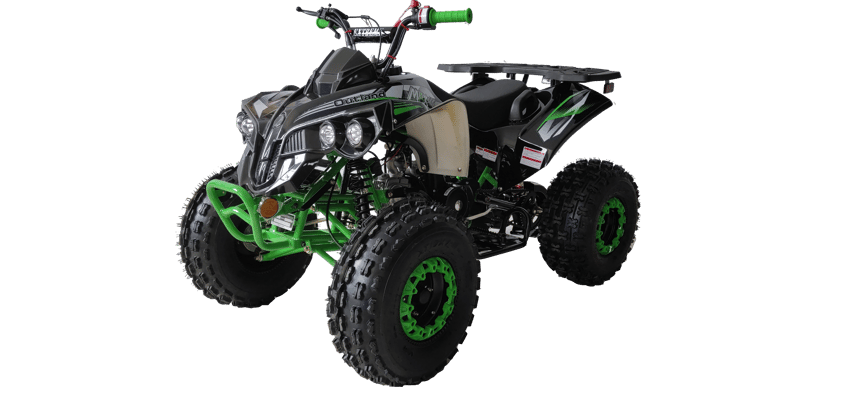

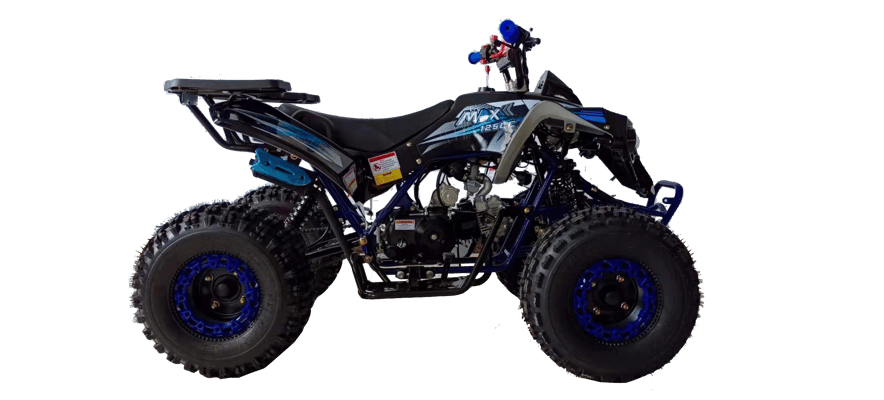

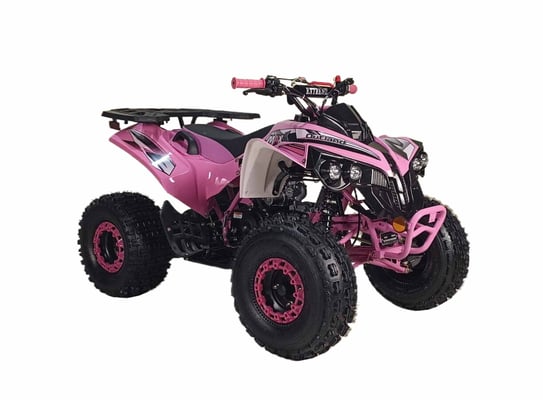

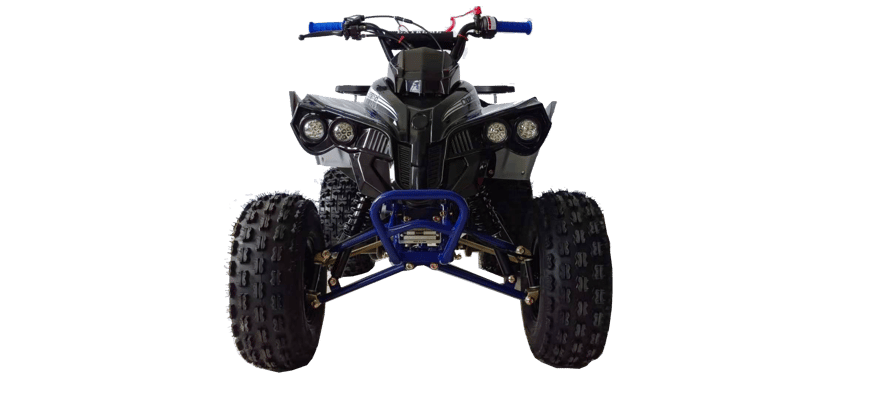

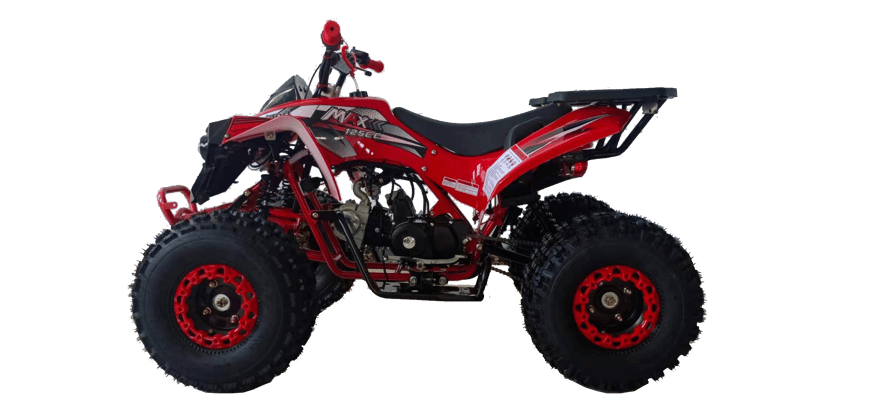

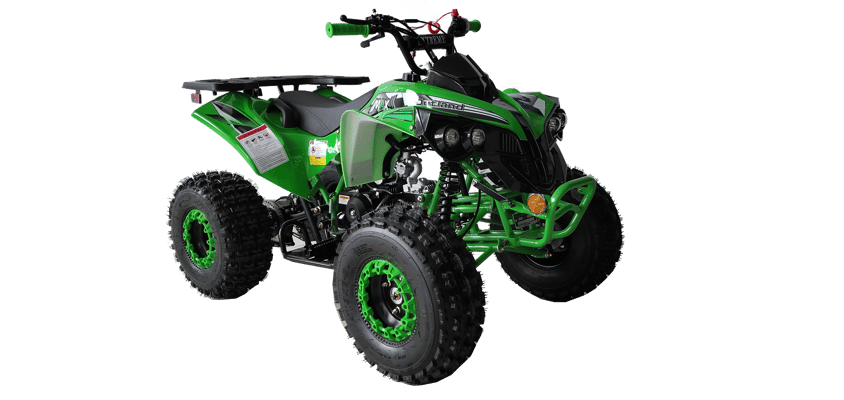

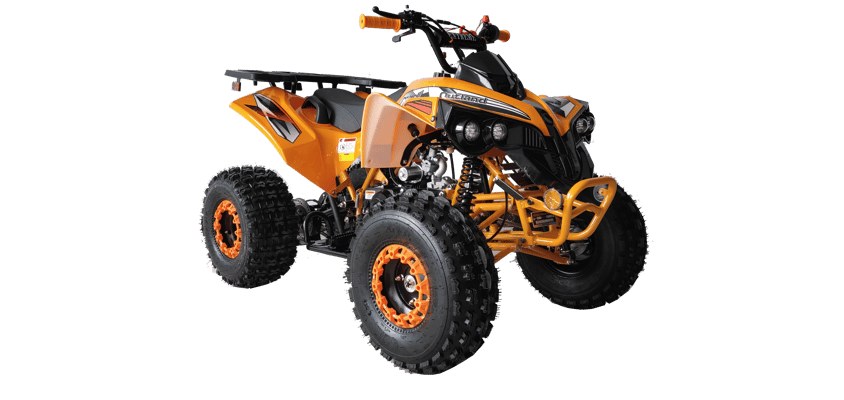

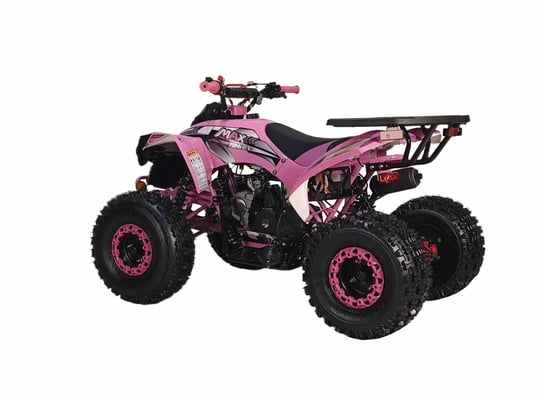

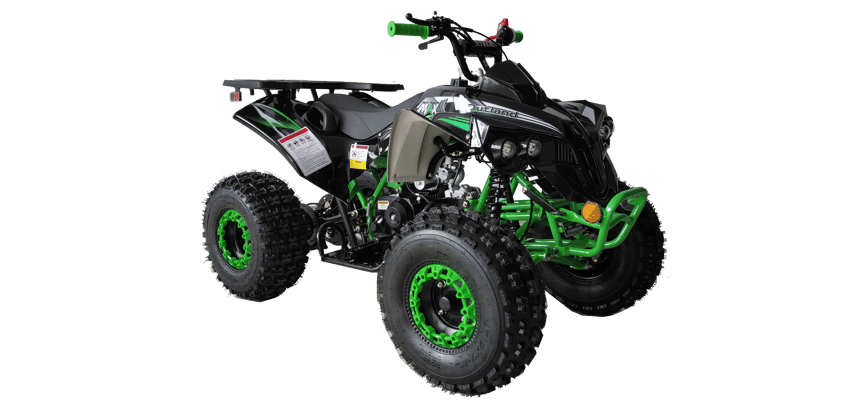

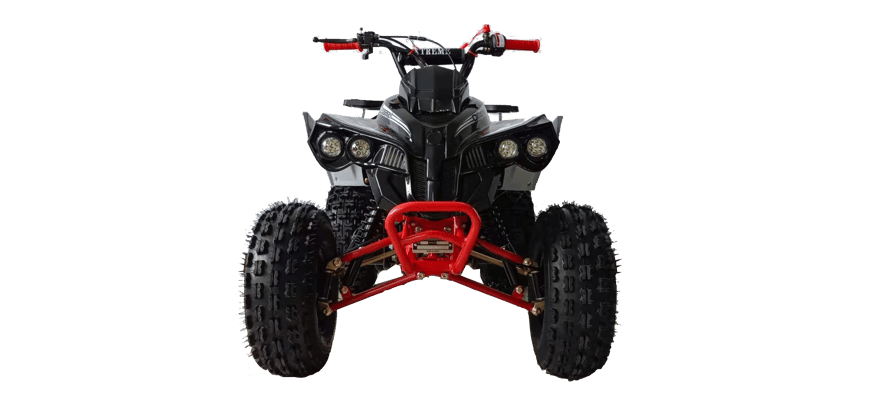

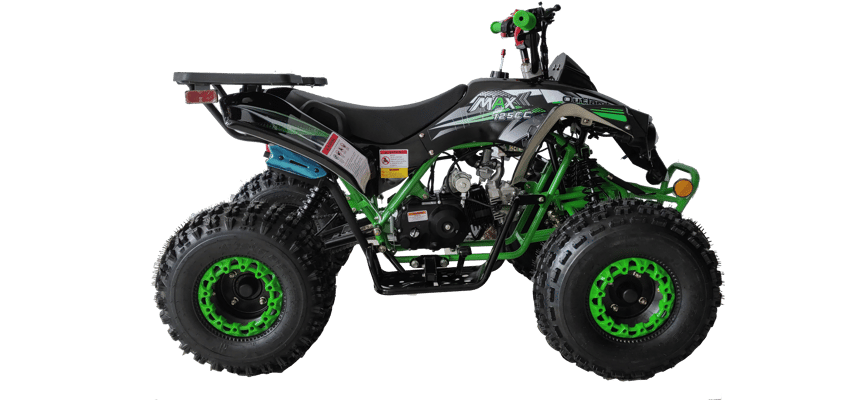

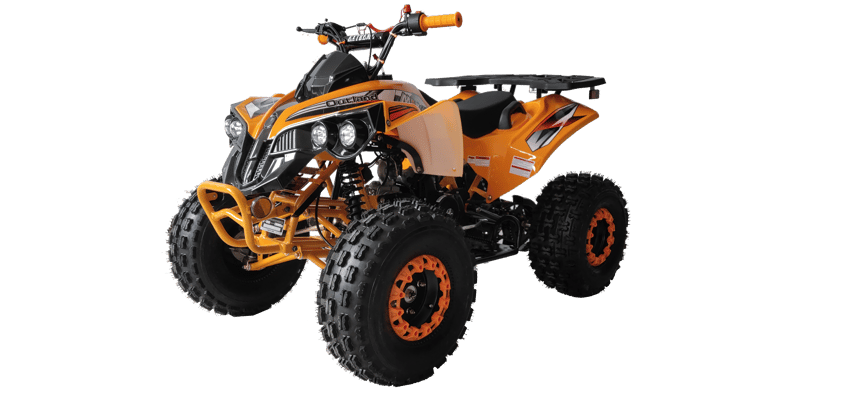

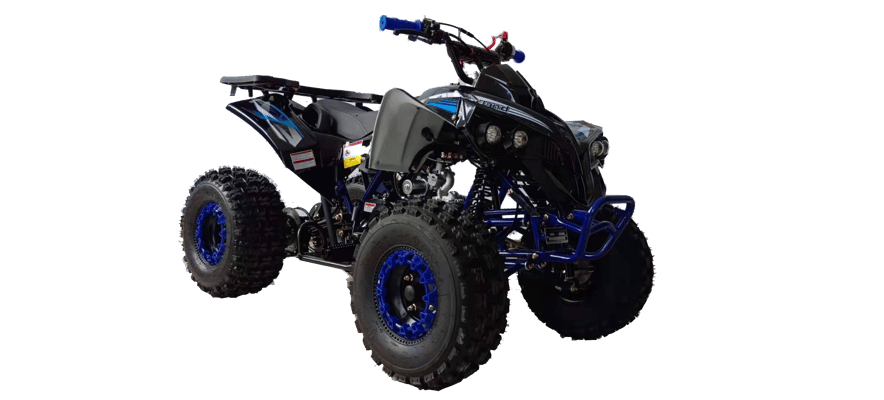

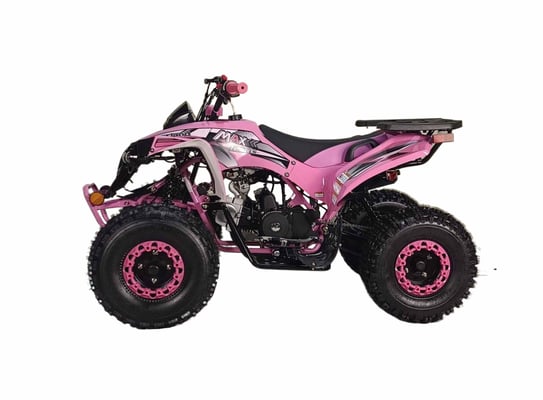

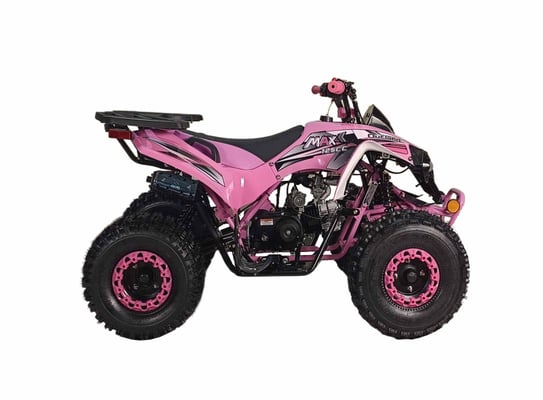

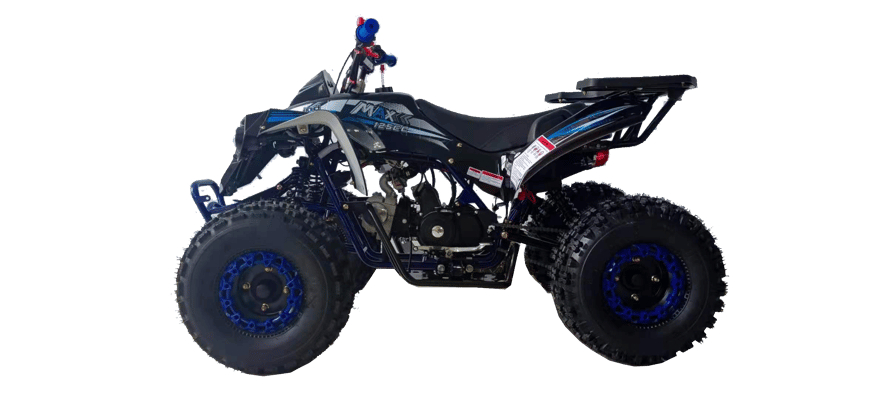

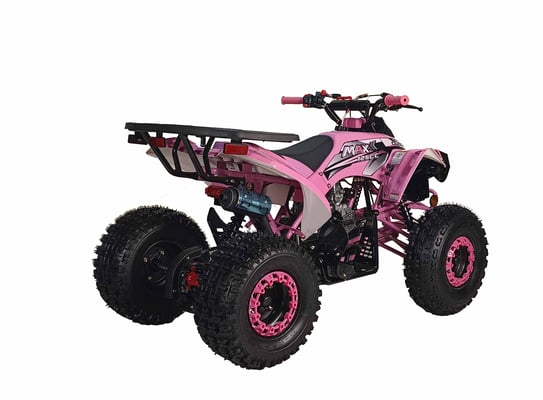

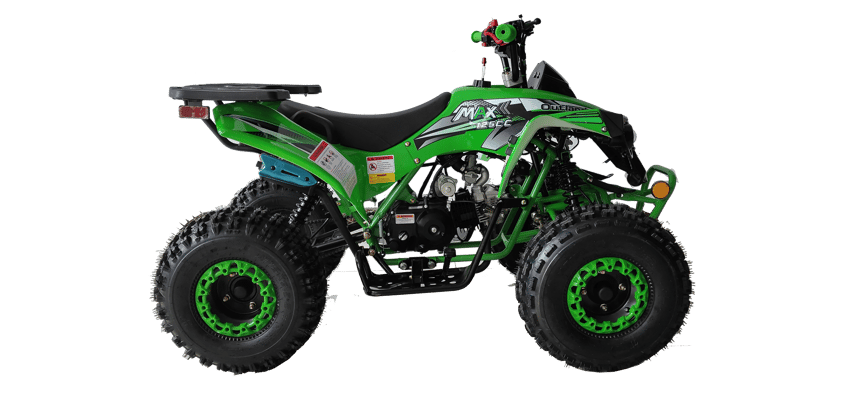

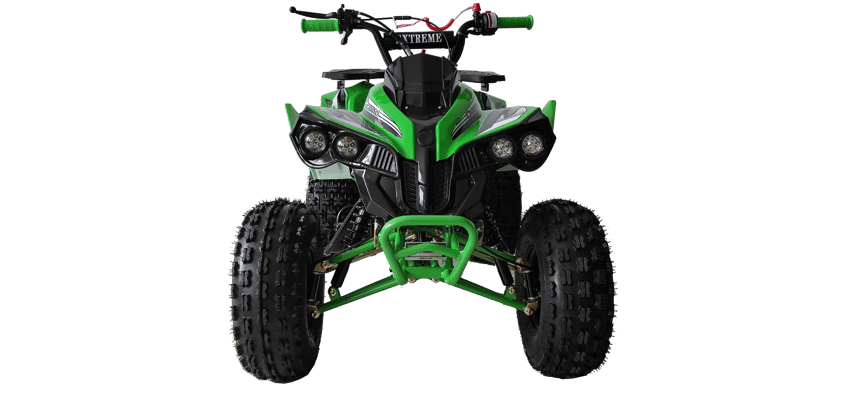

MAX 125cc
| 发动机ENGINE | ||
| 类型Type | 110cc/125cc,风冷(Air cooled),4冲程(4-stroke),单缸(1-cylinder) | |
| 缸径Bore x Stroke | 52.4mmX49.5mm/52.4mmX55.5mm | |
|
9.1:1 | |
| 化油器Carburetor | PZ20 | |
| 点火Ignition | CDI | |
| 启动方式Starting Time | 电启动(Electric start) | |
| 传动Transmission | 倒档-空档-前进(R-N-F) | |
| 驱动系统Drive Train | 链驱动(Chain Drive) | |
| 最大扭矩Max. Torque | 7.0N.m/6000r/min/8.0N.m/5500r/min | |
| 最大功率Max. Power | 4.8kw/7500r/min/5.3kw/7500r/min | |
| 车架CHASSIS | ||
| 前悬挂Suspension/Front | 独立双摆臂(Independent double swing arm) | |
| 后悬挂Suspension/Rear | 单摆臂(Single swing arm) | |
| 前刹车Brakes/Front | 鼓刹（Drum） | |
| 后刹车Brakes/Rear | 通风液压碟刹(Ventilated Hydraulic disc) | |
| 前轮Tires/Front | 19 x 7-8半径(19x 7-8 radial) | |
| 后轮Tires/Rear | 18x 9.5-8半径(18×9.5-8radial) | |
| 尺寸DIMENSIONS | ||
| 长，宽，高L x W x H | 1580mmX940mmX950mm | |
| 座高Seat Height | 620mm | |
| 轴距Wheelbase | 1020mm | |
| 最小离地间隙Ground Clearance | 135mm | |
| 前轮距 | 760mm | |
| 后轮距 | 670mm | |
| 电瓶Battery | 12V/5Ah | |
| 油箱容量Fuel Capacity | 2L | |
| 净重Dry Weight | 112.7KG | |
| 最大载重Max. Load | 75KG | |
| 包装尺寸Package Size | 57.8X30.3X25.6 IN | |
| 装柜量Loading Quantity | 96台/40高柜 (96pcs/40HQ) | |
| 主要性能MAIN PERFORMANCE | ||
| 最大速度Max. Speed | 48km/h | |
| 油耗Fuel Consumption | 2.6L/100kg | |
| 启动时间Starting Time | ≤15s | |
| 制动距离Brake distance | 30km/h≤6.5m | |
AGE REQUIREMENT: (Y12) 12 years old and up
